CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Standard: | CB/T 435-2005 | Type: | Type B Inner Board Deck Mounted |
|---|---|---|---|
| Roller Diameters: | 200 & 250 Mm | Weight: | 123.5 & 197.5 Kg |
| Materials: | C-Mn Steel, Mild Steel, Stainless Steel | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished, Galvanized, Customized Surface Treatment Available. |
| Classification Certificates: | Maker’s Certificate, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc | ||
| Highlight: | Inboard Horizontal Roller Fairlead |
||
Product Description

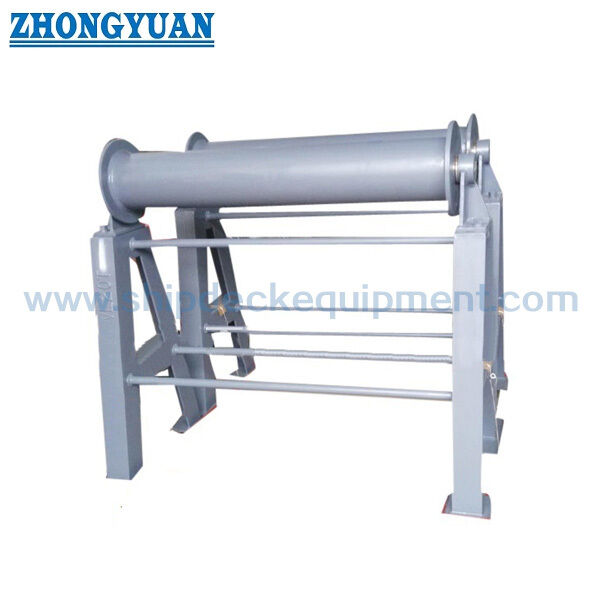

CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
Description

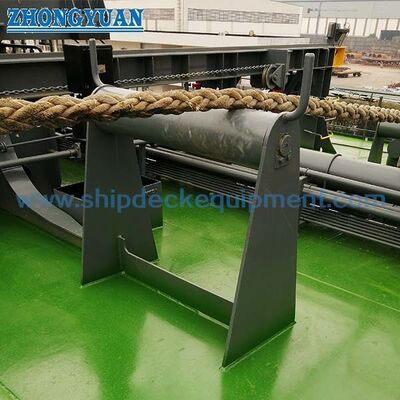

This type of fairlead is deck mounted, and positioned inner board. Normally it used together with middle ship mooring winch and leading the PP rope to the overboard roller fairlead. It is widely used on all kinds of ship. Our fairleads reach the international standard and obtain the certificate of quality. We can also provide Fiber Reinforced Plastics fairleads and the customized fairleads for our customers.
Main Technical Specification:
- Standard: CB/T 435-2005
- Type: Type B inner board deck mounted;
- Roller diameters: 200 & 250 mm;
- Weight: 123.5 & 197.5 kg
- Materials: C-Mn Steel, Mild Steel, Stainless Steel
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates:Maker’s certificate, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, etc.
Main Technical Parameters:
| Nominal Diameter | D | D1 | T | T1 | h | B | L | L1 | L2 | H | Frame L Bar |
SWL kN |
Weight kg |
| 200 | 200 | 300 | 10 | 14 | 175 | 240 | 600 800 1000 1200 |
L+44 | 1500 | 10 X 100 X 10 | 100 | 123.5 | |
| 250 | 250 | 350 | 12 | 19 | 200 | 300 | L+54 | 125 X 125 X 14 | 210 | 197. 5 | |||
| Note: Weight is calculated on L=800mm, H=1 200mm | |||||||||||||
Drawing of CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
