CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Type: | Open Type | Roller Diameters: | 150~450mm |
|---|---|---|---|
| Roller No.: | Single Roller | Roller Weight: | 24.8~310kg |
| Materials: | Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available. |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc. | ||
| Highlight: | CB/T 3861 Casting Steel Roller Button,Ship Mooring Equipment Roller Button,Customized Ship Roller Button |
||
Product Description

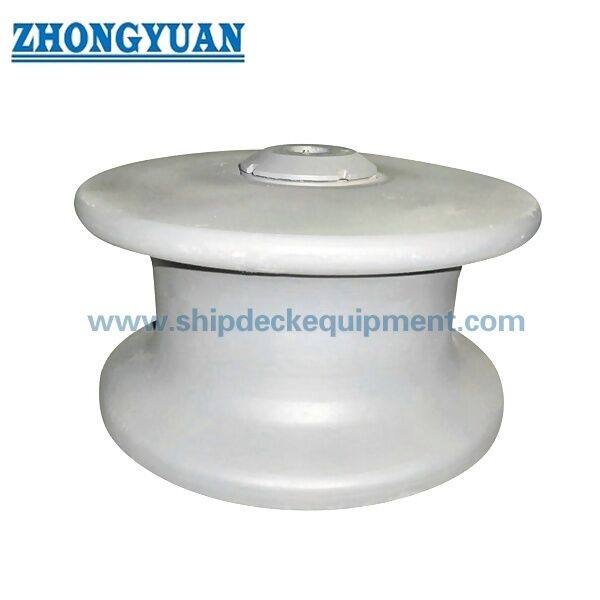

CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment
Description:
CB/T 3861 type B casting steel roller button is similar as NS 2585 roller. It is made of casting steel and stainless casting steel is also available. The center bearing is either stainless steel or copper or bronze. It is very easy for maintenance and easy to add grease oil to keep the roller always moving smoothly.
Main Technical Specification:
1. Type: Open type
2. Roller Diameters: 150~450mm
3. Roller No.: Single roller
4. Roller Weight:24.8~310kg
5. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron
6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
8. Can be Customized
Main Technical Parameter:
| Roller Diameter D |
SWL KN |
Maximum Diameter of cable | Size | Weight kg |
||||||||
| PP Rope | SWR Tensile strength of steel wire rope 1770MPa, 6x37 |
D1 | D2 | H | h | d | S | k | K1 | |||
| 150 | 127 | 32 | 16 | 240 | 90 | 154 | 130 | 80 | 5 | 9 | 7 | 24.8 |
| 200 | 191 | 40 | 20 | 310 | 115 | 186 | 162 | 100 | 10 | 8 | 49.3 | |
| 250 | 274 | 45 | 24 | 380 | 135 | 230 | 202 | 120 | 6 | 92 | ||
| 300 | 323 | 50 | 28 | 440 | 155 | 255 | 226 | 130 | 7 | 13 | 10 | 127 |
| 350 | 431 | 55 | 34 | 500 | 175 | 271 | 242 | 150 | 168 | |||
| 400 | 559 | 65 | 40 | 560 | 185 | 307 | 278 | 160 | 14 | 12 | 252 | |
| 450 | 617 | 80 | 44 | 630 | 210 | 316 | 287 | 180 | 310 | |||
Drawings of CB/T 3861 Type B Casting Steel Roller Button Ship Mooring Equipment
