JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment

Product Details:

Place of Origin: China
Brand Name: Zhongyuan Marine Equipmen
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Model Number: Standard or Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Based on quotation
Packaging Details: Export standard pallet or customized packing
Delivery Time: Based on project requirements
Payment Terms: T/T, L/C
Supply Ability: Customized production based on project requirements
Get Best Price Contact Now

Detail Information
Standard: JIS F 2001 Type B SWL Range: 29KN- 981KN
Materials: C-Mn Steel, Stainless Steel, Also Can Supply Special Steel For Icebreaker Nominal Diameters: 100 To 800mm
Weight: 18.9 To 3071 Kg Surface Treatment: Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available.
Classification Certificates: CCS, NK, BV, ABS, DNV, LR, KR, RINA, IRS, RS, Etc
Highlight:

JIS F 2001-1990 boat mooring bollard

,

boat mooring bollard

,

JIS F 2001-1990 Ship Mooring Equipment

Product Description

JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment



Description:

JIS F2001 bollard is made for ship use according to Japanese Industrial Standard. Its appearance is free from defects such as cracks, flaw detrimental to service or rust and of good finish. Its applicable ropes are wire rope, manila and sisal fiber rope, synthetic rope for your reference.



Main Technical Specification

  1. SWL Range: 29KN- 981KN.
  2. Materials: C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker.
  3. Nominal Diameters: 100 to 800mm;
  4. Weight: 18.9 to 3071 kg;
  5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
  6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.



Main Technical Parameters:

Nominal Dia.

SWL

(KN)

 Weight(kg) Size(mm)
A B C D Φ
100 29 18.9 196 250 165 445 114.3
125 39 29.4 246 315 195 540 139.8
160 49 44.7 316 400 225 670 165.2
200 78 79.5 378 500 290 860 216.3
250 118 139 470 630 360 1065 267.4
315 196 261 597 800 430 1300 318.5
355 255 361 663 890 480 1475 355.6
400 314 502 749 1000 550 1630 406.4
450 382 685 841 1130 620 1840 457.2
500 451 911 928 1250 690 2040 508.0
560 549 1208 1025 1380 750 2240 558.8
630 686 1601 1152 1570 820 2510 609.6
710 804 2252 1294 1750 960 2840 711.2
800 981 3071 1480 2000 1100 3240 812.8

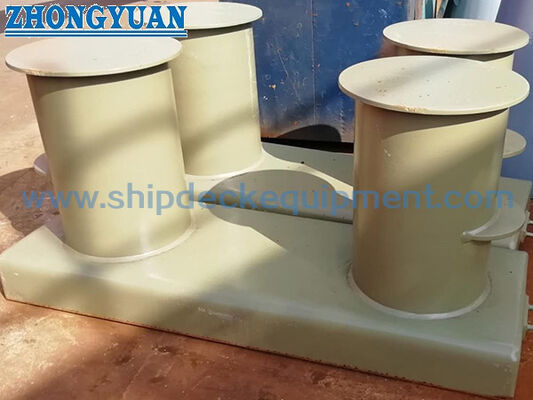

   JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment 0

Drawing of JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment

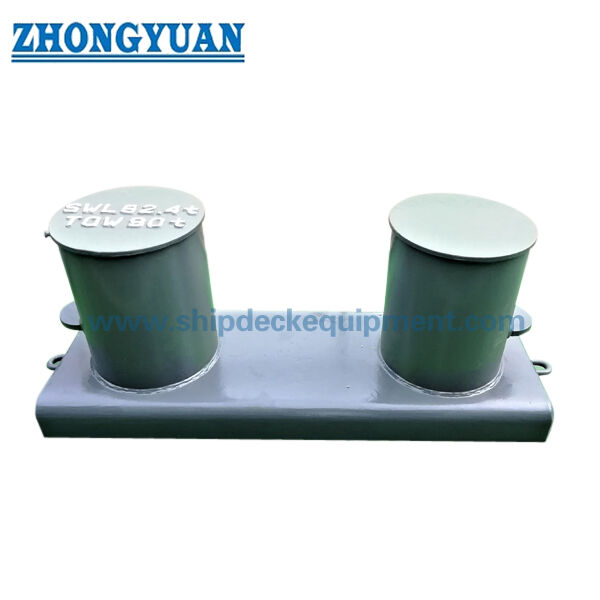

JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment 1



JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment 2
