JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| SWL Range: | 29KN- 981KN | Materials: | C-Mn Steel, Stainless Steel, Also Can Supply Special Steel For Icebreaker |
|---|---|---|---|
| Nominal Diameters: | 100 To 800mm | Weight: | 18.9 To 3071 Kg |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc |
| High Light: | JIS F 2001-1990 boat mooring bollard,boat mooring bollard,JIS F 2001-1990 Ship Mooring Equipment |
||
Product Description

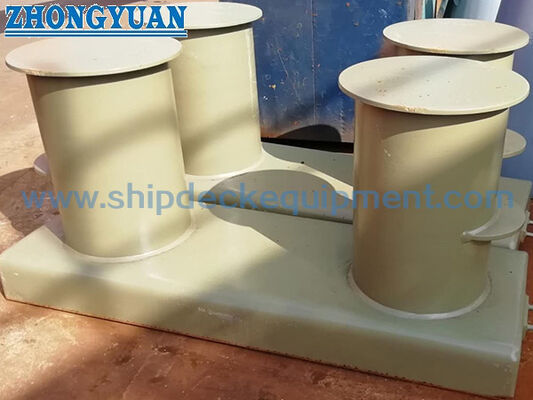

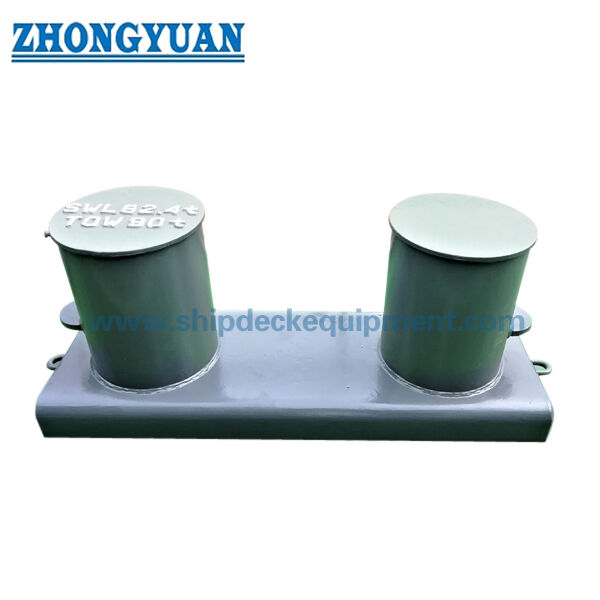

JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment
Description:
JIS F2001 bollard is made for ship use according to Japanese Industrial Standard. Its appearance is free from defects such as cracks, flaw detrimental to service or rust and of good finish. Its applicable ropes are wire rope, manila and sisal fiber rope, synthetic rope for your reference.
Main Technical Specification
- SWL Range: 29KN- 981KN.
- Materials: C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker.
- Nominal Diameters: 100 to 800mm;
- Weight: 18.9 to 3071 kg;
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameters:
| Nominal Dia. |
SWL (KN) |
Weight(kg) | Size(mm) | ||||
| A | B | C | D | Φ | |||
| 100 | 29 | 18.9 | 196 | 250 | 165 | 445 | 114.3 |
| 125 | 39 | 29.4 | 246 | 315 | 195 | 540 | 139.8 |
| 160 | 49 | 44.7 | 316 | 400 | 225 | 670 | 165.2 |
| 200 | 78 | 79.5 | 378 | 500 | 290 | 860 | 216.3 |
| 250 | 118 | 139 | 470 | 630 | 360 | 1065 | 267.4 |
| 315 | 196 | 261 | 597 | 800 | 430 | 1300 | 318.5 |
| 355 | 255 | 361 | 663 | 890 | 480 | 1475 | 355.6 |
| 400 | 314 | 502 | 749 | 1000 | 550 | 1630 | 406.4 |
| 450 | 382 | 685 | 841 | 1130 | 620 | 1840 | 457.2 |
| 500 | 451 | 911 | 928 | 1250 | 690 | 2040 | 508.0 |
| 560 | 549 | 1208 | 1025 | 1380 | 750 | 2240 | 558.8 |
| 630 | 686 | 1601 | 1152 | 1570 | 820 | 2510 | 609.6 |
| 710 | 804 | 2252 | 1294 | 1750 | 960 | 2840 | 711.2 |
| 800 | 981 | 3071 | 1480 | 2000 | 1100 | 3240 | 812.8 |
Drawing of JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment
