CB/T 3845-2000 Ships Single Cross Bitt Cruciform Bollard Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | CB/T 3845-2000 | SWL: | 117-686 KN |
|---|---|---|---|
| Nominal Diameters: | 150 To 350mm | Material: | Mild Steel; Stainless Steel |
| Weight: | 43 To 296kg | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA | ||
Product Description

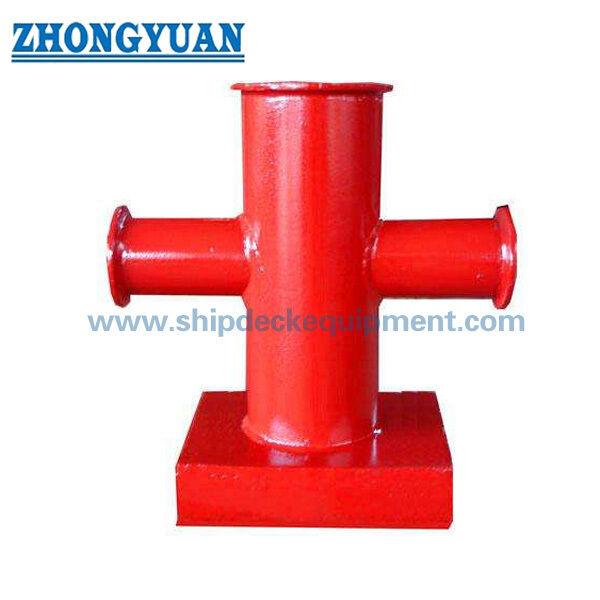

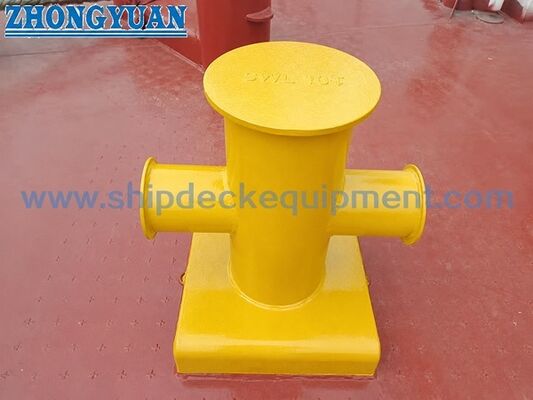

CB/T 3845-2000 Ships Single Cross Bitt Cruciform Bollard Ship Mooring Equipment
Description:
Cruciform Bollard is made of pipe or rolled steel plate. It is used on ship and boat upper deck for mooring purpose. It is not suitable for towing.We produce all kinds of bollard with mild steel, casting steel, stainless steel.
Main Technical Specification:
1. Technical Standard: CB/T 3845-2000
2. SWL: 117-686 KN
3. Nominal Diameters: 150 to 350mm;
4. Material: Mild Steel; Stainless Steel ;
5. Weight: 43 to 296kg;
6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
|
Nominal diameter |
Applicable maximum breaking load of cable kN | Applicable cable maximum diameter | H | B | H1 | D | D1 | D2 | |||
| wire cable | Synthetic fibre rope | ||||||||||
| 6×24 | 3×37 | ||||||||||
| 15O | 117 | 15. 0 | 13.0 | 30 | 480 | 460 | 280 | 148 | IH | 206 | |
| 200 | 255 | 22.S | 19. S | 4S | 560 | 520 | 320 | 219 | 168 | 260 | |
| 250 | 38Z | 28. 0 | 26. 0 | 56 | 6•0 | 610 | 360 | 273 | 219 | 310 | |
| 300 | 549 | 33.5 | 30.0 | 70 | 680 | 660 | 380 | 325 | 273 | 360 | |
| 350 | 686 | 37.5 | 34. 5 | 77 | 720 | 720 | 420 | 351 | 273 | 400 | |
|
Nominal diameter |
D3 | L×L | H2 | t | t 1 | t 2 | Foot Height | weight | |||
| k | K1 | K2 | K3 | ||||||||
| 150 | 158 | 250×250 | 70 | 10 | 9 | 8 | 8 | 6 | 5 | 4 | 42.4 |
| 200 | 210 | 300×300 | 85 | 14 | 10 | 10 | 10 | 8 | 4 | 82.2 | |
| 250 | 260 | 380×380 | 100 | 12 | 12 | 12 | 9 | 5 | 5 | 135.5 | |
| 300 | 310 | 480×480 | 125 | 16 | 14 | 14 | 13 | 11 | 211.8 | ||
| 350 | 314 | 550×550 | 145 | 20 | 14 | 11 | 295.8 | ||||
