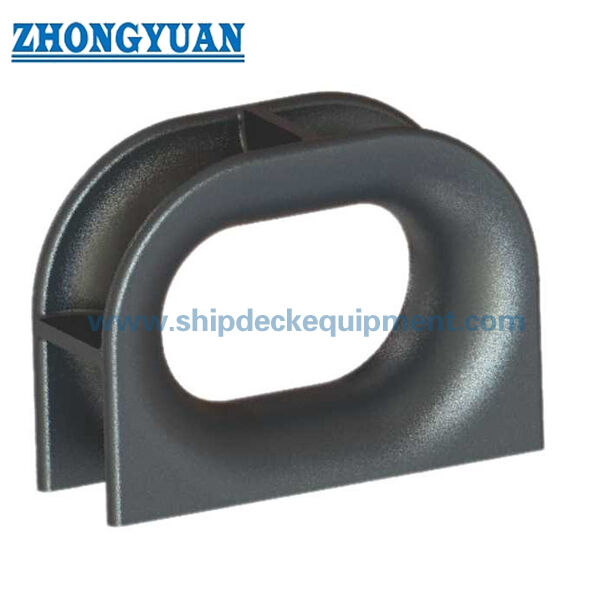

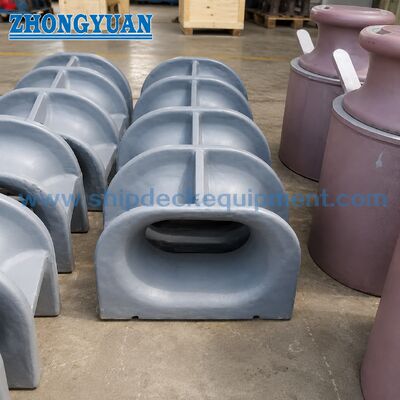

JIS F 2017-1982 Type AC Deck Mounted Casting Steel Panama Chocks Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard: | JIS F 2017-1982 | Type: | AC |
|---|---|---|---|
| SWL Range: | 30-100T | Materials: | Casting C-Mn Steel, Casting Stainless Steel, Also Can Supply Special Steel For Icebreaker |
| Weight: | 184 To 422kg | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available. |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS | ||
Product Description
JIS F 2017-1982 Type AC Deck Mounted Casting Steel Panama Chocks Ship Mooring Equipment
Description:
Panama chocks are popular as mooring equipment, which can stand great loads when mooring ships and vessels. Hi-sea can provide 4 types, among which JIS F 2017-1982 type AC, AP are deck mounted and JIS F 2017-1982type BC, AC is deck mounted casting steel chocks.
Main Technical Specification:
1. Standard: JIS F 2017-1982
2. Type: AC;
3. SWL Range: 30-100T;
4. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.
5. Weight: 184 to 422kg;
6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS
Main Technical Parameter:
| Nominal Size |
L | L1 | L2 | L3 | L4 | L5 | D | H1 | H2 | H3 | R1 | R2 | R3 | R4 | R5 | K | T | Weight kg |
| 310 | 310 | 199 | 105 | 310 | 708 | 652 | 38 | 639 | 541 | 199 | 329 | 231 | 140 | 142 | 195 | 15 | 32 | 253 |
| 360 | 360 | 200 | 130 | 360 | 760 | 70 | 40 | 640 | 542 | 200 | 330 | 232 | 138 | 140 | 192 | 15 | 34 | 289 |
| 400 | 400 | 202 | 150 | 400 | 804 | 750 | 44 | 642 | 545 | 202 | 332 | 235 | 134 | 136 | 185 | 20 | 36 | 323 |
| 450 | 450 | 203 | 175 | 450 | 856 | 802 | 46 | 643 | 547 | 203 | 333 | 237 | 132 | 134 | 182 | 20 | 38 | 351 |
| 500 | 500 | 204 | 200 | 500 | 908 | 854 | 48 | 644 | 549 | 204 | 334 | 239 | 130 | 132 | 180 | 20 | 40 | 395 |
Drawing of JIS F 2017-1982 Type AC Deck Mounted Casting Steel Panama Chocks Ship Mooring Equipment
