JIS F 2017-1982 Type AP Deck Mounted Steel Plate Fabricated Panama Chocks Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard: | JIS F 2017-1982 | Type: | AP |
|---|---|---|---|
| Materials: | Casting C-Mn Steel, Casting Stainless Steel, Also Can Supply Special Steel For Icebreak | Weight: | 190kg, 207kg |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc. |
| High Light: | panama fairlead on ship,Type AP Panama Chocks,Panama Chocks |
||
Product Description

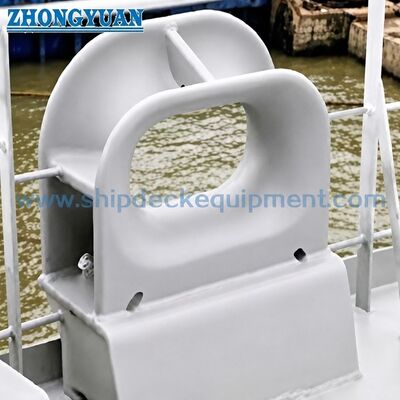

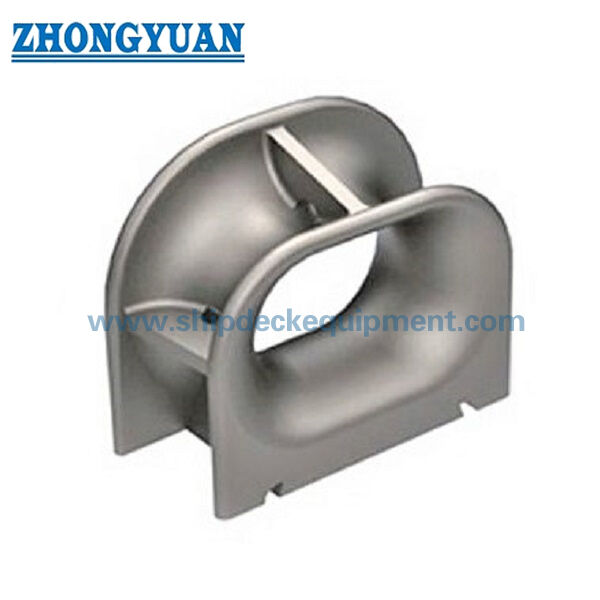

JIS F 2017-1982 Type AP Deck Mounted Steel Plate Fabricated Panama Chocks Ship Mooring Equipment
Description:
Panama chocks are popular as mooring equipment, which can stand great loads when mooring ships and vessels. We can provide 4 types, among which JIS F 2017-1982 type AC, AP are deck mounted and JIS F 2017-1982 type BC, AP is deck mounted chock.
Main Technical Specification:
1. Standard: JIS F 2017-1982
2. Type: AP;
3. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.
4. Weight: 190kg, 207kg;
5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS
Main Technical Parameter:
| Nominal Size |
L | L1 | L2 | L3 | L4 | Weight kg |
| 310 | 310 | 85 | 155 | 670 | 620 | 190 |
| 360 | 360 | 110 | 180 | 720 | 670 | 207 |
Drawing of JIS F 2017-1982 Type AP Deck Mounted Steel Plate Fabricated Panama Chocks Ship Mooring Equipment
