JIS F 2017-1982 Type BP Steel Plate Fabricated Bulwark Mounted Panama Chocks Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard: | JIS F 2017-1982 | Type: | BP |
|---|---|---|---|
| Materials: | Casting C-Mn Steel, Casting Stainless Steel, Also Can Supply Special Steel For Icebreaker | Weight: | 184kg & 193kg |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS |
Product Description

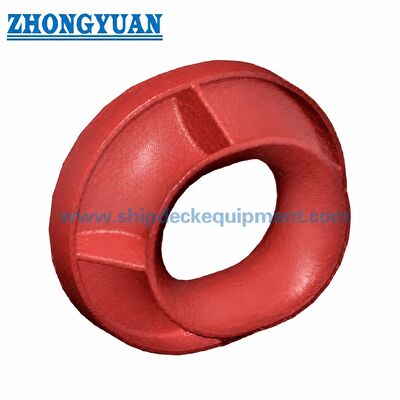

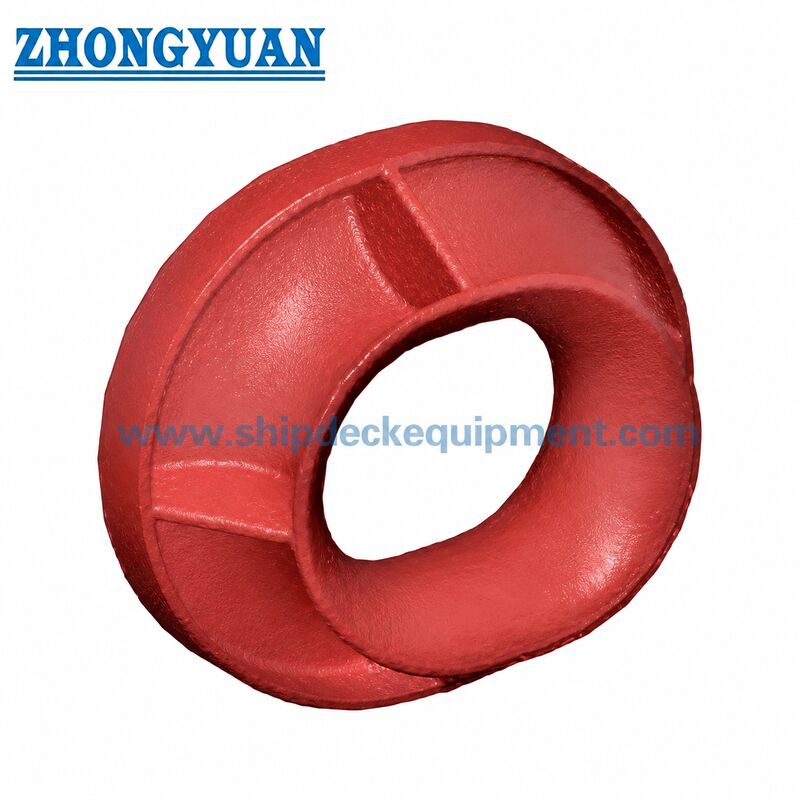

JIS F 2017-1982 Type BP Steel Plate Fabricated Bulwark Mounted Panama Chocks Ship Mooring Equipment
Description:
Panama chocks are popular as mooring equipment, which can stand great loads when mooring ships and vessels. We can provide all 4 type in JIS F 2017-1982. type AC, AP are deck mounted , type BC, BP are bulwark mounted chocks. Type BP is steel plate fabricated chock.
Main Technical Specification:
1. Standard: JIS F 2017-1982
2. Type: BP;
3. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.
4. Weight: 184kg & 193kg;
5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS
Main Technical Parameter:
|
Nominal Size |
L | L1 | L2 |
weight kg |
| 310 | 310 | 702 | 620 | 184 |
| 360 | 360 | 752 | 670 | 193 |
Drawings of JIS F 2017-1982 Type BP Steel Plate Fabricated Bulwark Mounted Panama ChocksShip Mooring Equipment
