JIS F 2005-1975 Deck Mounted Casting Steel Close Type Ship Mooring Chock Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Materials: | Casting C-Mn Steel, Casting Stainless Steel, Also Can Supply Special Steel For Icebreaker | Technical Standard: | JIS F2005-1975 |
|---|---|---|---|
| Weight: | 3.7 To 232kg | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS | ||
| Highlight: | JIS F 2005-1975 closed chock ship,casting steel closed chock ship,OEM closed marine chock |
||
Product Description

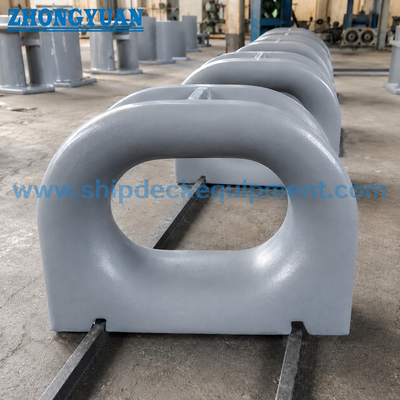

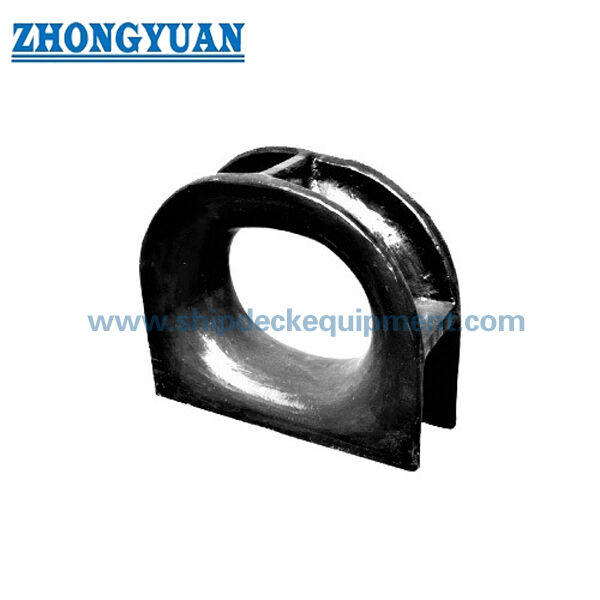

JIS F 2005-1975 Deck Mounted Casting Steel Close Type Ship Mooring Chock Ship Mooring Equipment
Description:
JIS F 2005-1975 closed chock is one of the marine chocks, it is made according to the marine standard of Japanese Standard Association. Made of casting steel, it's surface can be galvanized, polished and black painted. It is mainly used to protect the marine rope from breaking and can at the same time extend the rope's service life.
Main Technical Specification:
1. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.
2. Technical Standard: JIS F2005-1975
3. Weight:3.7 to 232kg;
4. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
5. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS
Main Technical Parameter:
| Nominal size | L | L1 | L2 | B | H | H1 | H2 | H3 | R | R1 | T | (T1) | (R2) | (R3) |
Leg of weld |
Calculated mass kg | Nominal dia. of applicable rope (Reference) | ||
|
Wire rope (6×24) |
Manila rope | Nylon rope | |||||||||||||||||
| 100 | 100 | 35 | 170 | 60 | 76 | 141 | 30 | 35 | 38 | 73 | 12 | 10 | 30 | 18 | 7 | 8.7 | 14 | 24 | 18 |
| 150 | 150 | 50 | 250 | 90 | 110 | 205 | 45 | 50 | 55 | 105 | 16 | 12 | 45 | 29 | 8 | 10.5 | 16 | 30 | 22 |
| 200 | 200 | 70 | 348 | 120 | 150 | 280 | 60 | 70 | 75 | 145 | 20 | 16 | 60 | 40 | 9 | 24 | 18 | 40 | 28 |
| Nominal size | L | L1 | L2 | L3 | L4 | B | H | H1 | H2 | H3 | R | R1 | R2 | R3 | r1 | r2 | T | T1 | Calculated mass kg |
Nominal dia. of applicable rope (Reference) |
|
|
Wire rope |
Manila rope | ||||||||||||||||||||
| 250 | 250 | 92 | 100 | 250 | 434 | 160 | 200 | 372 | 80 | 92 | 100 | 192 | 80 | 56 | 20 | 15 | 24 | 20 | 48 | 20(6×12) | 50 |
| 300 | 300 | 114 | 110 | 300 | 528 | 200 | 250 | 464 | 100 | 114 | 125 | 239 | 100 | 72 | 25 | 20 | 28 | 22 | 83 | 22.4(6×12) | 60 |
| 350 | 350 | 125 | 125 | 350 | 600 | 220 | 250 | 485 | 110 | 125 | 125 | 250 | 110 | 80 | 30 | 20 | 30 | 22 | 103 | 24(6×24) | 70 |
| 400 | 400 | 136 | 135 | 370 | 672 | 240 | 250 | 506 | 120 | 136 | 125 | 261 | 120 | 88 | 30 | 20 | 30 | 22 | 136 | 26(6×24) | 80 |
| 450 | 450 | 148 | 150 | 400 | 746 | 260 | 250 | 528 | 130 | 140 | 125 | 273 | 130 | 94 | 30 | 20 | 36 | 28 | 184 | 30(6×24) | 85 |
| 500 | 500 | 160 | 175 | 450 | 820 | 280 | 250 | 550 | 140 | 160 | 125 | 285 | 140 | 100 | 30 | 20 | 40 | 30 | 232 | 35.5(6×24) | 90 |
Drawing of JIS F 2005-1975 Deck Mounted Casting Steel Close Type Ship Mooring Chock Ship Mooring Equipment
