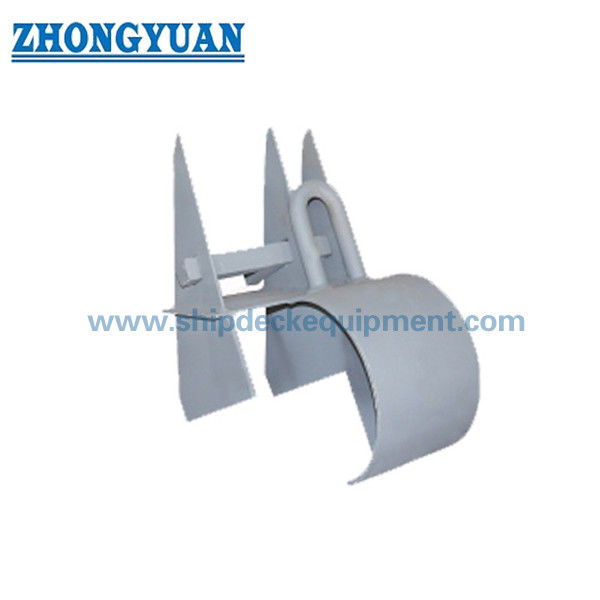

CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | CB531-66 | Nominal Chain Diameter: | 17mm To 37mm |
|---|---|---|---|
| Materials: | C-Mn Steel, Stainless Steel | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. | ||
| Highlight: | CB531-66 simple anchor releaser,simple anchor releaser CB531-66,CB531-66 Ship Mooring Equipment |
||
Product Description
CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment
Description:
Simple type anchor releaser is one of popular anchor releasing devices. Although it is called the simple anchor releaser and it can still- hold the nominal diameter of 17mm up to 37mm anchor chains. Besides, it is easy to operate the simple anchor releaser and keep safety when ship is sailing. If you have any requirement about the products, we can do it as you request.
Main Technical Specification:
1. Technical Standard: CB531-66;
2. Nominal Chain Diameter: 17mm to 37mm
3. Applicable to Grade 2 and Grade 3 Anchor Chains;
4. Materials: C-Mn Steel, Stainless Steel,
5. Excellent Flexibility;
6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.
7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
8. Can be Customized
Main Technical Parameter:
|
Cale diameter mm |
L | L1 | B | B1 | B2 | B3 | H1 | H2 | H3 | H4 | R | t1 | t2 | t3 | d | Weight kg≈ |
| 17-19 | 150 | 35 | 238 | 54 | 128 | 140 | 90 | 100 | 100 | 118 | 100 | 6 | 4 | 5 | 28 | 8.93 |
| 22-25 | 196 | 40 | 270 | 61 | 146 | 170 | 110 | 130 | 110 | 145 | 125 | 8 | 4 | 6 | 30 | 14.38 |
| 28-31 | 256 | 45 | 305 | 70 | 165 | 200 | 130 | 160 | 120 | 180 | 150 | 10 | 5 | 6 | 30 | 25.41 |
| 34-37 | 324 | 55 | 360 | 84 | 198 | 230 | 150 | 190 | 130 | 215 | 175 | 12 | 6 | 8 | 36 | 36.88 |
Drawing of CB 531 Simple Anchor Chain Cable Clench Release Anchor Chain Ship Mooring Equipment
