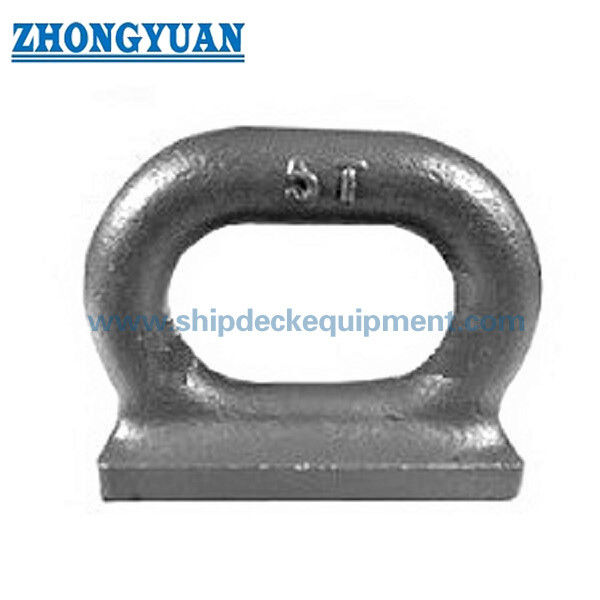

Marine Forged Welded Oval Eye Plate for Ship Deck Mooring and Rigging Connections

Marine Forged Welded Oval Eye Plate for Ship Deck Mooring and Rigging Connections

Product Overview

The Marine Forged Welded Oval Eye Plate is a welded ship deck attachment fitting used for fixing rope terminals, shackles, pulleys and other marine connection components. It is designed according to JIS F3410-1999 Type F and is intended for installation on reinforced ship structures where a compact welded connection point is required.

The Type F design uses a forged oval eye body with an elongated opening and a welded base arrangement. This structure is different from a simple plate-cut pad eye. The forged shape, smooth radius transition and oval opening help provide practical clearance for shackles and rope terminals while supporting stable load transfer around the eye area.

This product is suitable for shipyards, vessel owners, marine equipment distributors and engineering buyers who need a standard-based welded eye plate for deck connection, mooring attachment and marine rigging applications. Final material grade, welding scope, inspection scope and certificate requirements should be confirmed according to the project specification.

Quick Specifications

• Product Standard: JIS F3410-1999 → Ship oval eyeplate standard for marine deck connection fittings.

• Product Type: Type F forged welded oval eye plate → Oval eye structure with welded base for shipboard attachment applications.

• Nominal Size Range: 3-15 → Standard Type F size range in the provided table.

• Permissible Load: 29.4-147 kN → Used for selecting the correct eye plate size; it should not be mixed with rope MBL, test load or lifting SWL.

• Main Use: Rope terminals, shackles and pulleys → Used as a fixed welded connection point on ship structures.

• Material Options: Mild steel / stainless steel / C-Mn steel forging → Final material grade should be confirmed according to project specification and corrosion environment.

• Surface Condition: Free from visible cracks and flaking → Important for forged component inspection and reliable service on deck.

• Surface Treatment: Sandblasting to Sa2.5 + one layer epoxy shop primer → Prepared for marine coating systems before final shipyard painting.

• Installation Method: Welded installation → Requires suitable deck or supporting steel reinforcement and qualified welding procedure.

• Certificate Options: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate → Supplied according to project and class requirements.

Main Technical Parameters

Note: Dimensions are based on the provided JIS F3410 Type F table. Final production dimensions, tolerances, material grade and inspection scope should be confirmed according to the approved drawing and purchase order.

Selection Guide

Step 1: Confirm connection purpose = rope terminal / shackle / pulley fixing → This confirms whether Type F oval eye plate is the correct attachment fitting for the application.

Step 2: Confirm permissible load = 29.4-147 kN → Select the nominal size according to the required connection load and project safety requirements.

Step 3: Confirm nominal size = 3 / 5 / 7.5 / 10 / 15 → Match the selected size with the standard dimensions, eye opening clearance and connection hardware.

Step 4: Confirm load direction = vertical / inclined / side direction → The welded structure and deck reinforcement should be checked for the actual force direction.

Step 5: Confirm installation structure = welded deck or reinforced steel foundation → The supporting plate thickness and reinforcement arrangement affect final load transfer.

Step 6: Confirm material = mild steel / stainless steel / C-Mn steel forging → Select material according to corrosion environment, owner specification and class requirements.

Step 7: Confirm coating = Sa2.5 + epoxy shop primer or project coating system → Confirm whether final top coating will be applied by shipyard or supplier.

Step 8: Confirm certificate = Makers Test Certificate or class certificate → Confirm required society and inspection scope before quotation.

Structure

Forged Oval Eye Body | Elongated Oval Opening | Smooth Radius Transition | Welded Base Area | Fillet Weld Leg Requirement | Marine Deck Attachment Point | Epoxy Primer Surface Protection

Forged Structure and Engineering Advantages

• Forged oval body → Provides better structural continuity around the eye opening than a simple flame-cut plate shape.

• Smooth radius transition → Helps reduce local stress concentration around the connection area.

• Oval opening design → Provides practical clearance for shackles, rope terminals and pulley fixing arrangements.

• Welded base arrangement → Allows direct integration with reinforced deck or ship steel structures.

• Standard dimensional range → Nominal sizes 3-15 cover multiple permissible load levels from 29.4 kN to 147 kN.

• Marine coating preparation → Sa2.5 blasting and epoxy shop primer support further shipyard coating systems.

• Inspection-friendly surface requirement → Finished eyeplate surface should be free from visible cracks and flaking.

Custom Attributes

• Standard: JIS F3410-1999 → Standard basis for ship oval eye plates.

• Type: Type F → Forged welded oval eye plate configuration.

• Nominal Size: 3-15 → Defines the standard size range and corresponding dimensional table.

• Permissible Load: 29.4-147 kN → Used for model selection and engineering confirmation.

• Material: Mild steel / stainless steel / C-Mn steel forging → Material can be selected according to project specification.

• Surface Condition: Free from visible cracks and flaking → Important inspection point for forged marine fittings.

• Surface Treatment: Sa2.5 blasting + epoxy shop primer → Standard anti-corrosion preparation before final painting.

• Installation: Welded → Requires qualified welding and suitable steel foundation on the vessel.

• Main Connection Parts: Rope terminals / shackles / pulleys → Common deck connection applications.

• Certificate: Makers Test Certificate / class certificate → To be confirmed according to order and vessel requirement.

Inquiry Guide

• Required nominal size or required permissible load.

• Application: rope terminal, shackle, pulley fixing or other marine deck connection.

• Installation position: deck, bulwark, foundation plate or other reinforced steel structure.

• Load direction and expected working condition, if available.

• Material requirement: mild steel, stainless steel or C-Mn steel forging.

• Surface treatment requirement and final coating specification.

• Required certificate: Makers Test Certificate or specific class certificate.

• Quantity and delivery schedule.

• Destination port or shipping method.

• Drawing, sketch or reference photo if available.

How It Works

Reinforced Ship Structure Prepared → Eye Plate Welded to Deck or Foundation → Shackle / Rope Terminal / Pulley Connected → Load Transferred Through Forged Eye Body → Welded Base Transfers Load Into Ship Structure

Applications

Ship Deck Attachment | Mooring Connection Point | Rope Terminal Fixing | Shackle Connection | Pulley Fixing | Tugboat Deck Structure | Workboat and Barge Mooring Area | Marine Rigging Connection

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate. The forged welded oval eye plate can be supplied with project-specific inspection documents, material records and class-related documentation according to order requirements.

Drawing & Photos

General arrangement drawing and product photos can be placed here for technical reference.

Ordering

• Confirm standard and type: JIS F3410-1999 Type F.

• Confirm nominal size: 3, 5, 7.5, 10 or 15.

• Confirm permissible load requirement: 29.4-147 kN according to selected size.

• Confirm material requirement and whether stainless steel is required.

• Confirm surface treatment and final coating scope.

• Confirm certificate requirement before production.

• Confirm quantity, packing method and delivery destination.

• Provide installation drawing or deck structure drawing if class approval or welding verification is required.

Supporting Documents Available Upon Request

The following supporting documents can be provided according to project requirements. Project-specific certificates, heat number records and welding documents are normally provided after inquiry or order confirmation.

• Product datasheet and simplified GA drawing → Suitable for customer download or inquiry follow-up.

• Material certificate sample and heat number traceability record → Recommended after inquiry or project confirmation.

• Classification certificate sample or previous project reference → Can be provided as a masked sample when suitable.

• Installation drawing or reinforcement recommendation → Detailed version should be provided during technical confirmation.

• Coating and surface treatment specification → Can be provided according to the vessel coating system.

• Welding procedure / WPS information → Provided only if included in the project scope or required by class / shipyard.

FAQ

Q1: Is this product the same as a lifting pad eye?

No. This Type F product is mainly described as a ship oval eye plate for marine fastening and connection applications such as rope terminals, shackles and pulleys. If it will be used for lifting, the load direction, safety factor, welding design and class approval should be separately verified.

Q2: How should I select the correct nominal size?

Selection should start from the required permissible load and the connection hardware size. The standard table gives nominal sizes 3, 5, 7.5, 10 and 15 with permissible loads from 29.4 kN to 147 kN. The installation structure and load direction should also be checked.

Q3: Why is the forged structure important?

A forged eye body provides better structural continuity around the oval eye opening compared with a simple flat plate shape. This is useful for marine connection points where the component may experience concentrated load transfer through shackles or rope terminals.

Q4: Can stainless steel material be supplied?

Yes, stainless steel material can be considered when higher corrosion resistance is required. The exact grade, mechanical properties and certificate scope should be confirmed before quotation.

Q5: What information is needed for a fast quotation?

Please provide nominal size or permissible load, quantity, material, coating requirement, certificate requirement, installation position and destination port. A drawing or application photo will help confirm the correct configuration.

Q6: Which documents are normally public downloads and which are inquiry-based?

The datasheet and simplified GA drawing can usually be prepared for website download. Material certificates, heat number records, WPS information and class certificate samples are normally provided after inquiry or project confirmation because they may contain project-specific or factory-sensitive information.

Important Engineering Notes

• This product is a welded marine attachment fitting. The supporting deck or steel structure should be strong enough to transfer the applied load.

• Permissible load should not be treated as rope MBL, test load or lifting SWL unless separately verified by engineering calculation and class approval.

• Load direction is important. Side loading, inclined loading and repeated dynamic loading should be checked according to the actual installation arrangement.

• Welding leg size, dimensional tolerance and inspection requirements should follow JIS F3410, approved drawings, shipyard welding procedure and class requirements.

• Deck reinforcement may be required depending on the installation position, plate thickness and load path.

• Sa2.5 blasting and epoxy shop primer are preparation treatments. The final coating system should match the vessel painting specification.
