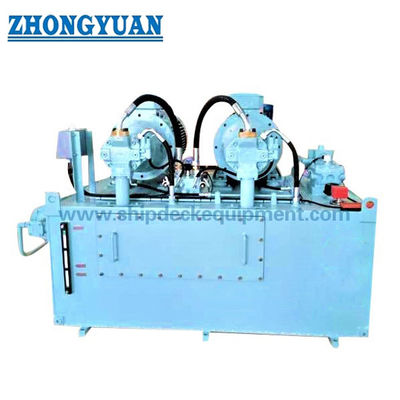

Anchor Windlass Winch Hydraulic Power Unit
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Hydraulic Transmission: | XHS1-200 | System Work Flow: | 10 L/min |
|---|---|---|---|
| System Work Pressure: | 16.5 MPa | Oil Pump Model: | 10SCY14-1B |
| E-Motor: | Y112M-4-H ，4KW | Safety Valve Setting Pressure: | 27MPa |
| Protection Level Of Electric Control Box: | IP44 | Button Box Protection Level: | IP56 |
| Class Certificate: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc | ||
| Highlight: | IP56 5 hp hydraulic power unit,415V IP56 5 hp hydraulic power unit,415V 5 hp hydraulic power pack |
||
Product Description
Anchor Windlass Winch Hydraulic Power Unit
Description
Anchor windlass winch hydraulic power unit provides power to the hydraulic system. It mainly includes electric motor, hydraulic pump, sensors, valve blocks, oil tank, and electric switch board. It widely used in marine industry. We manufacture HPU for steering gear, deck machineries, and other hydraulic systems.
Main Technical Specifications
1 Hydraulic transmission: XHS1-200
Displacement:201ml/r
2 System work flow -10 L/min
3 System work pressure -16.5 MPa
4 Oil pump model: 10SCY14-1B
5. E-Motor: Y112M-4-H
Power: 4KW
Electric system 415V /50Hz
Protection class IP56
6 Safety valve setting pressure -27MPa
7 Protection level of electric control box IP44
8 Button box protection level IP56
9. Class Certificate: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
Drawing of Anchor Windlass Winch Hydraulic Power Unit
