150–450 mm Closed Type Two-Roller Shipside Fairlead for Ship Mooring Equipment

150–450 mm Closed Type Two-Roller Shipside Fairlead for Ship Mooring Equipment

Product Overview

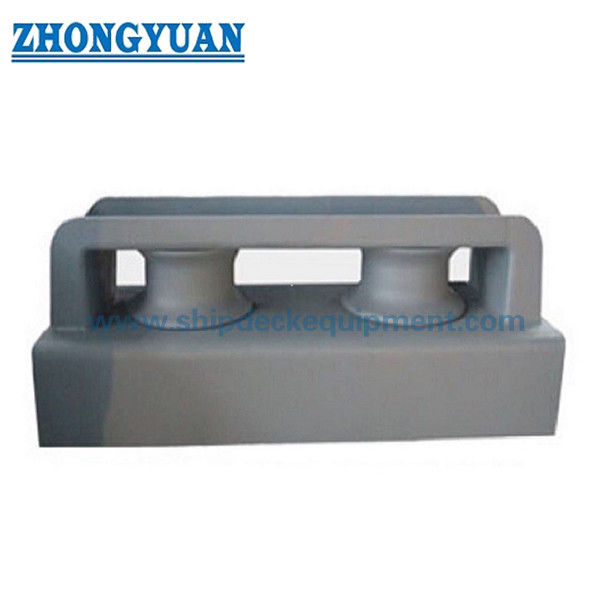

JIS F 2014 Form BF BS closed type shipside fairlead with two rollers is designed to change and guide the direction of mooring ropes on ship sides and deck mooring areas. The closed frame helps control the rope path and reduce the risk of rope jumping out during mooring operation, while the two rollers provide smooth rope guidance and help reduce wear on wire ropes, Manila ropes and nylon ropes.

This page is focused on the closed type two-roller configuration. It is different from open type fairleads and three-roller closed type fairleads because the structure is more compact and the rope path is more controlled. The product can be supplied according to JIS F 2014-1987, with roller diameters from 150 mm to 450 mm and customized material or surface treatment options according to project requirements.

Quick Specifications

• Technical Standard: JIS F 2014-1987 → used as the production and dimensional reference for this Japan standard shipside fairlead.
• Type: BF & BS closed type → closed frame design for controlled mooring rope guidance.
• Roller Diameter: 150–450 mm → selected according to rope size, rope route and ship mooring arrangement.
• Roller Quantity: 2 rollers → suitable for compact closed type rope direction change and guidance.
• Roller Weight Range: 21.2–230 kg → reference weight range provided for this product series.
• Applicable Ropes: Wire rope, Manila rope and nylon rope → selected according to vessel mooring practice and rope specification.
• Materials: Mild steel, C-Mn steel, stainless steel, casting steel or nodular cast iron → selected according to strength, corrosion and project requirements.
• Surface Treatment: Sandblasting to Sa2.5 + one layer of epoxy shop primer, galvanized, polished or customized treatment → selected according to marine corrosion protection requirement.
• Customization: Available → material, coating and project-specific details can be confirmed according to drawings and class requirements.

Main Technical Parameters

The following table uses the dimensional data provided for JIS F 2014 Form BF BS closed type two-roller shipside fairlead. No unprovided load or size data has been added.

Nominal Dia. (mm)	D (mm)	L (mm)	I (mm)	I2 (mm)
150	150	1020	420	300
200	200	1190	530	330
250	250	1430	640	395
300	300	1610	750	430
350	350	1890	860	515
400	400	2100	970	565
450	450	2360	1080	640

1. Closed Type Cast-Iron Roller Fairlead - Main Website Dimensions

Closed Type Steel-Plate Fabricated Roller Fairlead - Main Website Dimensions

Selection Guide

Step 1: Confirm the fairlead type = BF & BS closed type → choose this product when the mooring rope needs a controlled closed rope path instead of an open roller guide.

Step 2: Confirm roller diameter = 150–450 mm → match the nominal diameter with rope size, rope bending route and the ship side mooring arrangement.

Step 3: Confirm roller number = 2 rollers → suitable for compact direction change and rope guidance where a three-roller layout is not required.

Step 4: Confirm rope type = wire rope, Manila rope or nylon rope → different rope materials may require different surface finish and roller contact quality.

Step 5: Confirm material = mild steel, C-Mn steel, stainless steel, casting steel or nodular cast iron → choose according to project specification, corrosion environment and class requirement.

Step 6: Confirm coating = Sa2.5 + epoxy shop primer, galvanized, polished or customized → select the surface treatment according to shipyard painting system and marine exposure condition.

Step 7: Confirm certification requirement = project class certificate or maker test certificate → advise the required classification society before quotation and production.

Structure

Closed frame | Two guide rollers | Roller shaft | Side support structure | Base / mounting structure | Rope contact surface | Protective surface treatment

Design and Quality Advantages

• Closed type structure helps keep the mooring rope within the guide path during operation.
• Two-roller configuration provides smooth rope direction change with a compact arrangement.
• Smooth roller and frame contact surfaces help reduce rope wear during mooring operation.
• Material options support different project requirements, including mild steel, C-Mn steel, stainless steel, casting steel and nodular cast iron.
• Surface treatment options can be matched with shipyard coating requirements and marine corrosion protection needs.
• Manufacturing can be arranged according to JIS F 2014-1987 and project drawing requirements.

Custom Attributes

• Technical Standard: JIS F 2014-1987 → confirms the production and dimensional reference standard.
• Product Type: BF & BS closed type → identifies the closed frame configuration for controlled rope guidance.
• Roller Diameter: 150–450 mm → key selection parameter for matching rope route and mooring arrangement.
• Roller Quantity: 2 rollers → defines the rope guide layout and differentiates this model from three-roller types.
• Material: Mild steel / C-Mn steel / stainless steel / casting steel / nodular cast iron → selected according to project specification and corrosion requirement.
• Surface Treatment: Sa2.5 + epoxy shop primer / galvanized / polished / customized → selected according to marine environment and coating system.
• Applicable Rope: Wire rope / Manila rope / nylon rope → confirms rope compatibility before quotation.
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate → confirm the required certificate before order.

Inquiry Guide

• Required nominal diameter or roller diameter, such as 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm or 450 mm.
• Required type confirmation: JIS F 2014 Form BF BS closed type, 2 rollers.
• Rope type and rope size, such as wire rope, Manila rope or nylon rope.
• Material requirement, such as mild steel, C-Mn steel, stainless steel, casting steel or nodular cast iron.
• Surface treatment requirement, such as Sa2.5 + epoxy shop primer, galvanized or polished finish.
• Required classification certificate or maker test certificate.
• Installation drawing, deck arrangement or existing fairlead replacement dimensions if available.
• Order quantity, delivery port and required delivery time.

How It Works

Mooring rope enters the closed fairlead opening → rope contacts the guide rollers → rollers rotate and guide the rope direction → closed frame controls the rope path → rope is led safely toward bollard, winch, capstan or shore-side mooring point.

Applications

Ship side mooring area | Deck mooring arrangement | Mooring rope direction change | Wire rope guidance | Manila rope guidance | Nylon rope guidance | Replacement of Japan standard closed type fairlead

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

The product can be supplied with project documentation, inspection records and certificate options according to contract and classification requirements. The exact certificate scope should be confirmed before quotation and production.

Drawing & Photos

General arrangement drawing and product photos

Ordering

• Confirm product name: JIS F 2014 Form BF BS closed type two-roller shipside fairlead.
• Confirm nominal diameter and main dimensions from the technical parameter table.
• Confirm material, surface treatment and certificate requirement before quotation.
• Provide rope type, rope size and ship mooring arrangement if available.
• Confirm quantity, delivery term, destination port and required delivery schedule.
• For replacement projects, provide existing fairlead photos and installation dimensions to reduce mismatch risk.

FAQ

Q1: What is the main difference between closed type and open type shipside fairlead?

A1: Closed type fairlead has a frame that helps control the rope path and reduce the possibility of rope jumping out. Open type fairlead is more convenient for flexible rope entry from different directions. This page is for the closed type two-roller configuration.

Q2: Can this fairlead be used for wire rope, Manila rope and nylon rope?

A2: Yes. The provided product description states that this fairlead can bear wire ropes, Manila ropes and nylon ropes. The final selection should still confirm rope size, rope route and surface finish requirement.

Q3: Which roller diameter should be selected?

A3: The available roller diameter range is 150–450 mm. Selection should be based on the vessel mooring arrangement, rope type, rope size and installation space. If the project is a replacement, the existing fairlead dimensions should be checked against the table.

Q4: Can the material and surface treatment be customized?

A4: Yes. Material options include mild steel, C-Mn steel, stainless steel, casting steel and nodular cast iron. Surface treatment can be Sa2.5 + epoxy shop primer, galvanized, polished or customized according to project requirements.

Q5: What certificate should be requested for quotation?

A5: Please confirm whether the project needs a classification society certificate, maker test certificate or other project documentation. The certificate scope should be confirmed before quotation because it affects inspection, cost and delivery schedule.
