Product Overview

Open type 3 roller shipside fairlead is designed for guiding mooring ropes along the ship side, bow or stern deck area where flexible rope lead-in and multi-direction rope control are required.

This page focuses on the open type 3-roller arrangement under JIS F 2014. The standard includes open double-roller, open three-roller, closed double-roller and closed three-roller forms; this product is the open type three-roller version.

Compared with closed type fairleads, the open structure has no top cover plate and allows easier rope lead-in from the outside deck. It is suitable for ship side mooring positions where rope direction may change during operation.

The rollers can be supplied as steel plate fabricated rollers or casting steel rollers. Although older standard references may include cast iron rollers, our supply scope normally uses casting steel for improved strength and durability.

The smooth roller surface and proper roller arrangement reduce friction, help protect rope surface and improve rope guidance during mooring operations.

Quick Specifications

• Roller Diameter: 150-450 mm -> Covers common ship side mooring rope guide sizes

• Type: Open type 3 rollers -> Flexible rope lead-in with multi-direction guiding

• Standard: JIS F 2014 -> Japanese shipside fairlead reference standard

• Roller Material Options: Steel plate fabricated roller / casting steel roller -> Selected according to project requirement

• Current Supply Preference: Casting steel roller -> Stronger and more durable than old cast iron roller practice

• Structure: Open frame without top cover plate -> Easier rope entry and inspection

• Function: Rope guiding and friction reduction -> Protects mooring rope during operation

• Surface Treatment: Sa2.5 blasting + epoxy coating / galvanized / polished / customized -> Marine corrosion protection

• Customization: Roller material, coating, dimensions and certification can be confirmed by project drawing

• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

JIS F 2014 Form Explanation

• Open Type Double Roller -> Two rollers, open structure, easy rope lead-in

• Open Type Three Roller -> Three rollers, open structure, improved rope direction control

• Closed Type Double Roller -> Two rollers with top cover, controlled rope path

• Closed Type Three Roller -> Three rollers with top cover, controlled rope path and stronger rope containment

This product page is for the open type three-roller shipside fairlead. The open type is designed for flexibility, while closed type is designed for controlled rope path.

Main Technical Parameters

Open Type Steel-Plate Fabricated Roller Fairlead

Open Type Cast-Iron Roller Fairlead

Note: The above table follows the main dimensions provided for the open type 3-roller shipside fairlead. '-' indicates no value shown in the provided data.

Selection Guide

Step 1 - Confirm fairlead form -> Select open type three-roller form when flexible rope lead-in and multi-direction guiding are required

Step 2 - Select nominal diameter -> Choose 150-450 mm based on rope size and deck arrangement

Step 3 - Confirm roller material -> Select steel plate fabricated roller or casting steel roller according to project specification

Step 4 - Confirm open or closed type requirement -> Open type for flexibility; closed type for controlled rope path

Step 5 - Confirm installation position -> Ship side, bow deck, stern deck or other mooring rope lead area

Step 6 - Confirm coating and certification -> Select marine coating, galvanizing or class certificate according to project requirement

Structure

Open Frame | Three Rollers | Side Support Structure | Roller Shaft | Base Structure | Shipside Mounting Arrangement

Design and Quality Advantages

• Open type structure -> Easier rope lead-in and visual inspection

• Three-roller arrangement -> Better rope direction control than double-roller arrangement

• Casting steel roller option -> Higher strength and improved durability compared with old cast iron practice

• Steel plate fabricated roller option -> Flexible fabrication choice for specific project requirements

• Smooth roller surface -> Reduces friction and protects mooring rope

• Large size range -> Covers 150-450 mm nominal roller diameters

• Custom coating -> Suitable for marine corrosion environment

Custom Attributes

• Product Type: Open type three-roller shipside fairlead -> Used for mooring rope guiding on ship side or deck edge
• Standard: JIS F 2014 -> Japanese shipside fairlead reference standard
• Nominal Diameter: 150-450 mm -> Covers common ship mooring rope guide sizes
• Roller Arrangement: Three rollers -> Improves rope direction control and load distribution
• Structure Type: Open type -> Easier rope entry and inspection
• Roller Material: Steel plate fabricated / casting steel -> Selected according to project requirement
• Supply Preference: Casting steel -> Stronger and more durable for marine mooring applications
• Surface Treatment: Sa2.5 blasting + epoxy / galvanized / polished / customized -> Marine corrosion protection
• Application: Ship side mooring rope guiding -> Suitable for bow, stern and side deck positions
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate -> Supports project documentation and inspection requirements

Inquiry Guide

• Required fairlead form: open type three-roller

• Nominal roller diameter: 150, 200, 250, 300, 350, 400 or 450 mm

• Roller material preference: steel plate fabricated roller or casting steel roller

• Rope type and rope diameter

• Installation position and deck arrangement

• Surface treatment requirement

• Certification and inspection requirement

• Drawing or GA requirement if exact roller construction dimensions are needed

How It Works

Rope enters the open fairlead structure -> rope contacts the rollers -> rollers guide the rope direction and reduce friction -> open frame allows flexible rope lead-in and inspection -> mooring rope is guided safely along the ship side or deck edge.

Applications

Ship side mooring | Bow deck rope guiding | Stern deck rope guiding | Cargo vessels | Barges | Workboats | General ship mooring equipment

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate. Advantages include open rope lead-in, three-roller guidance, casting steel roller option, smooth rope contact surface and customizable coating/materials.

Drawing & Photos

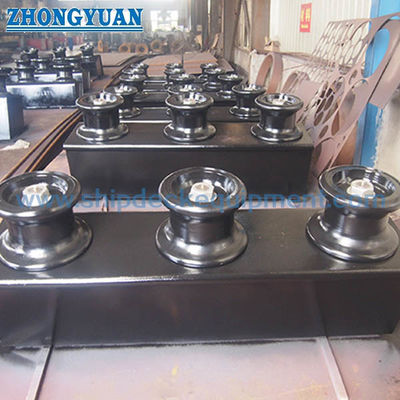

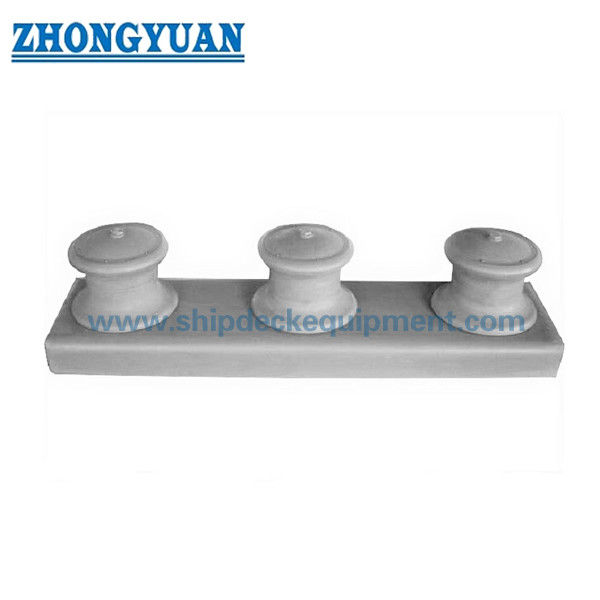

General arrangement drawing and product photos

Ordering

• Specify open type 3-roller fairlead

• Confirm nominal diameter and roller material

• Confirm surface treatment and coating system

• Confirm certification scope

• Provide installation drawing if foundation or detailed roller construction must be customized

FAQ

Q1: Why is this called open type fairlead?
A: It has no top cover plate above the rollers, allowing easier rope lead-in from the outside deck and better visual inspection.

Q2: What is the difference between open type and closed type?
A: Open type is designed for flexible rope entry, while closed type provides a more controlled rope path with a top cover structure.

Q3: Why use three rollers instead of two rollers?
A: Three rollers provide better rope direction control and more stable guidance when rope lead angles vary.

Q4: What is the difference between steel plate fabricated roller and casting steel roller?
A: Steel plate fabricated roller is a fabrication option; casting steel roller provides higher integral strength and is commonly preferred for current supply.

Q5: Can the product be customized?
A: Yes. Roller material, coating, dimensions, certification and installation details can be customized according to project requirements.
