Marine Two Roller Chock | How to Select Roller Chock for Ship Mooring
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Technical Standard: | CB/T 38-1999 | Type: | Type B |
|---|---|---|---|
| Roller Diameters: | 75~350mm | Roller No.: | Two Rollers |
| Roller Weight: | 18~1134kg | Materials: | Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, Etc. |
| Highlight: | Ship Mooring Equipment Casting Steel,Open Type 2 Rollers Casting Steel |
||
Product Description
Marine Two Roller Chock | How to Select Roller Chock for Ship Mooring
Product Overview
Marine two roller chock is designed to guide mooring ropes through a fixed opening while reducing friction and controlling rope direction.
This page provides both product information and a practical selection guide to help engineers and buyers choose the correct model based on rope size, load and installation conditions.
The product follows updated standards such as CB/T 38-1999, while maintaining compatibility with CB39-66 for replacement projects.
Quick Specifications
- Structure: Two rollers (frame type) → Smooth rope guidance
- Applicable Rope Diameter: 7–37 mm → Standard selection range
- Applicable Rope MBL: 23–583 kN → Load reference
- Mounting: Welded base / Bolt-on → Newbuild & retrofit
- Material: Casting steel → High strength
- Function: Reduce friction → Protect rope
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
How to Select a Two Roller Chock
Step 1 – Confirm Rope Diameter → Select based on mooring rope size
Step 2 – Confirm Rope Breaking Load (MBL) → Match chock capacity
Step 3 – Determine Installation Type → Welded for newbuild / Bolt-on for replacement
Step 4 – Check Rope Direction → Straight or angle guidance
Step 5 – Confirm Certification → CCS, ABS, DNV, etc.
Quick Selection Example
If rope diameter is 24 mm → Select nominal size 200
If rope MBL is around 246 kN → Match with table values
New vessel → Choose welded base
Replacement → Choose bolt-on type
Main Technical Parameters (CB/T 38-1999 Double Roller Chock)
Nominal | Rope MBL (kN) | Wire Rope Dia | PP Rope Dia | L | B | H | D | Weight (kg) |
| 75 | 23.3 | 7.4 | 12 | 400 | 150 | 116 | 75 | 18 |
| 100 | 52.5 | 11 | 18 | 530 | 200 | 147 | 100 | 41 |
| 125 | 93.4 | 15 | 24 | 650 | 250 | 173 | 125 | 76 |
| 150 | 145.8 | 18.5 | 30 | 780 | 300 | 201 | 150 | 132 |
| 200 | 246.6 | 24 | 40 | 1100 | 370 | 251 | 200 | 264 |
| 250 | 373.6 | 30 | 48 | 1240 | 470 | 300 | 250 | 498 |
| 300 | 472.7 | 33.5 | 56 | 1480 | 550 | 353 | 300 | 798 |
| 350 | 583.5 | 37.5 | 64 | 1690 | 640 | 386 | 350 | 1134 |
Load & Selection Basis
The Break Load shown in the table refers to the maximum breaking load (MBL) of the applicable mooring rope, not the direct SWL of the chock.
For engineering reference, the safe working load (SWL) can be estimated as:
SWL ≈ Rope MBL ÷ Design Safety Factor
Typical safety factor ranges from 1.5 to 2.0 depending on standards and operating conditions.
The chock is designed to withstand loads equal to or higher than the rope breaking strength, ensuring structural integrity under extreme conditions.
Mounting Method (Standard Evolution)
CB39-66: Bolt-on installation → suitable for retrofit projects.
CB/T 38-1999: Welded base → improved load transfer and structural strength.
Engineering Advantage
Welded base design provides continuous load transfer and reduces stress concentration.
Frame structure allows easier maintenance and ensures smooth roller rotation.
Selection Guide
Step 1 – Select rope diameter
Step 2 – Confirm rope breaking load (MBL)
Step 3 – Match nominal size
Step 4 – Confirm installation method
Structure
Two rollers | Frame support | Welded base | Free rotation system
Custom Attributes
- Frame structure → Easy maintenance
- Free rotating rollers → Reduce friction
- Casting steel → High durability
- Smooth contact surface → Protect rope
Inquiry Guide
Provide rope diameter, breaking load, installation location and certification requirements.
How It Works
Rope passes through chock → rollers rotate → friction reduced → smooth guidance → extended rope life.
Applications
Ship bow | Ship stern | Bulwark | Deck edge mooring
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Drawing & Photos

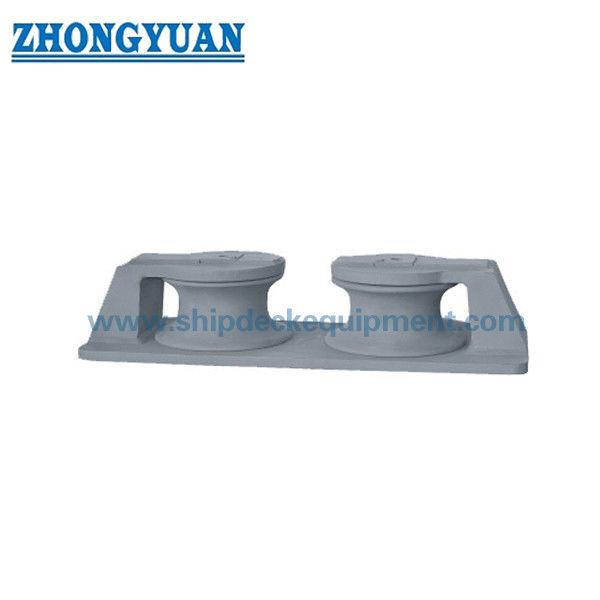

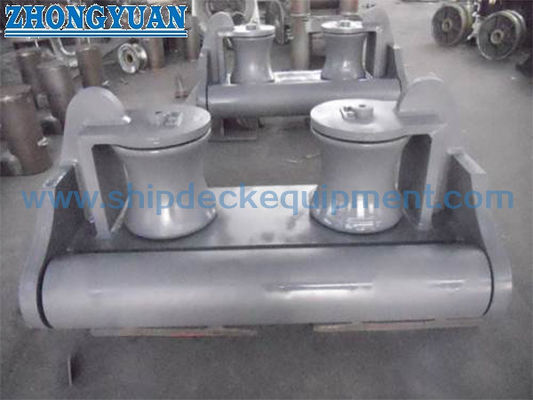

General arrangement drawing and product photos
Ordering
Specify: size, material, mounting method, coating, certification
FAQ
Q1: Is Break Load the SWL?
A: No, Break Load is the rope MBL. SWL is derived using safety factor.
Q2: Can you supply CB39-66 type?
A: Yes, for replacement projects.
Q3: Do rollers rotate?
A: Yes, freely rotating to reduce friction and wear.
