24–48 Inch Cast Steel Kevel Chocks | ASTM A27 Mooring Rope Guide for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Model Type: | Kevel Chock | Dimensions(inches): | Kevel Chocks (24" 30" 36" 42" 48"); Large Kevels (36”, 42”, 48”); X-Large Kevels (60”), Etc |
|---|---|---|---|
| Material Grade: | ASTM A27-70-36 Cast Steel, Casting Stainless Steel | Quality Control: | Heat Treatment, Radiographic Examination (RT), Magnetic Testing (MT), Pull Load Test |
| Surface Treatment: | Sandblasting To S2.5, One Layer Of Epoxy Shop Primer, Polished, Galvanized, Customized Surface Treatment Available | Certificate: | CCS/BV/LR/ABS/DNV-GL |
| Highlight: | 36 Cast Steel Kevel Chocks,Ship Mooring Equipment Kevel Chocks,Mooring Equipment Kevel Chocks |
||
Product Description
24–48 Inch Cast Steel Kevel Chocks | ASTM A27 Mooring Rope Guide for Ship Deck
Product Overview
Cast steel kevel chocks are deck-mounted mooring fittings used to guide and secure mooring lines.
Manufactured from ASTM A27-70-36 cast steel, the structure is verified by finite element strength analysis and load testing.
The design minimizes rope bending stress and extends service life of synthetic mooring lines.
Surface is smoothly ground to protect ropes and ensure safe operation.
Quick Specifications
- Size Range: 24–48 inch → Defines rope handling capacity
- Material: ASTM A27-70-36 Cast Steel → High strength & toughness
- Verification: FEA + Load Test → Ensures structural reliability
- Inspection: MT → Detects surface defects
- Heat Treatment: Yes → Improves mechanical properties
- Surface: Smooth grinding → Protects rope from damage
- Coating: Shop primer or bare → Flexible delivery condition
- Casting Process: Controlled → Ensures consistent quality
Main Technical Parameters
| Description | Size | Dimensions, Inches (MM) |
Weight LBS (KGS) |
||||||||||
| A | B | C | D | E | F | G | H | I | J | K | |||
| Kevel Chocks | 24” |
24” (610) |
3” (76) |
7-1/2” (190) |
4” (101) |
5-5/8” (143) |
5-1/8” (130) |
2-1/4” (57) |
3-1/4” (83) |
9” (229) |
10-1/2” (267) |
1/2” (13) |
50 (23) |
| 30” |
30” (762) |
3-1/4” (83) |
9-1/2” (241) |
4” (101) |
7” (178) |
5-5/8” (143) |
2-3/8” (60) |
6-7/8” (175) |
14” (356) |
20-1/4” (514) |
1/2” (12.7) |
75 (34) |
|
| 36” |
36” (914) |
4” (101) |
11” (279) |
5” (127) |
8” (203) |
6-3/4” (171) |
3-1/4” (83) |
8-1/4” (210) |
17” (432) |
23-1/2” (572) |
1/2” (12.7) |
98 (44) |
|
| 42” |
42” (1066) |
4-3/4” (121) |
12-1/2” (318) |
6” (152) |
9” (229) |
7-7/8” (200) |
4-1/8” (104) |
9-5/8” (245) |
20” (508) |
26-3/4” (679) |
1/2” (12.7) |
168 (76) |
|
| 48” |
48” (1219) |
5-1/2” (140) |
14” (356) |
7” (178) |
10” (254) |
9” (229) |
5” (127) |
11” (279) |
23” (584) |
30” (762) |
2/3” (17) |
220 (100) |
|
Selection Guide
Step 1 – Select Size → 24–48 inch based on rope diameter
Step 2 – Confirm Mooring Load → Match vessel requirement
Step 3 – Confirm Surface Treatment: shop primer paint or bare
Step 4 – Confirm Certification & Testing → Which certificate + load test + MT
Structure & Components
Cast steel body | Open throat | Reinforced section | Smooth ground surface
Custom Attributes
- Material: ASTM A27 → Strength & durability
- Process: Heat treated → Improved mechanical properties
- Inspection: MT → Surface defect detection
- Verification: Load tested → Proven strength
- Surface: Grinding Smoothly → Rope protection
- Coating: Primer / bare → Flexible delivery
- Casting: Metal mold / wooden pattern / lost foam → Process options
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Inquiry Guide
Provide size, load requirement, certification requirement, and coating requirement.
How It Works
The rope passes through the kevel opening, guiding direction while minimizing wear and stress.
Applications
Ship mooring | River ship| Heavy-duty rope guiding
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; FEA verified strength, load tested, controlled casting process, smooth surface for rope protection.
Drawing & Photos

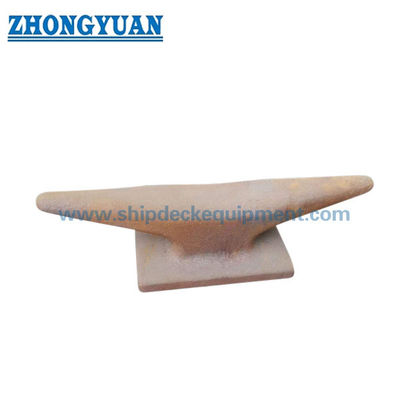

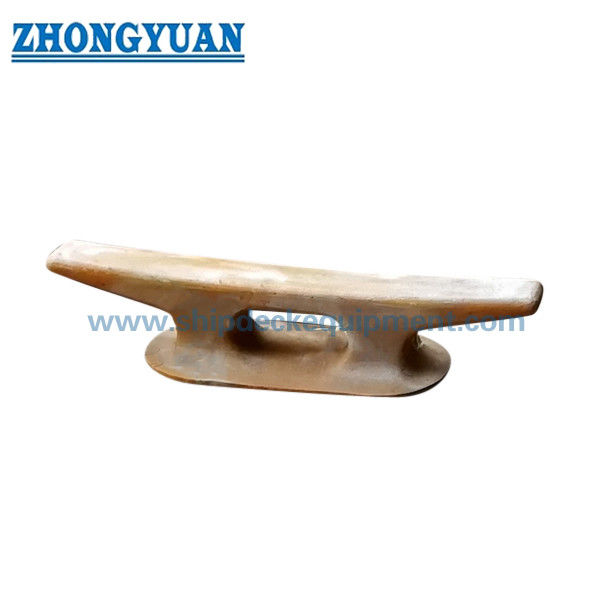

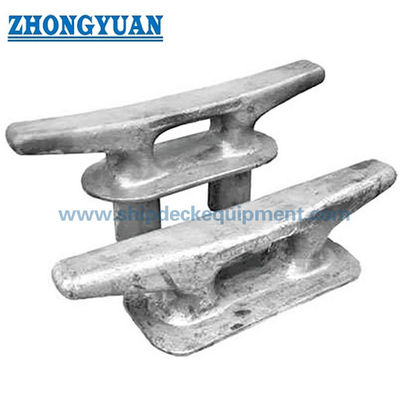

GA drawing | Product photos
Ordering
MOQ: 1 Unit | Delivery Time: 60-80 Days | Customization Available
FAQ
Q1: How is structural strength verified?
A: By finite element analysis and load testing to ensure reliability.
Q2: What casting quality controls are applied?
A: Strict material selection, controlled drying, heat treatment, and inspection.
Q3: Why avoid low-cost casting products?
A: Poor materials and improper heat treatment lead to unreliable strength and shorter service life.
