Vertical Guide Sheave Block Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Steel Wire Diameters: | 20mm~76mm | Material: | Cast Steel, C-Mn Steel, Alloy Steel, Mild Steel |
|---|---|---|---|
| Type: | Vertical, Stand, Horizontal, Bolted, Welded | Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint, Galvanized |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc | ||
| Highlight: | Corrosion Resistant Vertical Sheave,Self lubrication Vertical Sheave,Ship Towing Equipment Sheave |
||
Product Description

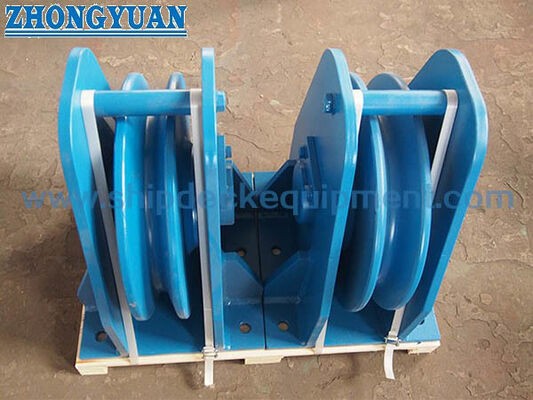

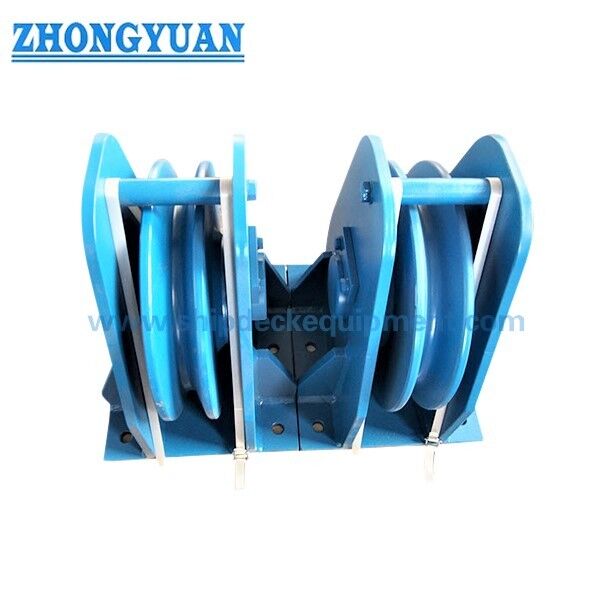

Vertical Guide Sheave Block Ship Towing Equipment
Description
Vertical guide sheave block is designed to guide the steel wire rope and change its direction. It is mainly used on engineering vessel, ferry, special purpose ship, dock. It is used together with winch. Our sheave has good wear (harden surface) and corrosion resistance, It is Self-lubrication, Vibration-absorption.
Main Technical Specifications
- Steel Wire diameters: 20mm~76mm
- Material: Cast Steel, C-Mn Steel, Alloy Steel, Mild Steel.
- Type: Vertical, Stand, Horizontal, Bolted, Welded
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| Steel Wire Rope Dia. (mm) |
A (mm) |
B (mm) |
H (mm) |
Φ (mm) |
| 20 | 280 | 390 | 220 | 340 |
| 25 | 330 | 480 | 265 | 425 |
| 32 | 406 | 590 | 340 | 520 |
| 38 | 362 | 690 | 380 | 600 |
| 44 | 560 | 815 | 450 | 710 |
| 52 | 610 | 1010 | 570 | 880 |
| 60 | 760 | 1100 | 600 | 930 |
| 68 | 920 | 1150 | 650 | 956 |
| 76 | 1350 | 1250 | 720 | 1120 |
Drawing of Vertical Guide Sheave Block
