Marine Guide Roller Ship Towing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Diameters: | 20mm~76mm | Material: | Cast Steel, C-Mn Steel, Alloy Steel, Mild Steel |
|---|---|---|---|
| Type: | Vertical, Inclined Stand, Horizontal | Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint, Galvanized |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc | ||
| Highlight: | steel marine pulley,CCS marine pulley,76mm ship pulley |
||
Product Description

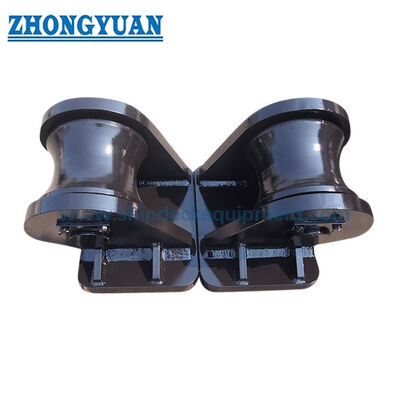

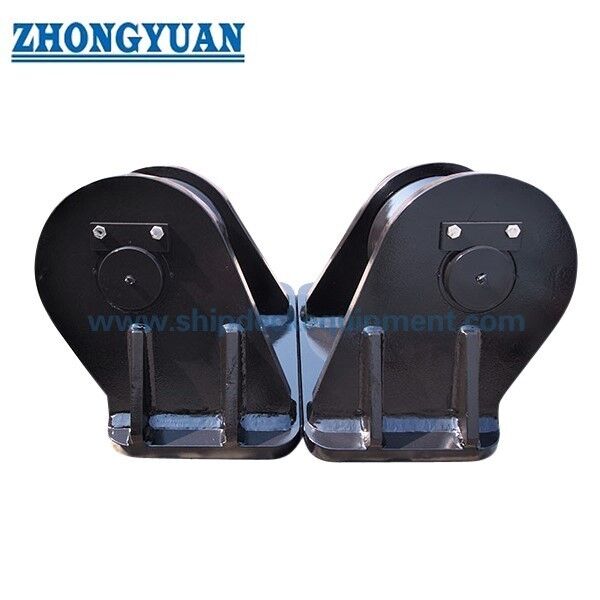

Marine Guide Roller Ship Towing Equipment
Description
Marine guide roller is designed to guide the steel wire rope and mooring ropes, chains. It is mainly used on engineering vessel, ferry, special purpose ship, dock. Our pulley has good wear (harden surface) and corrosion resistance, It is Self-lubrication, Vibration-absorption
Main Technical Specifications
- Diameters: 20mm~76mm
- Material: Cast Steel, C-Mn Steel, Alloy Steel, Mild Steel.
- Type: Vertical, Inclined Stand, Horizontal
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| DIAMETER | WIDTH | BORE (WITH BRONZE BUSHES FITTED). |
MAX. RECOMMENDEDWIRE ROPE DIAMETER. |
| 2.5/8″ 65mm | 3.1/2″ 90mm | 1.1/16″ 27.0 mm (NO BUSH) | |
| 4″ 102mm | 3″ 76mm | 1″ 25.4 mm | 8 mm |
| 4″ 102mm | 4″ 102mm | 1″ 25.4 mm | 10 mm |
| 5″ 127mm | 4″ 102mm | 1.1/4″ 32.0 mm | 12 mm |
| 6″ 152mm | 5″ 127mm | 1.1/4″ 32.0 mm | 14 mm |
| 6″ 152mm | 5″ 127mm | 1.1/2″ 38.1 mm | 14 mm |
| 7″ 178mm | 5″ 127mm | 1.1/4″ 32.0 mm | 16 mm |
| 7″ 178mm | 5″ 127mm | 1.1/2″ 38.1 mm | 16 mm |
| 7″ 178mm | 6″ 152mm | 1.1/2″ 38.1 mm | 16 mm |
| 8″ 203mm | 5″ 127mm | 1.1/2″ 38.1 mm | 20 mm |
Drawing of Marine Chain Roller Ship Towing Equipment
