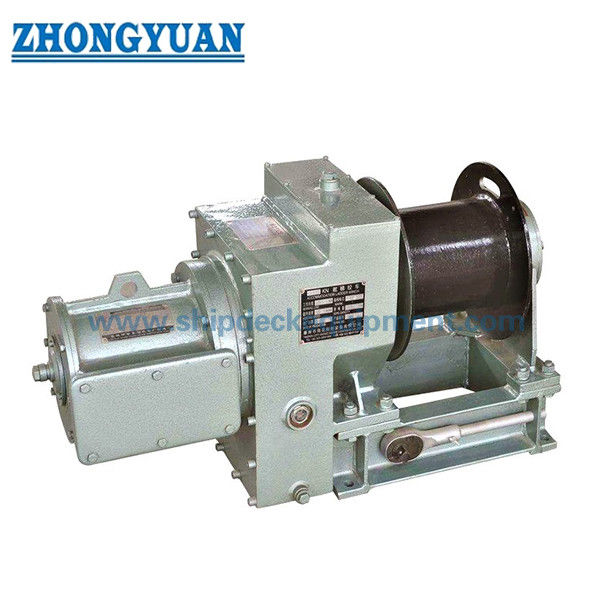

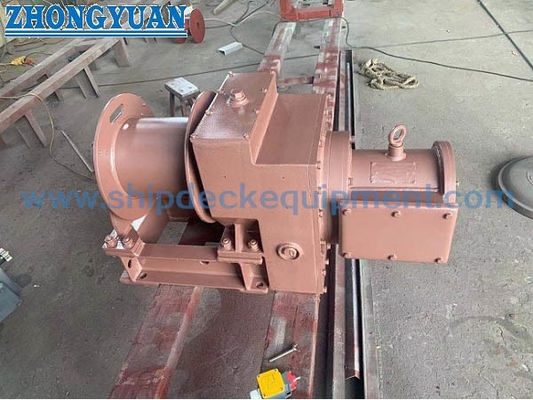

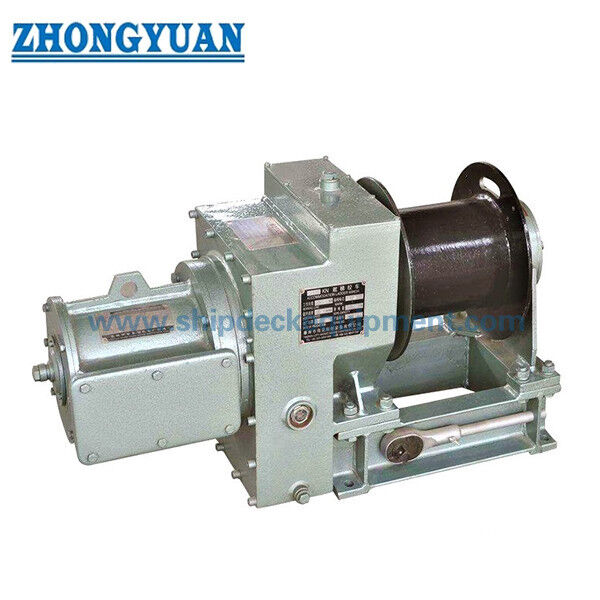

ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment

ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment

Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information

Standard:: ISO 7364:2016 Type:: Electric Single Drum
Factory Testing:: Running Test Without Load, Drum Load Test, Static Test Under 1,5 Holding Load; Working Load:: 10KN, 16KN;
Speed(m/min):: 8-12m/Min Wire Rope: Dia. 13 (mm);
Material:: Mild Steel, Control:: Local Or Remote Control
Classification Certificates:: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
Highlight:

10kn accommodation ladder winch

,

accommodation ladder winch iso7364

,

electric motor driven accommodation ladder winch

Product Description

ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment



Description:

ISO 7364 electric motor driven 10 / 16 KN marine accommodation ladder winch mainly used for handling accommodation ladders on commercial vessels as well as hoisting and sliding the pilot ladders. This winch is satisfied with international standard ISO7363 and Chinese standard GB/1392-1985, it is of compact structure equipped with electric control switch, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case ship’s lost power.

We can produce winches provided with hydraulic, pneumatic, electric or manual drive. Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment.



Main Technical Specification:

  1. Standard: ISO 7364:2016
  2. Type: Electric Single Drum
  3. Factory Testing: Running test without load, Drum load test, Static test under 1,5 holding load;
  4. Working Load: 10KN, 16KN;
  5. Speed(m/min):8-12m/Min
  6. Wire Rope Dia. 13 (mm)
  7. Material: Mild Steel,
  8. Power: Electric
  9. Control: Local or Remote Control
  10. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.



Main Technical Parameters:

Model 10kN 16kN
Drum Load (kN) 10 16
Supporting Load (kN) 30 48
Hoisting Speed (m/min) 8.09/10 9.85/11.64
Winding Wire Layer On Drum 3 3
Wire Capacity (m) 37 50
Wire Rope Size 6x37-13.0-170-1 6x37-13.0-170-1
Electric Transmission Ratio 75.43 69.48
Manual Transmission Ratio 30.73 30.73
Total Efficient 0.83 0.858
Electric Motor Type YZ132L-6-H YZ132L-6-H
Rated Output (kN) 2. 2/ 2.5 3.7/4.0
Rated Speed (rmp) 890/1100 930/1130
Voltage Frequency 380V 50HZ/440V 60HZ 380V 50HZ/440V 60HZ
Duty Factor (min) 30 30
ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment 0



Drawing of ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment



ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment 1
