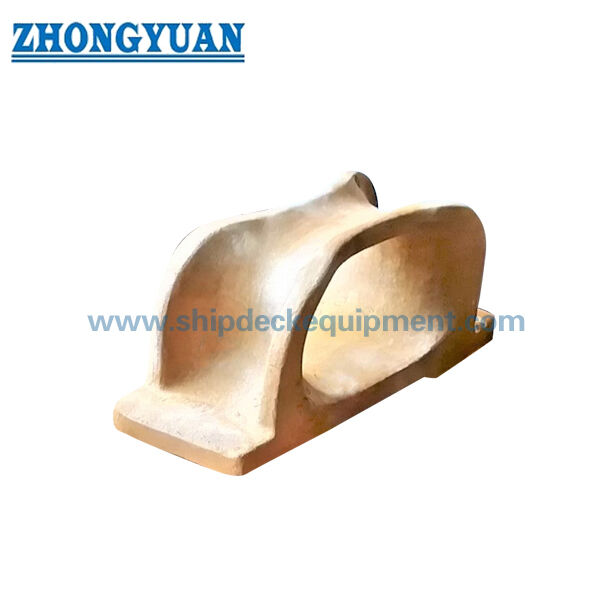

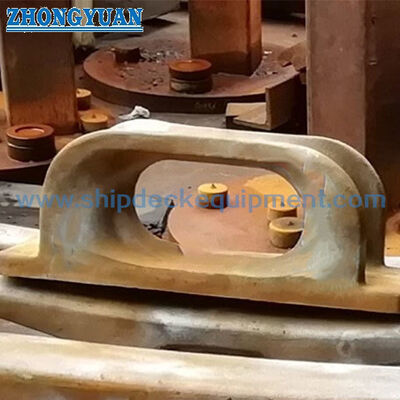

Casting Steel Closed Chock Material ASTM A27-70-36 Ship Mooring Equipment
Product Details:
Place of Origin: | China |
Brand Name: | Zhongyuan |
Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number: | Standard and Customized |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | As per quotation |
Packaging Details: | Pallet or Customized |
Delivery Time: | As per offer |
Payment Terms: | TT, L/C, Etc. |
Supply Ability: | Satisfy clients needs |
Detail Information |
|||
Model Type: | Closed Chock; | Type: | 480, 490, 14 Or As Customized |
---|---|---|---|
Material Grade: | Mild Steel, Casting Steel; | Quality Control: | Heat Treatment; Material Mechanical Test, |
Surface Treatment: | Sandblasting To S2.5 | Certificate: | ABS Approval, Mill's Material Certificate. |
Highlight: | ship mooring equipment casting steel,closed chock material ship mooring equipment,ship mooring equipment astm a27 70 36 |
Product Description
Casting Steel Closed Chock Material ASTM A27-70-36 Ship Mooring Equipment
Description
Casting steel closed chock is made of material ASTM A27-70-36 or equivalent and has 3 types. The surface of the closed chocks is smooth and free from burs which may cut the mooring rope. Casting steel has been heat treated before delivery with good mechanical property and surface quality. Magmatic examination or dye penetration test will be carried out as required for free of sub-surface defects.
Main Technical Specification
- Model Type: closed chock;
- Types: 480, 490, 14 or as customized
- Material Grade: C-Mn Casting Steel ASTM A27-70-36 or equivalent;
- Surface treatment: Sandblasting
- Certificate: ABS approval, Mill’s material certificate.
- Quality Control: Material Mechanical Test, Heat treatment, Magmatic examination or dye penetration test if required
Main Technical Parameters:
Model | Description | Dimensions In Inches (mm) |
LBS (KGS) |
|||||||||
A | B | C | D | E | F | G | H | I | J | |||
480 | Closed Chock, 9" |
9" (229) |
27.75" (705) |
10.13" (257) |
12" (305) |
5.25" (133) |
6" (152) |
2.06" (52) |
1.5" (38) |
1 .375" (35) |
1.125" (29) |
176 (80) |
490 | Closed Chock, 12" |
12" (305) |
36" (914) |
13.38" (340) |
16" (406) |
7" (178) |
8" (203) |
2.63" (67) |
1.88" (48) |
1.75" (44) |
1.5" (38) |
455 (206) |
14 | Closed Chock, 14" |
14" (356) |
42" (1066) |
15.63" (397) |
18.75" (476) |
8.17" (208) |
9.38" (239) |
3.06" (78) |
2.19" (56) |
2" (51) |
1.75" (44) |
725 (329) |
Drawing of Casting Steel Closed Chock Material ASTM A27-70-36 Ship Mooring Equipment
