Casting Steel Single Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment

Casting Steel Single Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment

Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information

Model Type: Single Bitt Bollard; Type: 8”, 10” Thru Deck Heavy Duty And Flush Type;
Material Grade: ASTM A27-70-36 C-Mn Casting Steel Or Equivalent; Quality Control: Material Mechanical Test, Heat Treatment, X-Ray, Magmatic Examination Or Dye Penetration Test If Required;
Surface Treatment: Sandblasting To S2.5 Certificate: ABS Approval, And Mill’s Material Certificate With Test Report.
Highlight:

casting steel ship bollard

,

single bitt ship mooring bollards

,

astm a27-70-36 ship mooring bollards

Product Description

Casting Steel Single Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment


Description
Casting steel single bitt bollard is made of material ASTM A27-70-36 or equivalent and has 4 types. The surface of the single bitt bollard is smooth and free from burs which may cut the mooring rope. Casting steel has been heat treated before delivery with good mechanical property and surface quality. Dye penetration test or Magmatic examination will be carried out as required for free of sub-surface defects. We can also satisfy clients’ needs for X-Ray test in the way of the critical area where the force concentrate at the bitt bollard.

Main Technical Specification

  1. Model Type: Single Bitt Bollard;
  2. Types: 8”, 10” Thru Deck Heavy Duty and Flush type;
  3. Material Grade: ASTM A27-70-36 C-Mn Casting Steel or equivalent;
  4. Surface treatment: Sandblasting
  5. Quality Control: Material Mechanical Test, Heat treatment, X-Ray, Magmatic examination or dye penetration test if required;
  6. Certificate: ABS approval, and Mill’s material certificate with test report.


Main Technical Parameters:

Description

Dimensions In Inches

(mm)

lbs

(kgs)

A (Ø) B C D (Ø) E (Ø) F G (Ø) H I
Single Bitt 8” Square Base, Thru Deck Heavy Duty

8”

(203)

21”

(533)

12”

(305)

12”

(305)

9.63”

(245)

14”

(356)

5”

(127)

1”

(25)

1.5”

(38)

370

(168)

Single Bitt 8” Round Base, Thru Deck

8”

(203)

16”

(406)

11”

(279)

12”

(305)

10.25”

(260)

14”

(356)

6”

(152)

1”

(25)

1”

(25)

260

(117)

Single Bitt 10” Round Base, Thru Deck

10”

(254)

18”

(457)

12”

(305)

13.5”

(343)

10”

(254)

14”

(356)

8”

(203)

1.46”

(37)

1”

(25)

293

(132)

Single Bitt 10” Round Base, Flush type

10”

(254)

18”

(457)

N/A

13.5”

(343)

-

14”

(356)

8”

(203)

1.46”

(37)

1”

(25)

190

(86)


Description Dimensions In Inches
(mm)
lbs
(kgs)
Single Bitt 8”
Square Base,
A B(Ø) C (Ø) D E F

160

(73)

8”

(203)

14”

(356)

11”

(279)

7”

(178)

1” ((25)

16”

(406)

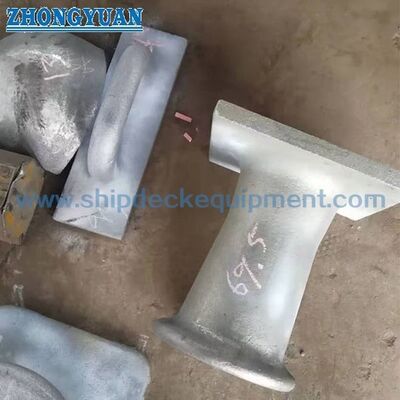

Casting Steel Single Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment 0

Drawing of Casting Steel Single Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment

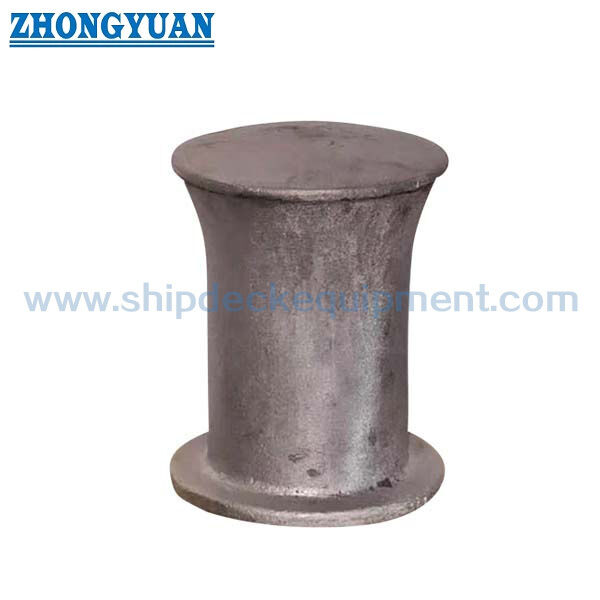

Casting Steel Single Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment 1

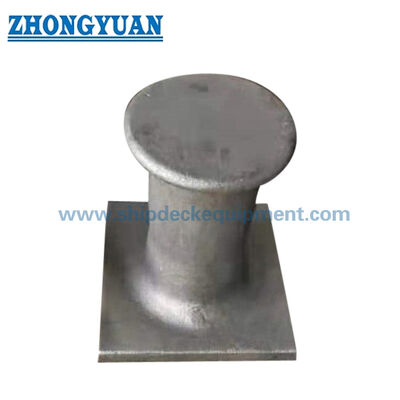

Casting Steel Single Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment 2

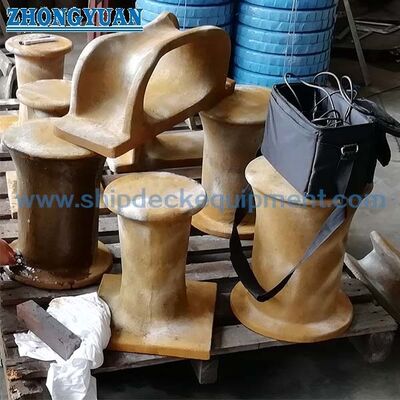

Casting Steel Single Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment 3
