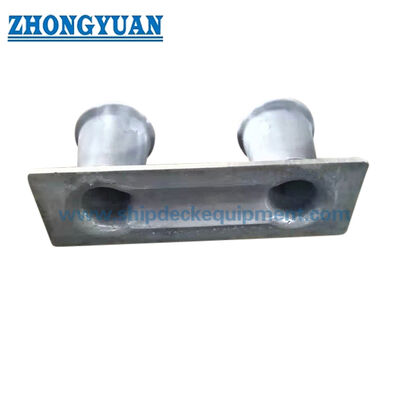

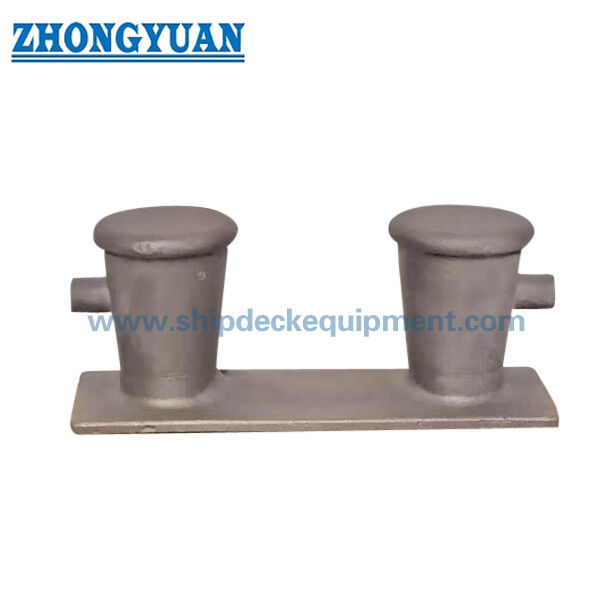

Casting Steel Double Bitt Bollard With Horns Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Model Type: | Double Bitt Bollard; | Type: | 8”, 10” With Or Without Horns; |
|---|---|---|---|
| Material Grade: | ASTM A27-70-36 C-Mn Casting Steel Or Equivalent; | Quality Control: | Material Mechanical Test, Heat Treatment, X-Ray, Magmatic Examination Or Dye Penetration Test If Required; |
| Surface Treatment: | Sandblasting, Can Be Shop Primer Painted; | Certificate: | ABS Approval, And Mill’s Certificate With Material Property Test Report. |
| High Light: | ship mooring bollard casting steel,double bitt ship mooring bollard,astm a70 ship bollard |
||
Product Description
Casting Steel Double Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment
Description
Casting steel double bitt bollard is made of material ASTM A27-70-36 or equivalent and has 8” and 10” with or without horns. The surface of the single bitt bollard is smooth and free from burs which may cut the mooring rope. Casting steel has been heat treated before delivery with good mechanical property and surface quality. Dye penetration test or Magmatic examination will be carried out as required for free of sub-surface defects. We can also satisfy clients’ needs for X-Ray test in the way of the critical area where the force concentrates at the bitt bollard.
Main Technical Specification
- Model Type: Double Bitt Bollard;
- Types: 8”, 10” with or without horns;
- Material Grade: ASTM A27-70-36 C-Mn Casting Steel or equivalent;
- Surface treatment: Sandblasting, can be shop primer painted;
- Quality Control: Material Mechanical Test, Heat treatment, X-Ray, Magmatic examination or dye penetration test if required;
- Certificate: ABS approval, and Mill’s certificate with material property test report.
Main Technical Parameters:
| Description |
Dimensions In Inches (mm) |
LBS (KGS) |
||||||||||||
| A | B | C | D (Ø) | E | F (Ø) | G | H | I | J | K | L (Ø) | M | ||
| Double Bitt 8” |
40” (1016) |
14” (336) |
16” (406) |
11” (279) |
8” (203) |
7” (177) |
2” (51) |
2” (51) |
1.25” (32) |
.72” (18) |
- | - | - |
320 (145) |
| Double Bitt 8” With Horns |
40” (1016) |
14” (336) |
16” (406) |
11” (279) |
8” (203) |
7” (177) |
2” (51) |
2” (51) |
1.25” (32) |
.72” (18) |
10” (254) |
3.5” (89) |
.3” (8) |
331 (150) |
| Double Bitt 10” |
45” (1143) |
15” (381) |
18” (457) |
13.5” (343) |
9” (228) |
9” (228) |
2.25” (57) |
2” (51) |
1.25” (32) |
.75” R (19) |
- | - | - |
574 (260) |
| Double Bitt 10” With Horns |
45” (1143) |
15” (381) |
18” (457) |
13.5” (343) |
9” (228) |
9” (228) |
2.25” (57) |
2” (51) |
1.25” (32) |
.75” R (19) |
11” (279) |
3.5” (89) |
.3” (8) |
579 (262) |
Drawing of Casting Steel Double Bitt Bollard ASTM A27-70-36 Ship Mooring Equipment
