Cb/T 290 Anchor Chain Roller Wheel Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Technical Standard: | CB/T 290-1995; | Type: | Roller Type, Deck Welded |
|---|---|---|---|
| Chain Size: | 12.5mm To 68mm; | Materials: | ZG230-450 Casting Steel, Stainless Steel, C-Mn Steel, |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. |
| Weight:: | 12.7kg To 832.3kg; | ||
| High Light: | ship mooring anchor chain wheel,cb/t 290 anchor chain wheel,anchor chain wheel mooring in ship |
||
Product Description

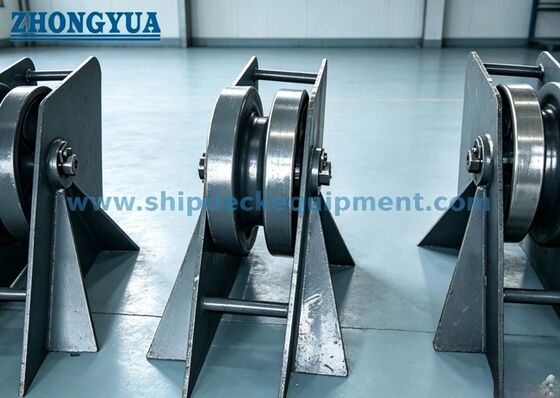

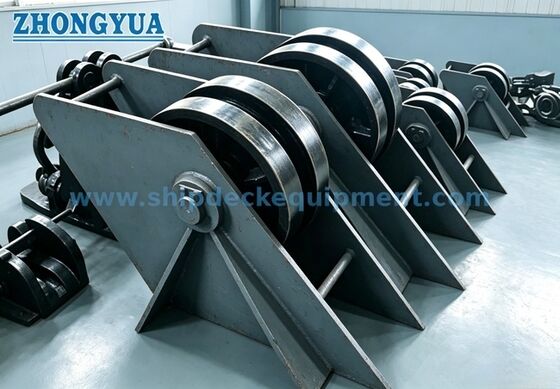

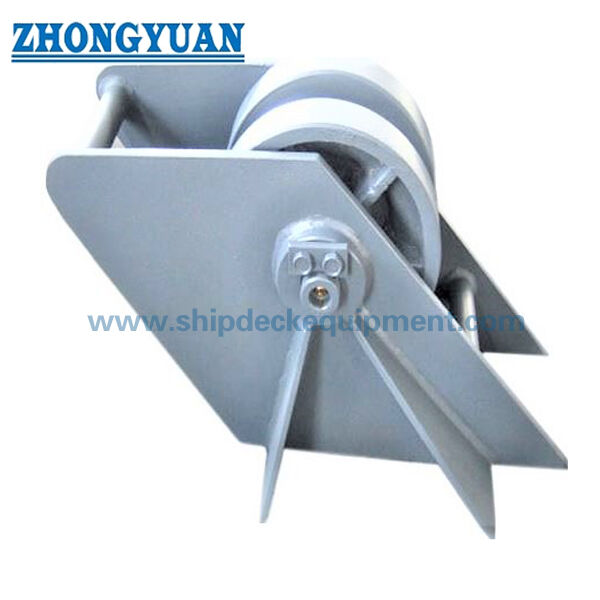

CB/T 290 Anchor Chain Roller Wheel Ship Mooring Equipment
Description
CB/T 290 anchor chain roller wheel is either welded on the deck or bolted mounting and positioned between chain hawse pipe and chain stopper. It is for the purpose that the chain can be moved smoothly and adjust the anchor position to be suit properly in the anchor recess. It can be used without combining with anchor chain stopper. The wheel is made of casting and the side wall is made of mild steel. Wheel is moving around the well-greased shaft.
Main Technical Specifications:
- Standard CB/T 290-1995;
- Application: Used to guide the direction of anchor chains applicable to small and medium size ships;
- Weight: 12.7kg to 832.3kg;
- Materials: ZG230-450 Casting Steel, Stainless Steel, C-Mn Steel,
- Nominal Diameter of Anchor Chain 12.5mm to 68mm;
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| Type | Chain Dia. (mm) |
D | d | L | B | H | Weight (kg) |
| 14 | 12.5-14 | 154 | 26 | 164 | 94 | 150 | 12.7 |
| 17.5 | 16-17.5 | 192 | 32 | 186 | 108 | 170 | 21 |
| 20.5 | 19-20.5 | 226 | 38 | 208 | 122 | 210 | 32.6 |
| 24 | 22-24 | 264 | 42 | 236 | 142 | 240 | 50 |
| 28 | 26-28 | 308 | 48 | 262 | 160 | 280 | 74 |
| 32 | 30-32 | 352 | 54 | 292 | 178 | 310 | 104.9 |
| 36 | 34-36 | 396 | 58 | 319 | 201 | 360 | 144.4 |
| 40 | 38-40 | 440 | 64 | 349 | 219 | 390 | 189.8 |
| 44 | 42-44 | 484 | 70 | 377 | 239 | 430 | 239.9 |
| 48 | 46-48 | 528 | 74 | 405 | 259 | 470 | 305.5 |
| 52 | 50-52 | 572 | 78 | 430 | 280 | 510 | 370.3 |
| 56 | 54-56 | 616 | 82 | 466 | 302 | 540 | 453.6 |
| 60 | 58-60 | 660 | 88 | 492 | 320 | 580 | 572.3 |
| 64 | 62-64 | 704 | 94 | 526 | 342 | 620 | 687.5 |
| 68 | 66-68 | 748 | 98 | 552 | 360 | 660 | 832.3 |
Drawing of CB/T 290 Anchor Chain Roller Wheel Ship Mooring Equipment
