17–36mm Bar Type Anchor Chain Stopper | JIS F2023 for Small Vessels Mooring
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Technical Standard: | JIS F2023-1976 | Type: | Bar Type |
|---|---|---|---|
| Chain Size: | 17-36mm | Materials: | Casting Steel, Steel Forging, |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. |
| Others: | Can Be Customized As Shipyard Request | Weight401 To 2900kg;: | 17 To 92 Kg |
| Nominal Size:: | 19 - 36 | ||
| Highlight: | JIS F 2031 Anchor Chain Stopper |
||
Product Description
17–36mm Bar Type Anchor Chain Stopper | JIS F2023 for Small Vessels Mooring
Product Overview
JIS F2023 bar type anchor chain stopper is a compact anchoring device designed for small chain sizes.
It is mainly used on small vessels, barges, and pontoons to hold anchor chains and share load with the windlass.
Manufactured from cast steel with controlled casting and inspection processes, it ensures reliable chain stopping performance.
The design ensures proper engagement between the chain and dog, achieving effective and secure chain locking.
Quick Specifications
- Chain Size: 17–36 mm → Defines anchor chain compatibility for small vessels
- Standard: JIS F2023-1976 → Marine compliance standard
- Type: Bar Type → Compact design without roller
- Function: Chain Stopping → Shares load with windlass
- Installation: Welded / Bolted → Flexible deck installation
- Material: Cast Steel / Forged Parts → Strength and durability
- Inspection: MT + UT → Ensures casting and welding quality
- Surface: Sa2.5 + Primer → Corrosion protection
- Application: Small vessels → Cost-effective anchoring solution
Main Technical Parameters
| Number | 19 | 22 | 25 | 28 | 32 | 36 |
| Diameter of apply Anchor Chain | 17~19 | 20~22 | 23~25 | 26~28 | 30~32 | 34~36 |
| A | 190 | 216 | 241 | 270 | 305 | 342 |
| B | 270 | 310 | 345 | 385 | 435 | 490 |
| C | 200 | 226 | 256 | 280 | 320 | 254 |
| D | 134 | 153 | 175 | 193 | 220 | 246 |
| Weight(kg) | 17 | 24 | 33 | 44 | 68 | 92 |
Selection Guide
Step 1 – Select Chain Size → 17–36 mm based on anchor chain
Step 2 – Confirm Vessel Type → Small ship, barge, or pontoon
Step 3 – Confirm Installation Method → Welded or bolted base
Step 4 – Confirm Chain Lead Angle → Optional base to match hawse pipe and windlass alignment
Step 5 – Confirm Quality Requirement → MT inspection + UT for welding parts
Step 6 – Confirm Surface Treatment → Shop primer or customized coating
Structure & Components
Cast steel body | Bar type locking mechanism | Forged dog | Reinforced base | Optional mounting base
Custom Attributes
- Chain Size: 17–36 mm → Small vessel compatibility
- Function: Chain stopping → Load sharing with windlass
- Dog: Forged → Ensures wear resistance and strength
- Base: Welded / Bolted → Flexible installation
- Alignment: Adjustable base → Matches chain angle
- Inspection: MT + UT → Quality assurance
- Surface: Coated → Corrosion protection
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Inquiry Guide
Provide chain size, vessel type, installation method, chain angle condition, and coating requirement.
How It Works
The anchor chain is locked by the bar and dog mechanism. The stopper holds the chain and transfers part of the load from the windlass, ensuring safe anchoring.
Applications
Small vessels | Barges | Pontoons | Light-duty anchoring systems
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; cost-effective design, reliable chain locking, controlled casting quality, adaptable installation.
Drawing & Photos

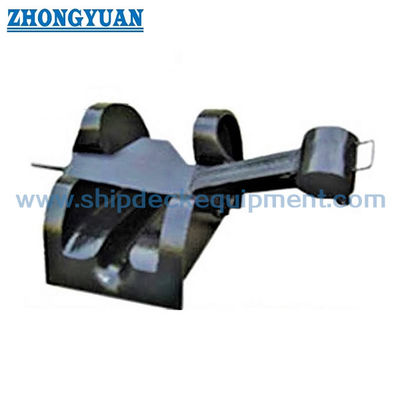

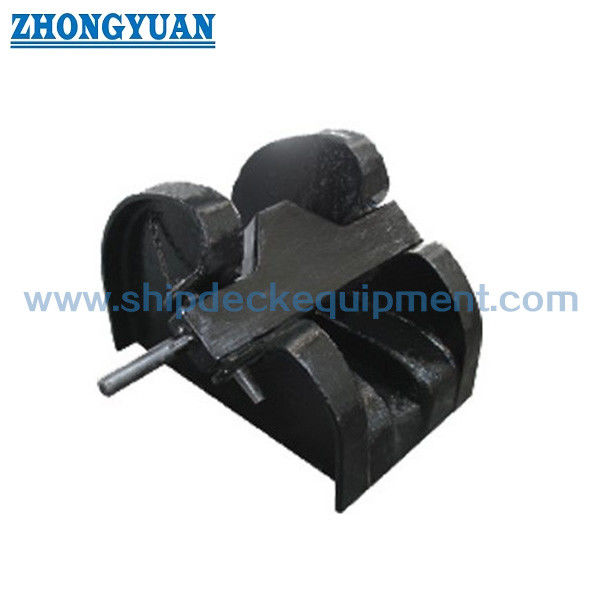

GA drawing | Product photos
Ordering
MOQ: 1 Unit | Delivery Time: 30–60 Days | Customization Available
FAQ
Q1: What is the difference between bar type and roller type chain stopper?
A: Bar type is simpler and suitable for small chains, while roller type is used for larger chains with smoother operation.
Q2: How to ensure proper chain engagement?
A: The design ensures matching between chain and dog, and proper alignment must be confirmed during installation.
Q3: Can installation be adjusted for chain angle?
A: Yes, optional base can be added to match hawse pipe and windlass chain lead angle.
