Chain DIN 763 With German Standard
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Type: | Cranked Link Chain | Material: | Alloy Steel, High Tensile, Heat Treated. |
|---|---|---|---|
| Surface Treatment: | Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated | Structure: | Flash Butt Welded Chain |
| Feature: | Heat Resistant | Chain Size: | 2mm To 32mm |
| Color: | Self Color, Red ,Green, Or As To Your Request | Application: | Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine |
| High Light: | German Standard DIN 763 Chain,Long Link Chain German Standard,EN standards Long Link Chain |
||
Product Description

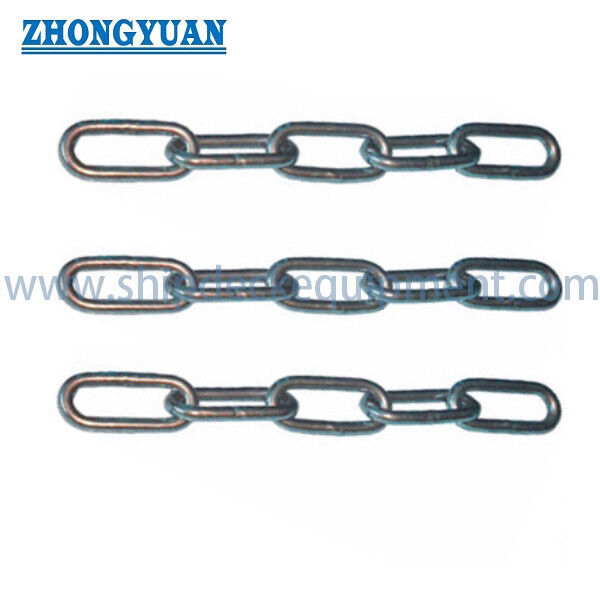

Chain DIN 763 With German Standard
Description:
Chain DIN 763 is a kind of welded long link chain. Long link chain should never be used as a sling in either "basket" hitch or chokes configuration. Chain din 763 is non-calibrated and tested. The chain is made to DIN 763 and EN standards, with links side welded for extra strength and quality tested. The chain is suitable for all general purposes, engineering, industrial, agricultural and marine applications etc.The protective finishes of the chain din 763 are zinc plated, black painted, hot dip galvanized, powder coated, or as your request.
Main Technical Specifications:
- Type:Cranked Link Chain
- Material:Alloy Steel, High Tensile, Heat Treated.
- Surface Treatment:Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated
- Structure:Flash Butt Welded Chain
- Feature:Heat Resistant
- Chain Size:2mm to 32mm
- Color: Self Color, Red ,Green, or as to your request
- Application: Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine
Main Technical Parameters:
| DIN763 A/C Link Chain | Inside Length(t) | Outside Width(b) | Working Load | Test Load | Breaking Load | Weight Per M | |||
| mm | ±mm | mm | ±mm | mm | ±mm | kg | n | n | kg |
| 2.0 | 0.5 | 22 | 1.0 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 |
| 2.5 | 24 | 1.1 | 10 | 0.5 | 40 | 800 | 2000 | 0.10 | |
| 3 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 | |
| 3.5 | 28 | 1.3 | 14 | 0.7 | 80 | 1540 | 3850 | 0.20 | |
| 4 | 32 | 1.5 | 16 | 0.8 | 100 | 2500 | 6500 | 0.27 | |
| 4.5 | 34 | 1.7 | 18 | 0.9 | 128 | 3000 | 8000 | 0.35 | |
| 5 | 35 | 1.8 | 20 | 1.0 | 160 | 4000 | 10000 | 0.43 | |
| 5.5 | 38.5 | 1.8 | 22 | 1.1 | 195 | 4200 | 10500 | 0.52 | |
| 6 | 42 | 2.0 | 24 | 1.2 | 200 | 5000 | 12000 | 0.63 | |
| 7 | 49 | 2.5 | 28 | 1.4 | 300 | 7500 | 19000 | 0.86 | |
| 8 | 52 | 2.5 | 32 | 1.6 | 400 | 10000 | 25000 | 1.10 | |
| 8.5 | 56 | 2.8 | 34 | 1.7 | 460 | 10200 | 25500 | 1.25 | |
| 9 | 59 | 3.0 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
| 10 | 1 | 65 | 3.2 | 40 | 2.0 | 630 | 16000 | 40000 | 1.75 |
| 11 | 72 | 3.4 | 44 | 2.0 | 790 | 15800 | 47500 | 2.11 | |
| 12 | 78 | 3.6 | 48 | 2.3 | 940 | 18000 | 56500 | 2.55 | |
| 13 | 82 | 4.0 | 52 | 2.5 | 1000 | 25000 | 63000 | 2.95 | |
| 16 | 100 | 5.0 | 64 | 3.2 | 1600 | 40000 | 100000 | 4.45 | |
| 18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
| 19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
| 20 | 120 | 6.0 | 75 | 3.8 | 2500 | 50000 | 160000 | 7.00 | |
| 22 | 127 | 6.0 | 82 | 4.0 | 3170 | 63300 | 190000 | 8.55 | |
| 25 | 140 | 6.6 | 85 | 4.2 | 4090 | 81700 | 245000 | 10.90 | |
| 28 | 152 | 7.0 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.90 | |
| 32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.20 | |
