Chain DIN 5685 With German Standard
Product Details:
Place of Origin: | China |
Brand Name: | Zhongyuan |
Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number: | Standard and Customized |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | As per quotation |
Packaging Details: | Pallet or Customized |
Delivery Time: | As per offer |
Payment Terms: | TT, L/C, Etc. |
Supply Ability: | Satisfy clients needs |
Detail Information |
|||
Type: | Cranked Link Chain | Material: | Alloy Steel, High Tensile, Heat Treated. |
---|---|---|---|
Surface Treatment: | Galvanized, Black Painted, Self Color, Polishing, Powder Coated | Structure: | Flash Butt Welded Chain |
Feature: | Heat Resistant | Usage: | Drag Chain |
Color: | Self Color, Red ,Green, Or As To Your Request | Application: | Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine |
Highlight: | DIN 5685 Short Length Links Chain,German Standard Short Length Links Chain |
Product Description

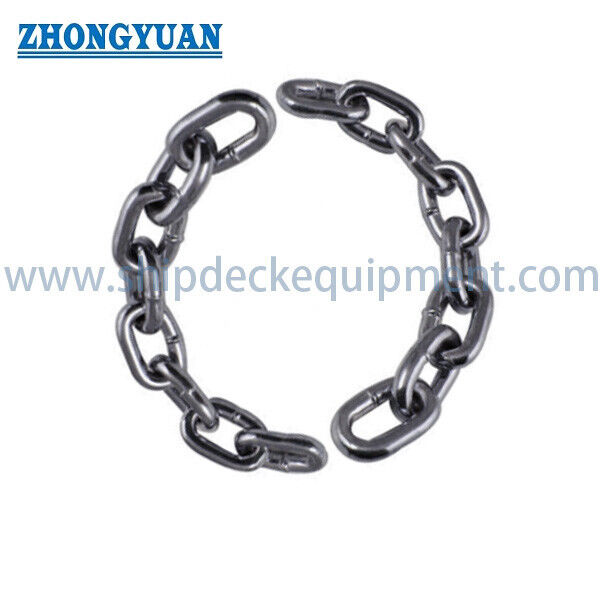

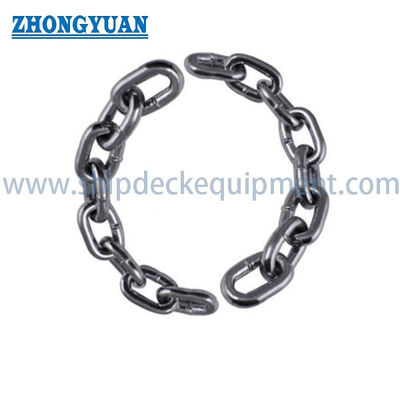

Chain DIN5685 With German Standard
Chain din 5685 with German standard are a sort of welded, round steel chain with long or short-length links that are neither calibrated nor tested. These chain are made to German Standard. The material of chain is in line with DIN 17151. The chain are not suitable for lifting applications, nor being subjected to static loads. There are two types of the chain din 5685, A (short) and C (long). Finishes of chain din 5685 are self-colored, black painted, bright zinc painted, and hot dip galvanized.
Main Technical Specifications:
- Type:Cranked Link Chain
- Material:Alloy Steel, High Tensile, Heat Treated.
- Surface Treatment:Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated
- Structure:Flash Butt Welded Chain
- Feature:Heat Resistant
- Usage:Drag Chain
- Color: Self Color, Red ,Green, or as to your request
- Application: Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine
Main Technical Parameters:
Size(d) | Inside Length (t) | Outside Width(b) | Weight Per 100m | Working Load |
Breaking Load | Type Of Link |
mm | mm | mm | kg | n | n | |
2 | 12 | 8 | 7 | 500 | 1250 | A |
22 | 6 | C | ||||
2.5 | 14 | 10 | 11 | 750 | 2000 | A |
24 | 10 | C | ||||
3 | 16 | 12 | 16.5 | 1120 | 2800 | A |
26 | 15 | C | ||||
3.5 | 18 | 14 | 22.5 | 1500 | 3850 | A |
28 | 20 | C | ||||
4 | 19 | 16 | 30 | 2000 | 5000 | A |
32 | 27 | C | ||||
4.5 | 20 | 18 | 39.5 | 2500 | 6300 | A |
34 | 35 | C | ||||
5 | 21 | 20 | 50 | 3150 | 7750 | A |
35 | 43 | C | ||||
5.5 | 23 | 22 | 60.5 | 3800 | 9500 | A |
38.5 | 52 | C | ||||
6 | 24 | 24 | 73 | 4500 | 11500 | A |
42 | 63 | C | ||||
6.5 | 26 | 26 | 86 | 5400 | 13500 | A |
45.5 | 74 | C | ||||
7 | 28 | 28 | 100 | 6000 | 15000 | A |
49 | 86 | C | ||||
8 | 32 | 32 | 130 | 8000 | 20000 | A |
52 | 110 | C | ||||
8.5 | 34 | 34 | 149 | 9000 | 22500 | A |
56 | 125 | C | ||||
9 | 36 | 36 | 165 | 10000 | 25000 | A |
59 | 141 | C | ||||
10 | 40 | 40 | 205 | 12500 | 31000 | A |
65 | 175 | C | ||||
11 | 44 | 40 | 250 | 15000 | 38000 | A |
72 | 211 | C | ||||
12 | 48 | 48 | 290 | 18000 | 45000 | A |
78 | 255 | C | ||||
13 | 52 | 52 | 345 | 21200 | 53000 | A |
82 | 295 | C |
