5–250kN Electric Hydraulic Mooring Capstan for Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Function: | Mooring | Working Load: | 5KN To 250KN |
|---|---|---|---|
| Warping Head Diameter: | 200-700 Mm | Speed(m/min): | 9-18m/Min |
| Rope Diameter: | 20 - 80 (mm) | Material: | Stainless Steel, Carbon Steel, Casting |
| Power: | Electric Hydraulic, Electric | Control: | Local Or Remote Control |
| Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA | ||
| Highlight: | Marine Hydraulic Mooring Capstan,Electric Hydraulic Mooring Capstan,Marine Electric Hydraulic Mooring Capstan |
||
Product Description

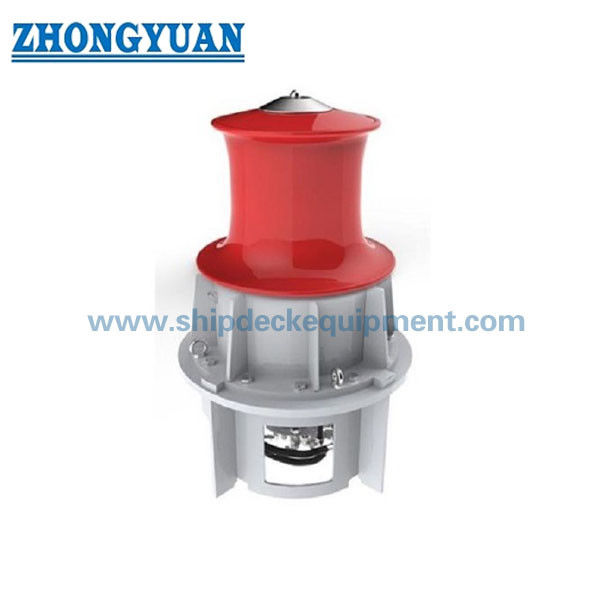

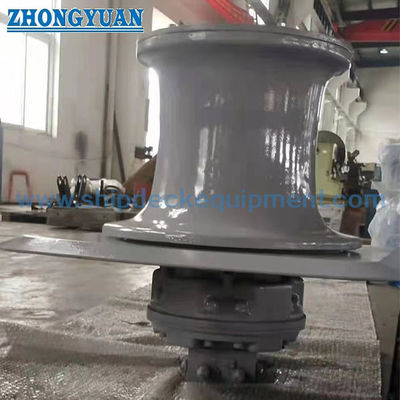

5–250kN Electric Hydraulic Mooring Capstan for Ship Deck Equipment
Product Overview
The marine electric hydraulic mooring capstan is a compact and high-torque deck equipment designed for quick and controlled mooring line handling.
Unlike drum winches, the capstan provides continuous rope pulling without storage, making it ideal for frequent operations and auxiliary mooring tasks.
This system is widely used on tugboats, small vessels, and as auxiliary equipment on large ships where flexibility and fast response are required.
Quick Specifications
- Working Load: 5–250 kN → Defines pulling capacity for different vessel sizes
- Speed: 9–18 m/min → Determines rope handling efficiency
- Warping Head Diameter: 250–700 mm → Matches rope size and improves grip
- Rope Diameter: 11–46 mm → Ensures compatibility with rope type
- Drive Type: Electric Hydraulic → Provides high torque and smooth control
- Control Type: Lever / Proportional → Enables precise operation
- Mounting Type: Vertical / Horizontal → Adapts to deck layout
- Power Range: 5.5–110 kW → Depends on working load
- Operation Mode: Continuous Pulling → No drum storage required
- Certification: CCS / ABS / DNV / LR / BV → Meets marine standards
Main Technical Parameters
| Working Load (kN) | Speed (m/min) | Rope Dia (mm) | Motor Power (kW) |
| 5 | 9–18 | Φ11 | 5.5 |
| 10 | 9–18 | Φ11 | 7.5 |
| 15 | 9–18 | Φ13 | 11 |
| 20 | 9–18 | Φ15 | 15 |
| 30 | 9–18 | Φ17.5 | 18.5 |
| 50 | 9–18 | Φ20.5 | 30 |
| 70 | 9–18 | Φ26 | 45 |
| 100 | 9–18 | Φ28 | 55 |
| 120 | 9–18 | Φ32.5 | 75 |
| 150 | 9–18 | Φ36.5 | 90 |
| 200 | 9–18 | Φ40 | 110 |
| 250 | 9–18 | Φ46 | 110 |
Selection Guide
Step 1 – Select Working Load → Determines required pulling force
Step 2 – Confirm Rope Diameter → Matches warping head size
Step 3 – Confirm Speed → Based on operation frequency
Step 4 – Select Control Type → Lever or proportional control
Step 5 – Confirm Mounting → Vertical or horizontal installation
Step 6 – Confirm Power → Based on duty cycle and load
Structure & Components
Warping head | Hydraulic motor | Gear reducer | Main shaft | Hydraulic power unit | Electric control console | Base frame
Custom Attributes
- Working Load: 5–250 kN → Defines capacity
- Speed: 9–18 m/min → Defines operation efficiency
- Rope Diameter: 11–46 mm → Defines compatibility
- Drive Type: Hydraulic → Ensures stable torque output
- Control System: Proportional → Enables precision operation
- Mounting Type: Deck mounted → Defines installation layout
- Operation Mode: Continuous → No rope storage required
Certification: CCS / ABS / DNV / LR → Compliance with marine rules
Custom Configuration & Inquiry Guide
Please provide working load, rope diameter, speed requirement, control type, and installation condition.
We will provide model selection, GA drawing, and technical proposal.
How It Works
The electric motor drives the hydraulic pump, which powers the hydraulic motor to rotate the warping head.
The rope is wrapped around the capstan head, and friction generates pulling force to control the line movement.
Applications
Tug boats | Small vessels | Deck auxiliary operations | Port handling | Offshore support vessels
Certifications & Advantages
CCS / ABS / DNV / LR certified; compact design, high torque output, fast operation, low maintenance, ideal for frequent use.
Drawing & Photos
General arrangement drawing | Structural drawing | Installation layout | Product photos
Ordering Information
MOQ: 1 Unit | Delivery Time: 60–90 Days | Payment: T/T, L/C | Customization: Available
FAQ
Q1: Capstan vs winch?
A: Capstan is for continuous pulling without storage, while winch includes drum for rope storage.
Q2: Vertical or horizontal type?
A: Depends on deck space and operation preference.
