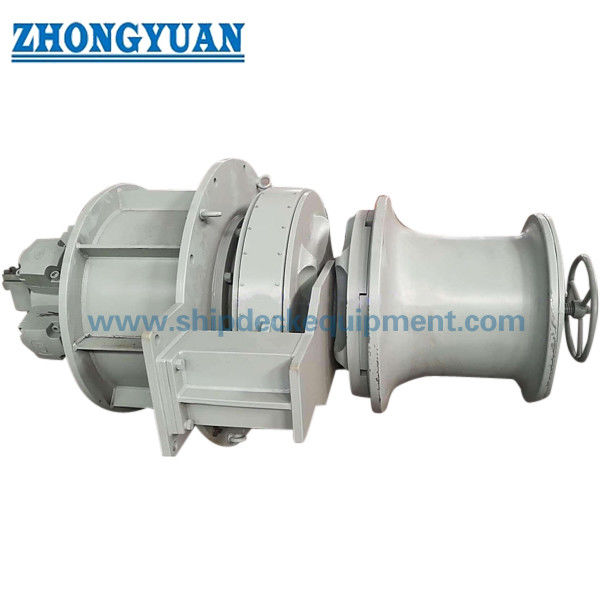

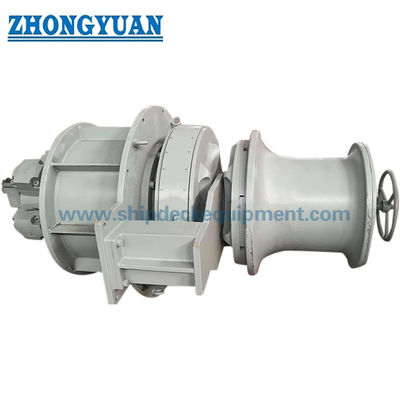

Electric Hydraulic Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Function: | Mooring & Hoisting Anchor | Working Load: | 5KN To 250KN |
|---|---|---|---|
| Warping Head Diameter: | 200-700 Mm | Warping Speed(m/min): | 9-18m/Min |
| Wire Rope Dia.: | 11 - 46 (mm) | Material: | Stainless Steel (Polished), Mild Steel, Casting |
| Power: | Electric Hydraulic | Control: | Local Or Remote Control |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc. | ||
| High Light: | Hydraulic mooring capstan,BV vertical anchor capstan,vertical anchor capstan |
||
Product Description
Electric Hydraulic Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment
Description:
Hydraulic Vertical Anchor & Mooring Capstan can be driven by hydraulic power unit, It is built as per Classification Rules and comply with international shipbuilding requirements for sea-going ships, coastal ships and Inland Water Way ships. It is suitable for limit area on deck.
Main Technical Specification:
- Function: Mooring & Hoisting Anchor
- Working Load: 5KN to 250KN
- Warping Head Diameter: 200-700 mm,
- Warping Speed(m/min):9-18m/Min
- Wire Rope Dia. 11 - 46 (mm)
- Material: Stainless Steel (Polished), Mild Steel, Casting
- Power: Electric Hydraulic
- Control: Local or Remote Control
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
Main Technical Parameters:
| Chain Dia. (mm) |
Working Load (KN) |
Nominal Speed (m/min) | Warping Load (KN) | Motor Power (KW) | ||
| AM2 | AM3 | Electric | Hydraulic | |||
| 12.5 | 6.6 | 14.6 | 9 | 5 | 2.2/0.75 | 2.2 |
| 14 | 8.3 | 17.2 | 9 | 6 | 2.2/0.75 | 3 |
| 16 | 10.9 | 20 | 9 | 8 | 2.2/0.75 | 4 |
| 17.5 | 13 | 14.6 | 9 | 10 | 3/1.3 | 4/5.5 |
| 19 | 15.3 | 17.2 | 9 | 10 | 4.3/1.7 | 5.5 |
| 20 | 17.9 | 20 | 9 | 15 | 4.3/1.7 | 5.5/7.5 |
| 22 | 20.6 | 23 | 9 | 15 | 6/2.5 | 7.5 |
| 24 | 24.5 | 27.4 | 9 | 20 | 8.5/3.5 | 7.5/11 |
| 26 | 28.7 | 32.1 | 9 | 20 | 8.5/3.5 | 11 |
| 28 | 33.3 | 37.2 | 9 | 25 | 8.5/3.5 | 11 |
| 30 | 38.3 | 42.8 | 9 | 30 | 11/11/7.5 | 15 |
| 32 | 43.5 | 48.6 | 9 | 30 | 11/11/7.5 | 15 |
| 34 | 49.1 | 54.9 | 9 | 40 | 16/16/11 | 15/8.5 |
| 36 | 55.1 | 61.6 | 9 | 40 | 16/16/11 | 18.5 |
| 38 | 61.4 | 68.9 | 9 | 50 | 16/16/11 | 18.5/22 |
| 40 | 68 | 76 | 9 | 60 | 22/22/16 | 22/30 |
| 42 | 75 | 83.8 | 9 | 60 | 22/22/16 | 22/30 |
| 44 | 82.3 | 92 | 9 | 70 | 22/22/16 | 30 |
| 46 | 89.9 | 100.5 | 9 | 80 | 30/30/22 | 30 |
| 48 | 97.9 | 109.4 | 9 | 80 | 30/30/22 | 30/37 |
| 50 | 106.3 | 118.8 | 9 | 90 | 30/30/22 | 37 |
| 52 | 114.9 | 128.4 | 9 | 100 | 30/30/22 | 37/45 |
| 54 | 123.9 | 138.5 | 9 | 100 | 45/45/30 | 45 |
| 56 | 133.3 | 149 | 9 | 120 | 45/45/30 | 45 |
| 58 | 143 | 159.8 | 9 | 120 | 45/45/30 | 45/55 |
| 60 | 153 | 171 | 9 | 140 | 45/45/30 | 55 |
| 62 | 163.4 | 182.6 | 9 | 150 | 45/45/30 | 55 |
| 64 | 174.1 | 194.6 | 9 | 160 | 60/60/45 | 55/75 |
| 66 | 185.1 | 206.9 | 9 | 160 | 60/60/45 | 75 |
| 68 | 196.5 | 219.6 | 9 | 180 | 60/60/45 | 75 |
| 70 | 208.3 | 232.8 | 9 | 200 | 60/60/45 | 75 |
Drawing of Electric Hydraulic Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment
