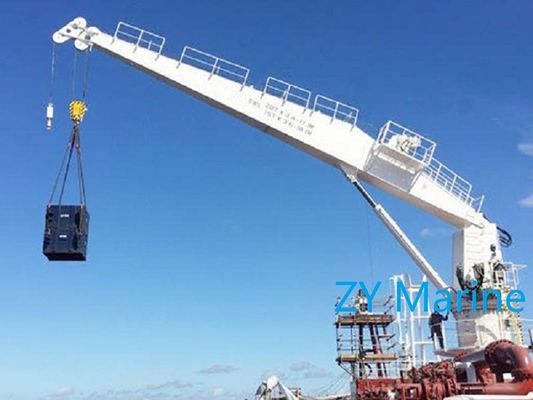

SWL 1T to 20T Hydraulic Slewing Crane with Straight Boom
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Boom Type: | Fixed Boom | Working Temperature: | -40 To 50℃ Etc. |
|---|---|---|---|
| Slewing Bearing: | 0-360° | Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA | ||
| Highlight: | 5t Hydraulic Slewing Crane,12.5m Hydraulic Slewing Crane |
||
Product Description

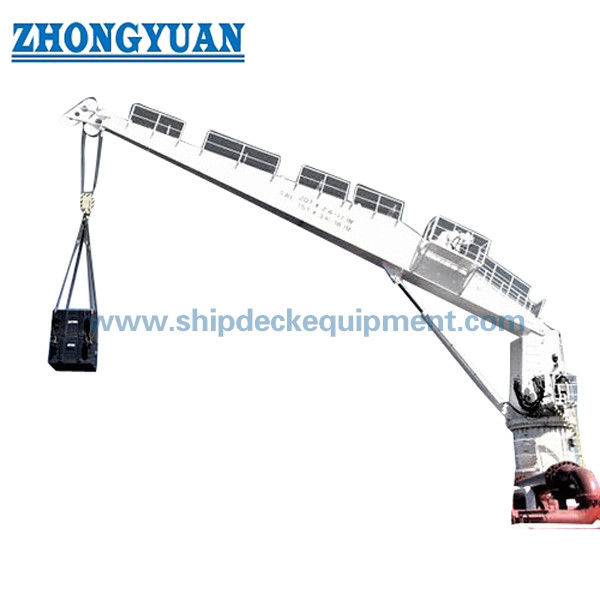

SWL 1T to 20T Hydraulic Slewing Crane With Straight Boom
Description:
SWL 1T to 20T Hydraulic Slewing Crane With Straight Boom is suitable for ship with large free deck area. Less price & less maintenance cost comparing with Knuckle boom crane.The cranes have been designed for a wide range of applications including shipboard, offshore platforms, fishing and sea farming industry.Safe working load range can be 1t to 20 t.
Main Technical Specifications:
- Safe working load(SWL): 1-20T;
- Boom Type: Straight boom;
- Single or double hydraulic cylinder
- Working Temperature:-40 to 50℃.
- Slewing bearing: 0-360°
- Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
- With or Without operator cabin,
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| SWL (Ton) |
Working Radius |
Slewing Speed (rpm) |
Hoisting Speed |
Luffing Time (Second) |
Motor Power |
Pedestal Dia. (Φ mm) |
| 1 | 2-10 | 0.8-1 | 10-15 | 40-50 | 7.5 | 700 |
| 1.5 | 2-10 | 0.8-1 | 10-15 | 40-50 | 7.5-11 | 800 |
| 2 | 2-12 | 0.8-1 | 10-15 | 40-50 | 15-22 | 950 |
| 3 | 2-12 | 0.8-1 | 10-15 | 40-50 | 22-30 | 1050 |
| 5 | 2-12 | 0.8-1 | 10-15 | 50-60 | 22-37 | 1100 |
| 10 | 2-12 | 0.6-0.9 | 10-15 | 60-70 | 45 | 1700 |
| 15 | 3-15 | 0.6-0.8 | 10-15 | 65-75 | 55 | 1800 |
| 20 | 3-15 | 0.6-0.8 | 10-15 | 70-80 | 132 | 1900 |
Drawing of Hydraulic Slewing Crane/5t 12.5m Hydraulic Fixed Boom Ship Crane Cargo Hose Davit Ship Deck Equipment
