500-2000kN Hydraulic Waterfall Towing Winch System | Marine Towing & Escort Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | TT, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Safety Pull Capacity: | 500-2000KN | Holding Capacity: | 1000-3200KN |
|---|---|---|---|
| Speed: | 5-10m/min | Drum Capacity: | To 1600m |
| Rope Dia.: | 11 – 90 (mm) | Control Position: | Remote And Local Control |
| Optional: | Load Measuring, Rope Speed And Length Measuring Device | Material: | Mild Steel |
| Surface Treatment: | Sandblasting To S2.5 + 3 Layers Of Epoxy Paint | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc. |
| Highlight: | Hydraulic Waterfall Winch,Waterfall Winch,10m/min dual drum winch |
||
Product Description

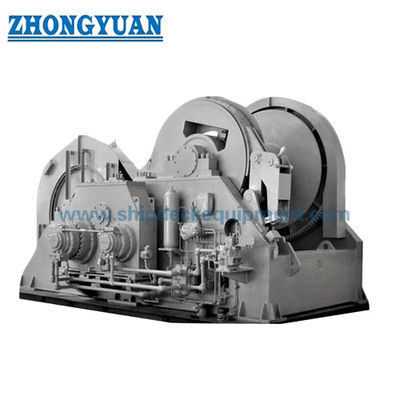

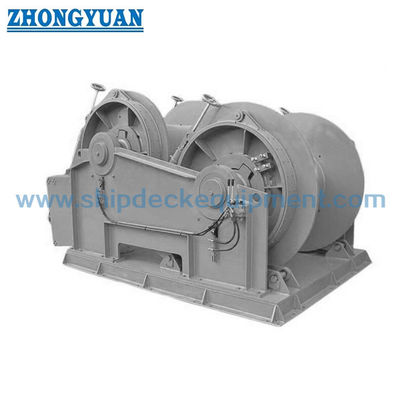

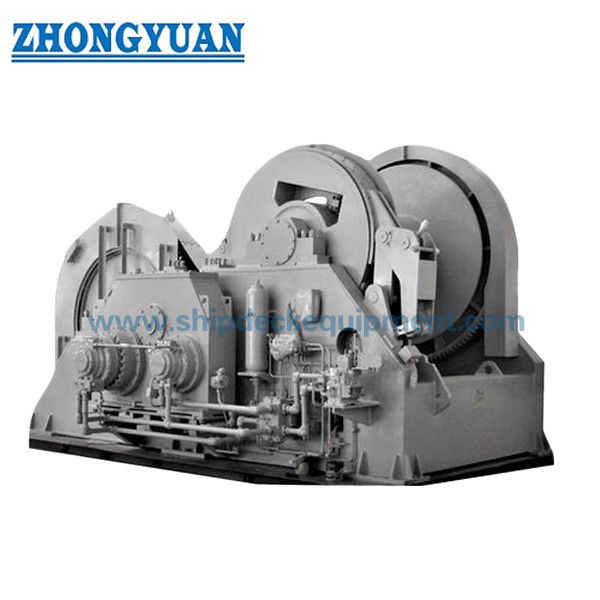

500-2000kN Hydraulic Waterfall Towing Winch System | Marine Towing & Escort Equipment
Product Overview
The hydraulic waterfall towing winch system is designed for heavy-duty towing and escort operations on marine vessels such as tugboats and offshore support ships.
The system integrates towing winch, hydraulic drive, braking system, and control system to ensure safe and continuous towing under high load conditions.
Double drum waterfall configuration allows independent or simultaneous operation for flexible towing operations.
System Composition
Hydraulic towing winch | Hydraulic power unit | Control system | Double drum waterfall | Spooling device | Brake system | Towing wire rope | Monitoring system (optional)
Quick Specifications
• Pulling Capacity: 500-2000 kN
• Holding Capacity: 1000-3200 kN
• Speed: 5-10 m/min
• Drum Capacity: 1000-1600 m
• Wire Rope Diameter: 36-68 mm
• Drum Type: Double drum waterfall
• Drive Type: Hydraulic
• Control: Local and Remote
Main Technical Parameters
| Pulling Force (kN) | Holding Capacity (kN) | Speed (m/min) | Rope Size (mm x m) | Weight (ton) |
| 500 | 1000 | 10 | 36x1000 | 22 |
| 750 | 1450 | 9 | 44x1200 | 26 |
| 1000 | 1800 | 6 | 52x1400 | 32 |
| 1250 | 2200 | 6 | 56x1500 | 35 |
| 1500 | 2650 | 5 | 60x1600 | 40 |
| 1750 | 3000 | 5 | 64x1600 | 46 |
| 2000 | 3200 | 5 | 68x1600 | 52 |
Selection Guide
Step 1 - Pulling Capacity: 500-2000 kN | Step 2 - Holding Capacity: 1000-3200 kN | Step 3 - Rope Diameter: 36-68 mm | Step 4 - Speed: 5-10 m/min | Step 5 - Drive: Hydraulic | Step 6 - Control: Local/Remote
Structure & Components
Hydraulic motor | Gearbox | Double drum waterfall | Wire rope system | Brake system | Spooling device | Control panel | Base frame
Custom Configuration & Inquiry Guide
Pulling Capacity | Holding Capacity | Rope Diameter | Rope Length | Drum Type | Control System | Installation Requirement
How It Works
Hydraulic motor drives drums via gearbox to wind or release rope. Waterfall structure ensures proper spooling and stable towing performance.
Applications
Tug boats | Offshore towing vessels | Anchor handling vessels | Escort towing operations | Marine engineering vessels
Certifications & Advantages
Certifications: CCS | NK | BV | ABS | DNV | LR | KR | RINA | IRS | RS
Advantages: High pulling capacity | Stable hydraulic drive | Double drum flexibility | Automatic spooling | Heavy-duty performance
Drawing & Photos
• General arrangement drawing
• System layout drawing
• Hydraulic diagram
• Product photos
Ordering Information
• MOQ: 1 Unit
• Delivery Time: Based on project
• Payment: T/T, L/C
FAQ
Q1: Is this winch suitable for mooring operations?
A: No, it is specifically designed for towing and escort operations with high pulling capacity.
Q2: Can both drums operate independently?
A: Yes, double drum configuration allows independent or simultaneous operation.
Q3: Can monitoring systems be added?
A: Yes, load monitoring, rope length, and speed measurement systems are optional.
