12.5–30mm Space Saving Hydraulic Anchor Windlass | Compact Marine Anchor Handling Equipment
Product Overview
The space-saving hydraulic anchor windlass is specifically designed for anchor chain handling on vessels with limited deck space.
The system adopts a compact integrated gearbox and hydraulic motor design, minimizing installation footprint while maintaining reliable anchor handling performance.
It is suitable for small vessels, workboats, and boats with narrow foredeck layouts.
This windlass is primarily designed for anchor chain handling, with optional auxiliary rope handling via warping end.
Quick Specifications
• Anchor Chain Size: 12.5–30 mm
• Anchor Chain Pull: 5.9–38.3 kN
• Brake Holding Load: 30–231 kN
• Chain Speed: 9–15 m/min
• Warping Head Pull: 5–30 kN
• Chain Length Capacity: up to 82.5 m
• Motor Power: 4–15 kW
• Drive Type: Hydraulic (Electric HPU)
• Configuration: Single / Double gypsy + warping end
• Control: Local joystick control
• Chain Grade: U2 / U3
Main Technical Parameters
| Chain (mm) | Chain Pull (kN) | Brake Load (kN) | Speed (m/min) | Warping Pull (kN) | Motor Power (kW) |
| 12.5 | 5.9 | 30 | ≥9 | 5 | 4 |
| 14/16/17.5 | 8.3/10.9/13 | 51/67/80 | ≥9 | 8 | 5.5 |
| 19/20.5/22 | 15.3/17.9/20.6 | 95/110/126 | ≥9 | 10 | 7.5 |
| 24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | 11 |
| 28/30 | 33.3/38.3 | 202/231 | ≥9 | 30 | 15 |
| 32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 30 | 22 |
Selection Guide
Step 1 – Select Chain Size (12.5–30 mm) | Step 2 – Match Anchor Chain Pull (5.9–38.3 kN) | Step 3 – Confirm Brake Holding Load (30–231 kN) | Step 4 – Select Chain Speed (9–15 m/min) | Step 5 – Confirm Hydraulic Drive | Step 6 – Select Configuration | Step 7 – Installation Layout
Structure & Components
Structure & Components: Hydraulic motor (integrated) | Compact gearbox | Gypsy wheel (chain handling) | Warping head | Brake system | Clutch system | Hydraulic power unit | Control valve | Base frame
Custom Attributes
Chain Size | Chain Pull | Brake Load | Warping Pull | Drive Type | Configuration | Control Type
Custom Configuration & Inquiry Guide
Chain Size | Chain Grade | Pull Requirement | Brake Load | Installation Space | Control System | Vessel Type
How It Works
The hydraulic motor drives the gearbox to rotate the gypsy wheel for anchor chain handling.
The anchor is raised or lowered through the gypsy, while the brake and clutch system ensure safe load control.
The compact integrated design ensures efficient operation in limited installation space.
Applications
Applications: Small vessels | Workboats | Fishing boats | Patrol boats | Narrow deck ships | Anchor handling operations
Certifications & Advantages
Certifications: CCS | NK | BV | ABS | DNV | LR | KR | RINA | IRS | RS
Advantages: Space-saving compact design | Integrated hydraulic motor and gearbox | Easy installation | Low maintenance | Reliable anchor chain handling | Ideal for limited deck space
Drawing & Photos

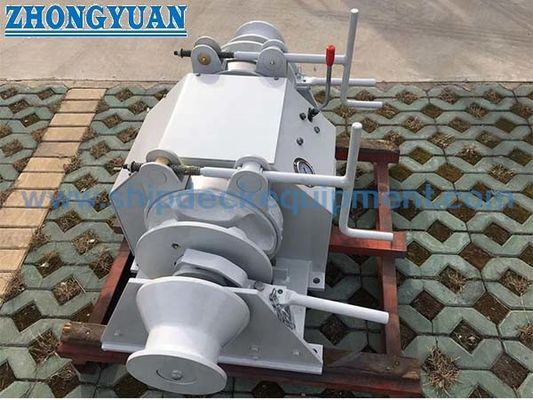

• General arrangement drawing
• Compact structure drawing
• Installation layout

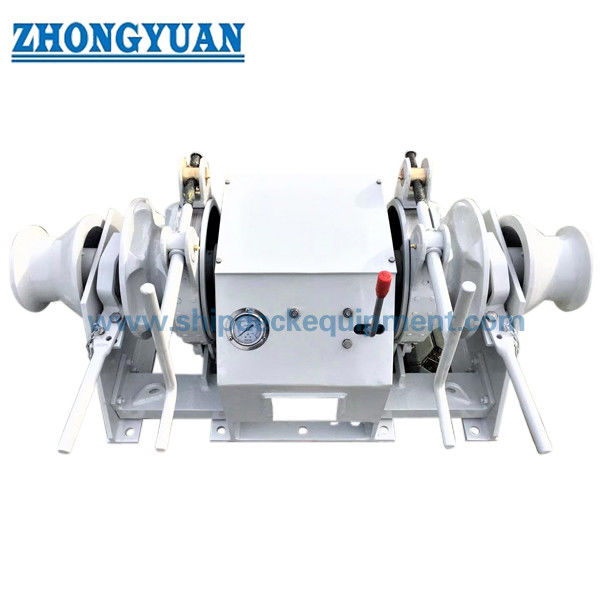

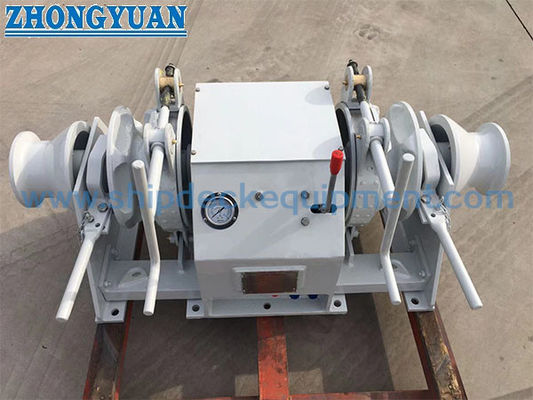

• Product photos
Ordering Information
• MOQ: 1 Unit
• Delivery Time: Based on project
• Payment: T/T, L/C
• Customization: Available
FAQ
Q1: What makes this windlass different?
A: Compact integrated design for limited deck space.
Q2: Is it suitable for large vessels?
A: It is mainly designed for small to medium vessels.
Q3: Can configuration be customized?
A: Yes, gypsy and warping configurations can be customized.
