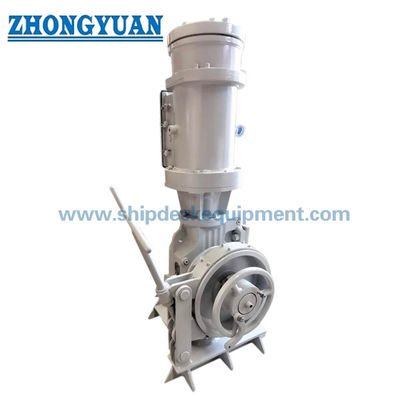

12.5–26mm Vertical Electric Windlass | Single Gypsy for Boat Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Working Load: | 6.6KN | Overload: | 9.9KN |
|---|---|---|---|
| Support Load: | 41KN | Type: | Vertical Motor |
| Speed(m/min): | ≥12m/Min | Anchor Chain: | Dia. 12.5 (mm), U2 |
| Material: | Mild Steel, Casting | Power: | Electric Motor |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc | ||
| Highlight: | 12.5mm vertical electric windlass,6.6KN vertical electric windlass,12.5mm Ship Deck Equipment |
||
Product Description
12.5–26mm Vertical Electric Windlass | Single Gypsy for Boat Deck
Product Overview
This vertical electric windlass is designed for small vessels with limited deck space.
The vertical design minimizes installation footprint and is ideal for compact deck layouts.
Designed for compact deck layout and cost-effective anchoring solutions for small vessels.
Quick Specifications
- Chain Size: 12.5–26 mm (U2) → Defines anchor chain compatibility
- Working Load: 5.9–28.7 kN → Defines anchoring capacity range
- Supporting Load: 30–175 kN → Defines structural holding strength
- Speed: ≥9 m/min → Defines anchoring efficiency
- Motor Power: 3/1.2–8.5/3.5 kW → Defines drive capacity
- Drive Type: Electric → Stable and simple operation
- Configuration: Single Gypsy → Compact anchoring system
- Mounting: Vertical → Saves deck space
Main Technical Parameters
| Chain Dia (mm) | Working Load (kN) | Supporting Load (kN) | Speed (m/min) | Mooring Load (kN) | Motor Power (kW) |
| 12.5 | 5.9 | 30 | ≥9 | 5 | 3/1.2 |
| 14 / 16 / 17.5 | 8.3 / 10.9 / 13.0 | 51 / 67 / 80 | ≥9 | 8 | 4.3/1.7 |
| 19 / 20.5 / 22 | 15.3 / 17.9 / 20.6 | 95 / 110 / 126 | ≥9 | 10 | 8.5/3.5 |
| 24 / 26 | 24.5 / 28.7 | 149 / 175 | ≥9 | 20 | 8.5/3.5 |
Selection Guide
Step 1 – Select Chain Diameter → 12.5–26 mm based on vessel
Step 2 – Confirm Working Load → Defines anchoring capacity
Step 3 – Confirm Supporting Load → Ensures brake holding safety
Step 4 – Confirm Mooring Load → If auxiliary mooring required
Step 5 – Confirm Speed → ≥9 m/min efficiency requirement
Step 6 – Confirm Deck Space → Vertical type for limited space
Structure & Components
Electric motor | Gearbox | Gypsy wheel | Main shaft | Brake | Clutch | Base frame
Custom Attributes
- Chain Size: 12.5–26 mm → Compatibility
- Working Load: 5.9–28.7 kN → Capacity range
- Supporting Load: 30–175 kN → Structural strength
- Speed: ≥9 m/min → Efficiency
- Motor Power: 3/1.2–8.5/3.5 kW → Drive selection
- Installation: Vertical → Space saving
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Inquiry Guide
Provide chain size, vessel type, required load, and deck space.
How It Works
Electric motor drives gearbox and gypsy to handle anchor chain. Brake and clutch ensure safe operation.
Applications
Small boats | Workboats | Inland vessels | Compact deck ships
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; compact vertical design, space-saving, cost-effective, reliable.
Drawing & Photos

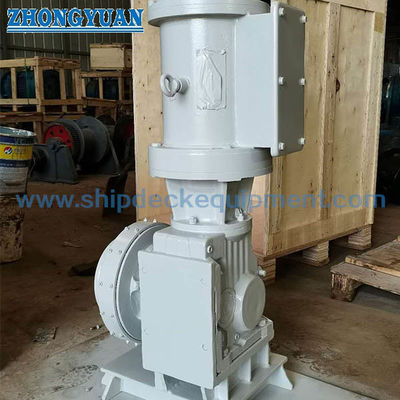

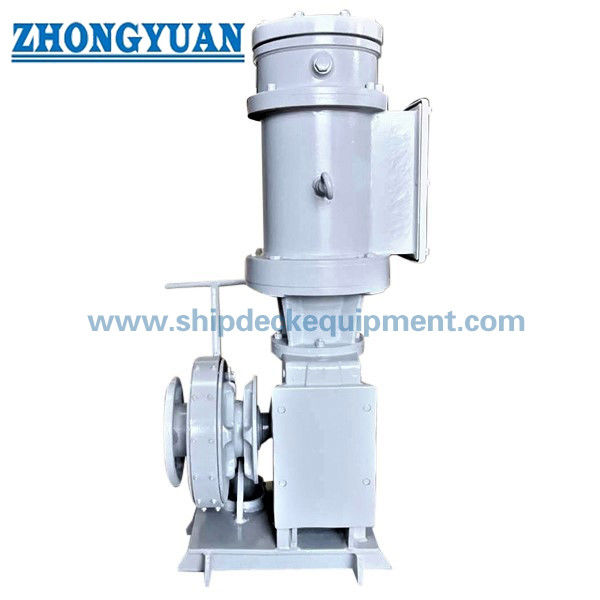

GA drawing | Installation layout | Product photos
Ordering
MOQ:1 | Delivery:60–120 days
FAQ
Q1: Why vertical type? A: Saves deck space.
Q2: Can it be used for mooring? A: Yes, with warping function.
Q3: What chain sizes supported? A: 12.5–30 mm U2 chain.
