13–32mm Marine Steel Wire Rope Reel | JIS Standard Wire Rope Storage for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
| Document: | Marine Rope Reel Manual Dri...92.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Three Type: | Type 35,38,40 | Applicable Steel Wire Diameter: | 13~32mm |
|---|---|---|---|
| Drum Storage Capacity Of Steel Wire Length: | 120~190m | Material: | 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel |
| Certificate: | IACS Classification Certificates, Mill Certificate | ||
| Highlight: | Ship's Wire Reels,Deck Wire Reels,Ship Deck Wire Reels |
||
Product Description
13–32mm Marine Steel Wire Rope Reel | JIS Standard Wire Rope Storage for Ship Deck
Product Overview
Marine steel wire rope reel is designed for safe storage, handling and management of wire ropes on ship decks.
Based on JIS F 3430-1980 standard, this reel is widely used for storing mooring wires, towing wires and auxiliary steel cables.
Compared with drum winches, the reel provides a simple, low-maintenance solution focused on storage rather than load bearing.
Lightweight aluminum alloy versions are available to reduce weight and improve handling efficiency.
Optional locking devices ensure the reel remains stable and secure during transportation and storage.
Quick Specifications
- Applicable Rope Diameter: 13–32 mm → Matches common marine wire ropes
- Drum Capacity: 120–200 m → Storage capability based on rope size
- Structure Type: Free rotating drum → Easy winding and unwinding
- Material Options: Carbon steel / Stainless steel / Aluminum alloy → Weight vs durability selection
- Surface Treatment: Sa2.5 + epoxy / Polished → Corrosion protection
- Locking Device: Available → Prevents rotation during storage
- Customization: Size and capacity can be tailored
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Main Technical Parameters (JIS F 3430-1980)
| Nominal Size | B | D | D1 | d | d1 | L | L1 | Drum Rope Capacity | Weight (kg) |
| 35 | 650 | 350 | 700 | 50 | 40 | 800 | 950 | 25mm × 200m | 190 |
| 38 | 650 | 380 | 780 | 55 | 45 | 850 | 1000 | 28mm × 200m | 215 |
| 40 | 700 | 400 | 850 | 60 | 50 | 900 | 1050 | 31.5mm × 200m | 240 |
Selection Guide
Step 1 – Select rope diameter → 13–32 mm range
Step 2 – Confirm storage length → Match drum capacity
Step 3 – Select material → Steel for durability / Aluminum for lightweight
Step 4 – Confirm locking requirement → Required for transport stability
Step 5 – Confirm coating and certification
Structure
Drum | Shaft | Support frame | Bearing system | Optional locking mechanism
Custom Attributes
- Aluminum alloy option → Lightweight and easy handling
- Locking device → Prevents unwanted rotation
- Smooth drum surface → Protects wire rope
- Custom dimensions → Fit project-specific requirements
Inquiry Guide
Please provide rope diameter, rope length, material preference, installation environment and certification requirements.
How It Works
Wire rope is wound around the drum → drum rotates freely via shaft → rope stored safely → locking device secures drum when not in use.
Applications
Wire rope storage | Deck equipment | Offshore support vessels | Shipyard handling
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Drawing & Photos

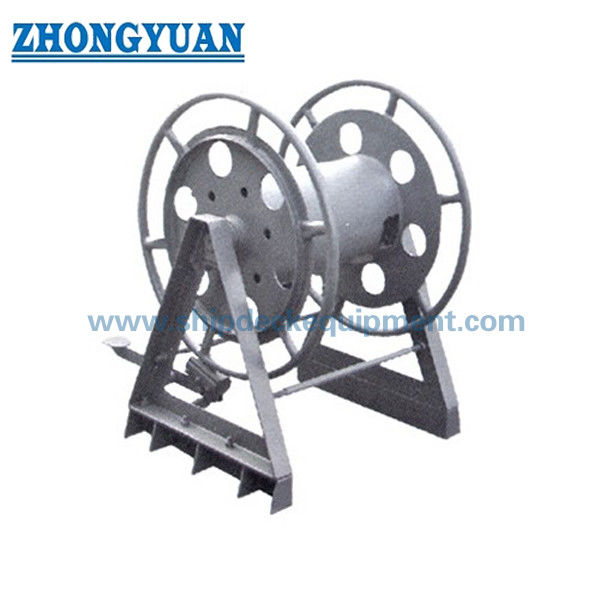

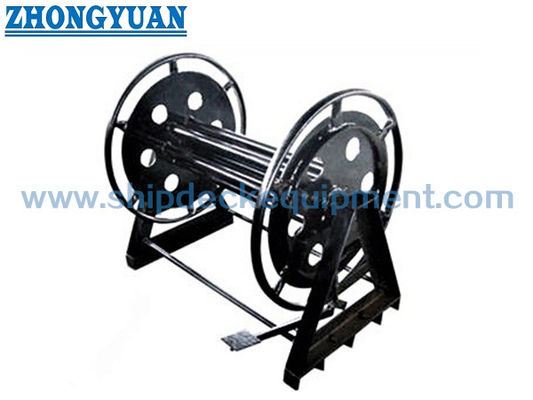

General arrangement drawing and product photos
Ordering
Specify: rope diameter, storage length, material, locking device, coating, certification
FAQ
Q1: Is this reel used for lifting?
A: No, it is designed for storage, not load-bearing operations.
Q2: Can aluminum reels be used offshore?
A: Yes, with proper surface treatment and design.
Q3: Can size be customized?
A: Yes, dimensions and capacity can be tailored.
