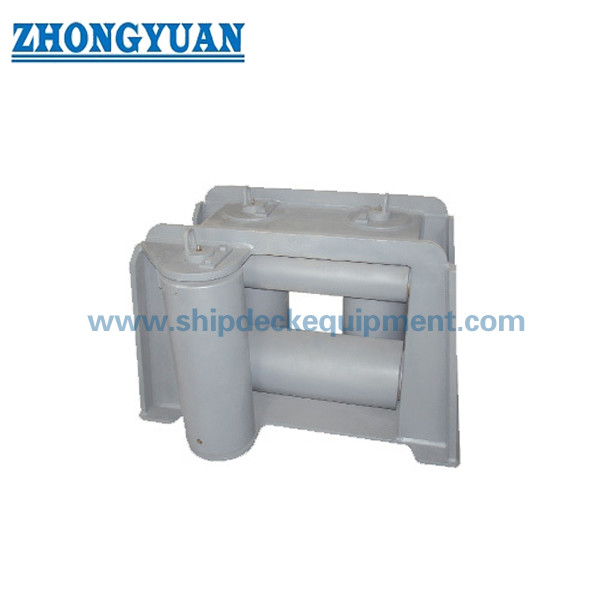

JIS F 2026 Type BR Five Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment
Product Details:
Place of Origin: | China |
Brand Name: | Zhongyuan |
Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number: | Standard and Customized |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | As per quotation |
Packaging Details: | Pallet or Customized |
Delivery Time: | As per offer |
Payment Terms: | TT, L/C, Etc. |
Supply Ability: | Satisfy clients needs |
Detail Information |
|||
Standard: | JIS F 2026-1980 | Type: | Type BR, Type BL |
---|---|---|---|
Roller Diameters: | 140~315mm | Weight: | 235~2050kg |
Material: | C-Mn Steel, Mild Steel, Stainless Steel | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available. |
Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA | ||
Highlight: | Type BR Five Roller Fairleads,Five Roller Fairleads,JIS F 2026-80 Ship Mooring Equipment |
Product Description

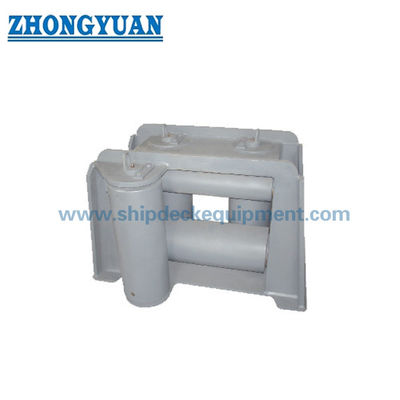

JIS F 2026 Type BR Five Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment
Description
Deck end roller is located on the overboard side deck for ship’s mooring. It is produced according to Japanese standard. It is an important device for ship mooring. It is a universal fairlead which helps to lead the ropes from directions. Smooth surface protects the rope. Widely applicable to dredgers, crane ships, piling boats and other engineering vessels;
Main Technical Specification:
- Standard: JIS F 2026-1980
- Type: Type BR, Type BL;
- Roller diameters: 140~315mm;
- Weight: 235~2050kg
- Materials: C-Mn Steel, Mild Steel, Stainless Steel
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
Nominal Dia. |
Frame | |||||||||||||||||
B | B1 | b | b1 | b2 | b3 | b4 | D | D1 | D2 | D3 | H | h | hl | h2 | h3 | L | Ll | |
140 | 310 | 390 | 150 | 69 | 20 | 45 | 25 | 90 | 140 | 120 | 80 | 480 | 275 | 130 | 40 | 50 | 515 | 805 |
160 | 360 | 460 | 175 | 82 | 22 | 65 | 35 | 110 | 160 | 140 | 90 | 515 | 290 | 145 | 45 | 60 | 570 | 890 |
180 | 410 | 525 | 200 | 95 | 24 | 80 | 40 | 135 | 180 | 150 | 100 | 560 | 315 | 155 | 50 | 70 | 620 | 960 |
200 | 460 | 583 | 225 | 108 | 26 | 90 | 45 | 160 | 200 | 160 | 110 | 590 | 330 | 170 | 60 | 80 | 675 | 1049 |
250 | 565 | 701 | 280 | 133 | 30 | 105 | 55 | 200 | 250 | 200 | 130 | 715 | 415 | 195 | 75 | 90 | 825 | 1303 |
315 | 670 | 824 | 330 | 159 | 34 | 125 | 65 | 240 | 300 | 240 | 160 | 870 | 520 | 220 | 90 | 100 | 980 | 1562 |
Nominal Dia. |
Frame | Leg of weld | Weight (kg) |
|||||||||||||||
I | l1 | l2 | l3 | l4 | R | R1 | t | t1 | t2 | t3 | t4 | f | f1 | f2 | f3 | |||
140 | 335 | 120 | 60 | 50 | 20 | 40 | 70 | 12 | 10 | 16 | 6 | 20 | 9 | 6 | 12 | 4 | 235 | |
160 | 365 | 135 | 65 | 50 | 20 | 45 | 85 | 14 | 10 | 18 | 8 | 22 | 9 | 7 | 12 | 6 | 353 | |
180 | 390 | 145 | 70 | 50 | 20 | 50 | 95 | 16 | 10 | 20 | 10 | 24 | 9 | 9 | 12 | 8 | 496 | |
200 | 420 | 160 | 80 | 50 | 20 | 60 | 110 | 18 | 12 | 22 | 10 | 26 | 10 | 10 | 14 | 8 | 648 | |
250 | 520 | 210 | 105 | 60 | 25 | 75 | 135 | 20 | 14 | 26 | 12 | 30 | 10 | 12 | 14 | 10 | 1176 | |
315 | 620 | 260 | 130 | 60 | 25 | 90 | 160 | 22 | 16 | 30 | 14 | 34 | 12 | 14 | 16 | 10 | 2050 |
Drawing of JIS F 2026 Type BR Five Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment
