50–100mm Inclined Double Bitt Bollard | CB/T 169-2011 Type A Welded Mooring Bollard for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Technical Standard: | CB/T 169-2011 | Nominal Diameters: | 80 To 100mm |
|---|---|---|---|
| Material: | Mild Steel; Stainless Steel Available | Weight: | 6.4 To 23.4 Kg |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available. | Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, RINA, IRS, RS, Etc. |
| Highlight: | Plate Base Bollard,GB 556 Bollard,Plate Base Ship Mooring Equipment |
||
Product Description
50–100mm Inclined Double Bitt Bollard | CB/T 169-2011 Type A Welded Mooring Bollard for Ship Deck
Product Overview
CB/T 169-2011 Type A welded incline type bollard is designed for light-duty ship mooring applications.
The inclined double-post structure improves rope holding performance and prevents rope slipping during vessel movement.
It is suitable for workboats, barges and small vessels where compact and reliable mooring is required.
Quick Specifications
Standard: CB/T 169-2011 → Replaces GB556
Application: Inland and small vessel mooring → Compact and efficient solution
Type: Type A (single base plate) → Compact structure
Nominal Diameter: 50–100 mm → Rope compatibility
SWL: 8.5–14.5 kN → Light-duty load range
Material: Carbon structural steel / stainless steel → Strength & corrosion resistance
Structure: Inclined double bitt → Anti-slip rope holding
Surface: Sa2.5 + epoxy coating → Marine protection
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Main Technical Parameters (CB/T 169-2011 Type A)
| Nominal Dia | SWL kN | 6x24 | 6x37 | Natual Rope Circ | Synthetic Dia | D | D1 | H | L1 | L2 | t | Base L | B | h | t1 | k |
Weight kg |
| 50 | 8.5 | - | 6 | 45 | 10 | 60 | 75 | 170 | 230 | 180 | 6 | 310 | 130 | 26 | 10 | 6 | 6.4 |
| 75 | 11.5 | - | 7 | 54 | 12 | 76 | 90 | 210 | 300 | 240 | 8 | 400 | 160 | 43 | 12 | 6 | 15.2 |
| 100 | 14.5 | 8 | 8 | 63 | 14 | 114 | 130 | 240 | 360 | 290 | 10 | 470 | 180 | 51 | 16 | 8 | 23.4 |
Engineering Design Logic
Load transfer path: Rope → Bollard Post → Base Plate → Deck.
Inclined posts increase friction and reduce rope slip.
Structure is optimized for light-duty mooring points.
Why Inclined Bollard Design?
Prevents rope slipping → Safer mooring
Improves holding → Stable rope control
Reduces accidental release → Reliable operation
Structure
Inclined posts | Top plate | Base plate | Rib plates | Welded structure
Custom Attributes
Inclined posts → Anti-slip performance
Compact base → Space saving
Smooth finish → Protects rope
Welded fabrication → Reliable strength
Selection Guide
Step 1 – Select A50 / A75 / A100 → Based on SWL
Step 2 – Confirm rope size → From table
Step 3 – Confirm installation → Deck welding
Step 4 – Confirm coating & certification
Not sure about selection? Contact us.
Inquiry Guide
Provide rope size, SWL, vessel type, quantity and certification.
How It Works
Rope wraps around inclined posts → friction increases → load transfers to deck → stable mooring.
Applications
Workboats | Small vessels | Barges | Harbor service ships
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

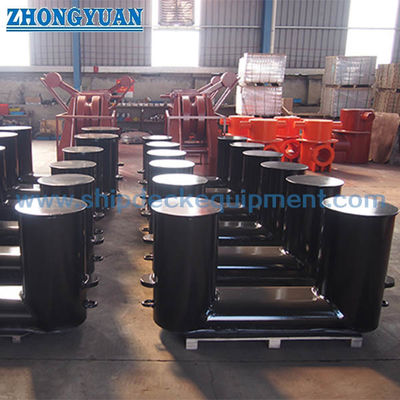

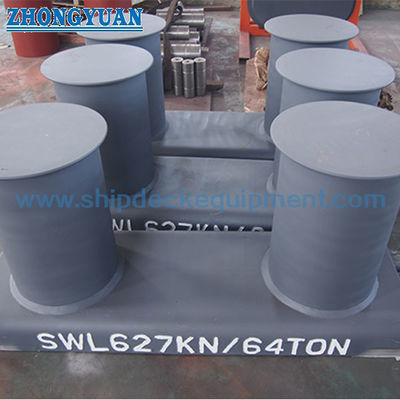

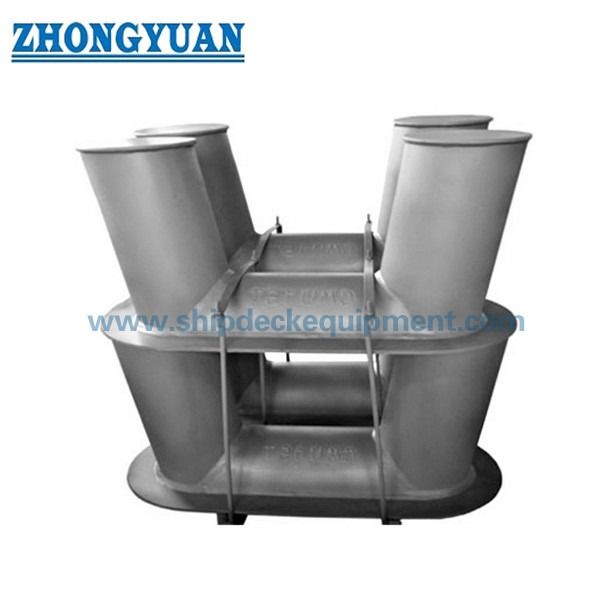

Drawing & Photos
General arrangement drawing and product photos
Ordering
Specify: Type A | Size | Material | Coating | Certification
FAQ
Q1: What is Type A bollard?
A: Light-duty version within CB/T 169 with compact structure.
Q2: Why inclined?
A: Prevents rope slipping.
Q3: How to select?
A: Based on rope size and SWL.
