Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting

Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting

Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information

Standard: GB/T 3477 Material: Mild Steel, Stainless Steel, Aluminium
Test: Hose Test, Air Test, Chalk Test, As Applicable Dimension: Customized, As Client’s Drawing, As Standard
Application Type: Weathertight Leaf Type: Single Leaf, Double Leaf, Single Skin
Application Location: Accommodation, Deck House, Forecastle, Bulkhead, Boundary Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, Etc.
Power Resource: Pneumatic, Electric, Hydraulic, Manual Closing Device: Anti-Piracy
Classification Certificates: Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc
Highlight:

hinged watertight door

,

Steel hinged watertight door

,

CCS watertight steel door

Product Description

Single Lever Quick Action Hinged Steel Weathertight Door



Description:

Single lever quick action hinged steel weathertight door is Used for the doorway of superstructure above freeboard deck or deck house. It can be installed on the postion 1 and 2 according to loadline requirement.Hose test is to be carried our before delviery from the factory. IACS class certificates are available.



Main technical Specification:

  1. Standard: GB/T 3477
  2. Material: Mild Steel, Stainless Steel, Aluminium,
  3. Test: Hose Test, Air Test, Chalk Test, as applicable
  4. Dimension: Customized, As client’s drawing, As Standard
  5. Application Type: Weathertight,
  6. Leaf Type: Single Leaf, Double Leaf, Single Skin,
  7. Application Location: Accommodation, Deck House, Forecastle, Bulkhead, Boundary
  8. Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.
  9. Power resource: Pneumatic, Electric, Hydraulic, Manual,
  10. Closing Device: Anti-Piracy
  11. Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.



Main Technical Parameters:

No. Nominal size
LxBxR100
Cutout
L1 x B1 x R150
Outline size
L2 x B2 x R200
Leaf plate thickness
mm
1 1000x600 1100x700 1200x800 8
2 1200x600 1300x700 1400x800
3 1400x600 1500x 700 1600x800
4 1400x700 1500x800 1600x900
5 1500x600 1600x700 1700x800
6 1500x700 1600x800 1700x900
7 1600x600 1700x 700 1800x800
8 1600x700 1700x800 1800x900

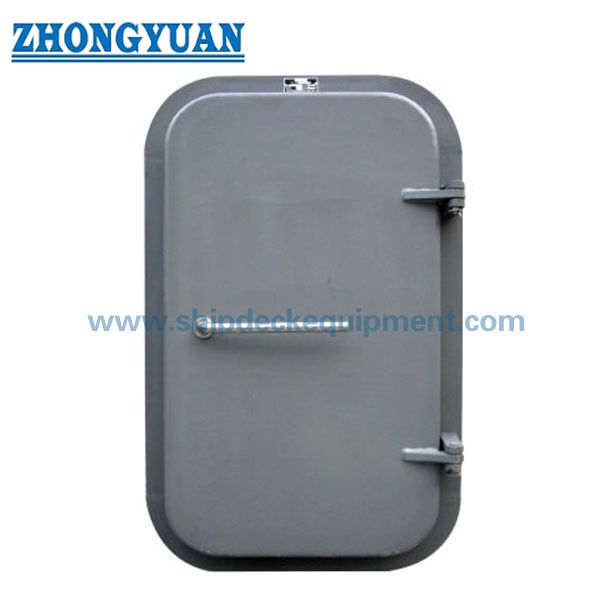

Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting 0

Drawing of Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting

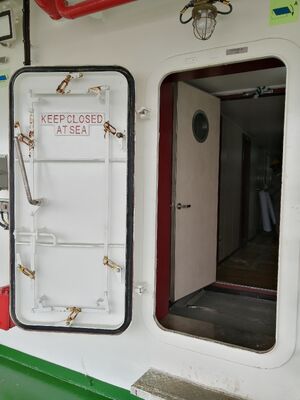

Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting 1

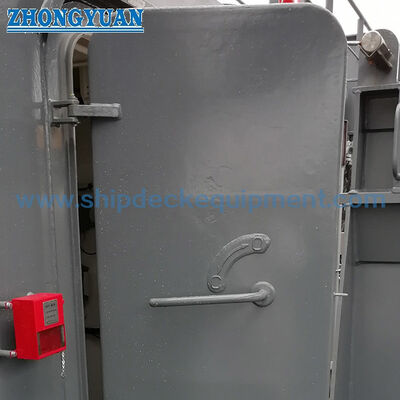

Single Lever Quick Action Hinged Steel Weathertight Door Marine Outfitting 2
