Steel Weathertight Single Leaf Doors with Dogs Both Side Opening Marine Outfitting
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard: | GB/T 3477-2008 | Material: | Mild Steel, Stainless Steel |
|---|---|---|---|
| Test: | Hose Test, Chalk Test | Dimension: | Customized, As Client’s Drawing, As Standard |
| Application Type: | Weathertight | Leaf Type: | Single Leaf |
| Application Location: | Accommodation, Deck House, Forecastle, Bulkhead, Boundary | Open Type: | Hinged, Dogs |
| Closing Device: | Anti-Piracy | Classification Certificates: | CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc |
| High Light: | Quick Action Steel Weathertight Door,ISO weathertight doors on ships,Steel weathertight doors on ships |
||
Product Description

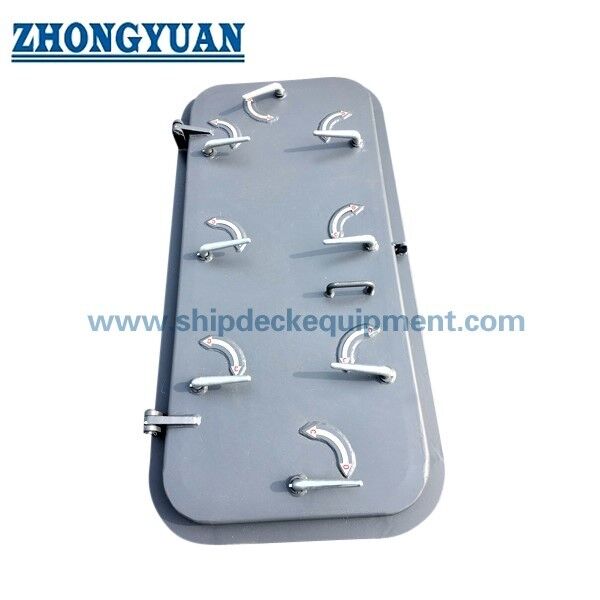

Steel Weathertight Single Leaf Doors with Dogs Both Side Opening
Description:
GB/T 3477 Type A steel weathertight single leaf doors with dogs both side opening is used for the doorway of level 1 superstructure above freeboard deck or deck house. It is applicable in the range of 0.1-0.7 length of ship deck house and superstructures. It can be opened from both sides. The material can be mild steel or stainless steel. Hose test 0.2Bar at 1.5m distance with 12mm nozzle.
Main Technical Specifications:
1. Standard: GB/T 3477-2008
2. Material: Mild Steel, Stainless Steel;
3. Test: Hose Test, Chalk Test,
4. Dimension: Customized, As client’s drawing, As Standard
5. Application Type: Weathertight,
6. Leaf Type: Single Leaf,
7. Application Location: Accommodation, Deck House, Forecastle, Bulkhead, Boundary
8. Open Type: Hinged, Dogs,
10. Closing Device: Anti-Piracy
11. Classification Certificates: CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.
Main Technical Parameters:
| Door Frame Opening H X W |
Door Leaf H1XW1 |
Wall Opening H2 x W2 Type AF Radius 80 |
Wall Opening H2 x W2 Type AY Radius 80 |
Door Leaf Plate Thickness Length of Ship L≤80m |
Door Leaf Plate Thickness Length of Ship L>BO |
Door Leaf Stiffener Size B x T Length of Ship L≤80m |
Door Leaf Stiffener Size B x T Length of Ship L 80-120m |
Door Leaf Stiffener Size B x T Length of Ship L 120-150m |
Door Leaf Stiffener Size B x T Length of Ship L 150-210m |
Door Leaf Stiffener Size B x T Length of Ship L 210-300m |
Dog Number Position H3 |
Door Leaf Weight (6mm) kg |
Door Leaf Weight (8mm) kg |
|
| 1200X600 |
(H+55) X (W+55) |
(H+100)X(W+100) | 6 | - | 75X6 | - | - | 6 | 350 | 123.8 | - | |||
| 1400X600 | 8 | - | 65X9 | 65X9 | 75X9 | ## | 152. 33 | 176.56 | ||||||
| 1400X700 | 75X9 | 75X12 | 75X 12 | 90X12 | 158. 26 | 180. 00 | ||||||||
| 1400X750 | 90X9 | 162. 24 | 192. 33 | |||||||||||
| 1400X800 | - | 90 X 12 | 90X 12 | 90X 12 | 8 | - | 204.66 | |||||||
| 1400X900 | 90X9 | 100X 12 | 222.47 | |||||||||||
| 1500X600 | 75X6 | 75X 12 | 90X12 | 6 | 41 0 | 164. 43 | ||||||||
| 1500X700 | 75X12 | 75X9 | 188. 62 | |||||||||||
| 1600X800 | 90X12 | 90X 12 | 90X 12 | 8 | 217.8 | |||||||||
| 1600X600 | 65X9 | 75X9 | 75 X 12 | 6 | ## | 188. 14 | ||||||||
| 1600X700 | 75X12 | 90X12 | 90X12 | 90X 12 | 217. 14 | |||||||||
| 1600X750 | 90X9 | 216.48 | ||||||||||||
| 1600X800 | 90X12 | 100X 12 | 100X 12 | 8 | 219. 25 | |||||||||
| 1600X900 | 125X9 | 242.57 | ||||||||||||
| 1650X650 | 75X6 | 90X9 | 90 X 12 | 90 X 12 | 6 | 186. 59 | ||||||||
| 1650X700 | 75X 12 | 90X12 | 200.59 | |||||||||||
| 1700X600 | 75X6 | 90X9 | 90X9 | 179.59 | ||||||||||
| 1700X700 | 75X12 | 90X 12 | 125X9 | 205. 25 | ||||||||||
| 1700X800 | 90X12 | 100X12 | 8 | 230.9 | ||||||||||
Drawing of Steel Weathertight Single Leaf Doors with Dogs Both Side Opening Marine Outfitting
