Bolted Side Scuttle With Storm Cover Marine Outfitting
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Standard: | ISO 1751:2012, GB/T 14413-2008 | Series: | Regular Series (N) None Fire Proof |
|---|---|---|---|
| Type B: | Medium-type | Models: | Opening Model; With Storm Cover Or Deadlight; Opening Direction Of Glass Holder |
| Type Of Fastening: | Swing Bolt & Nut | Material: | Mild Steel, Stainless Steel, Casting Steel, Aluminium, Copper, Bronze |
| Test: | Hydraulic Pressure Test | Nominal Sizes: | 200, 250, 300, 350, 400, 450mm |
| Delivered Condition: | Painted, Polished, Galvanized. | Certificate: | Classification ABS, DNV, KR, NK, LR, RINA, BV, CCS, IRS, Mill Certificate |
| Highlight: | Bolted Opening Side Scuttle,Side Scuttle for Ships,ABS Marine Outfitting |
||
Product Description

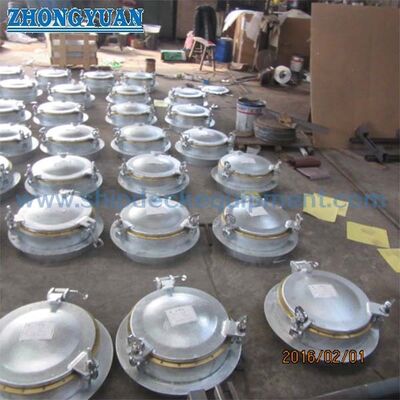

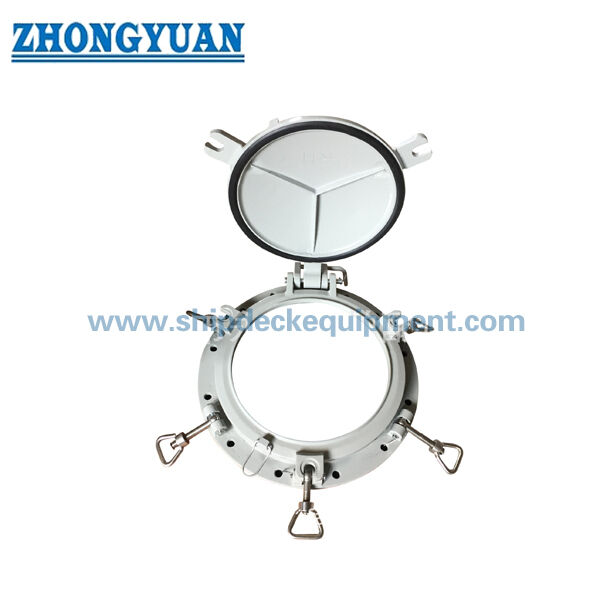

Bolted Side Scuttle With Storm Cover
Description:
Bolted side scuttle with storm cover for ships is usually used on ocean-going ships, inland water way vessels, warships. It is fitted with bolts on the wall or shell plate of ship. The storm cove or the deadlight and glass holder or frame share common hinges. The glass holder and storm cover or deadlight are fastened by the swing bolt and nut. This is regular series(N) scuttle without fire resistance grade. We can produce class A and B fire proof scuttles.
Main Technical Specification:
- Standard: ISO 1751:2012, GB/T 14413-2008；
- Series: Regular series (N) None Fire Proof；
- Type B: Medium-type;
- Models: opening model; with storm cover or deadlight; opening direction of glass holder;
- Type of Fastening: Swing Bolt & Nut
- Material: Mild Steel, Stainless Steel, Casting Steel, Aluminium, Copper, Bronze;
- Test: Hydraulic Pressure Test;
- Nominal sizes 200, 250, 300, 350, 400, 450mm;
- Delivered Condition: Painted, Polished, Galvanized.
- Certificate: Classification ABS, DNV, KR, NK, LR, RINA, BV, CCS, IRS, Mill Certificate；
Main Technical Parameters:
| Nominal Diameter D |
D1 | D2 | D3 | D4 | D5 | h | t | a | Fasteners Number for Glass Holder |
Fasteners Number for Storm Cover |
Mounting Bolts Size |
Mounting Bolts Number |
Wall Opening Size |
Weight kg |
| 200 | 245 | 204 | 250 | 350 | 310 | 155 | 8 | 45° | 3 | 2 | M12 | 8 | 253 | 14.23 |
| 250 | 295 | 254 | 305 | 400 | 364 | 182 | 42° | M16 | 308 | 17.16 | ||||
| 300 | 350 | 304 | 360 | 450 | 414 | 207 | 10 | 31° | 3 | 12 | 363 | 22.74 | ||
| 350 | 400 | 354 | 410 | 500 | 464 | 232 | 12 | 32° | 413 | 26.93 | ||||
| 400 | 450 | 404 | 460 | 550 | 514 | 257 | 31° | M18 | 463 | 31.07 | ||||
| 450 | 500 | 454 | 510 | 600 | 564 | 282 | 15 | 4 | M20 | 513 | 36.83 |
Drawing of Bolted Side Scuttle With Storm Cover Marine Outfitting
