Product Overview

This HMPE / UHMWPE marine towing rope is supplied for tug assistance, harbor towing, shipyard movements, ocean towage, and other marine operations where a lightweight, high-strength towline with low extension is required. The rope can be supplied with an eye splice at one or both ends, with the eye dimensions, protective sleeve, thimble, and connection arrangement confirmed against the towing winch, tow hook, bollard, shackle, or towing bracket.

The product is supplied through long-term qualified manufacturing partners rather than represented as an in-house manufactured rope. Rope construction, fiber grade, diameter, length, minimum breaking load (MBL), elongation, splice efficiency, chafe protection, and inspection documents must be confirmed for each order. The product is described and supplied as HMPE / UHMWPE rope, with the actual fiber grade and supply source confirmed for each order.

Quick Specifications

• Product type: HMPE / UHMWPE marine towing rope → tensile towline for tug, harbor, shipyard, and ocean towing arrangements; not a lifting sling.
• Material basis: high-modulus polyethylene fiber → selected for high strength-to-weight ratio, low extension, and easier handling than comparable heavy wire-based lines.
• Fiber grade: HMPE / UHMWPE fiber according to the supplying factory's technical documentation.
• Construction options: 8-strand, 12-strand, or covered rope construction → final construction is selected according to winch, handling, abrasion, and inspection requirements.
• End termination: eye splice at one or both ends → soft eye, thimble, eye length, protective sleeve, and connection hardware interface are confirmed before production.
• Abrasion management: coated rope and optional chafe sleeve → service life depends on rope construction, fairlead condition, bend radius, contact pressure, and operating practice.
• Load data: MBL and elongation by diameter and construction → values must come from the approved maker data sheet or test certificate, not from the non-HMPE reference table supplied.
• Supply and testing: partner-factory production with pre-shipment inspection → test scope, traceability, packing, and third-party or class witnessing are arranged according to order requirements.

Main Technical Parameters

Selection & Inquiry Guide

Step 1: Confirm the towing application: harbor tug assistance, shipyard movement, ocean towage, emergency towing component, workboat service, or another defined operation.

Step 2: Provide required MBL, nominal diameter or size limitation, finished length, towing vessel bollard pull, expected dynamic loading, and the applicable project or owner specification.

Step 3: Confirm rope construction and material: HMPE / UHMWPE, required fiber producer or grade, 8-strand / 12-strand / covered construction, and whether a more elastic tail or stretcher is part of the towing system.

Step 4: Confirm termination details: one or two eye splices, eye length, soft eye or thimble, protective sleeve, shackle or tow-hook interface, and any messenger-line arrangement.

Step 5: Confirm operating interfaces: towing winch drum, capstan, fairlead, roller, bollard, bend radius, storage condition, and areas requiring additional chafe protection.

Step 6: Provide quantity, color or identification requirement, certificate and test scope, packing method, delivery destination, required delivery time, and drawing or photos if available.

Structure

HMPE / UHMWPE load-bearing rope body | 8-strand / 12-strand / covered construction | Factory-made eye splice | Optional thimble | Protective sleeve / chafe guard | Rope coating | Identification marking | Packed coil or reel according to order

Towing, Splicing & Supply Advantages

• High strength-to-weight performance reduces manual handling burden and deck handling weight, while the final diameter and MBL remain project-specific.
• Low extension provides direct towing response and controlled line length, but the towing system must account for shock loading and energy absorption rather than treating HMPE as a direct substitute for nylon.
• A floating HMPE construction can simplify retrieval and surface handling; buoyancy must be confirmed for the finished rope, including covers, thimbles, and protective components.
• Abrasion resistance can be improved through rope construction, fiber coating, and replaceable chafe protection, but sharp edges, rough fairleads, small bend radii, and heat-generating slip can still damage the line.
• Eye splices are produced and inspected as part of the rope assembly because splice geometry, bury length, taper, and protection directly affect termination performance.
• Rope diameter, winch drum condition, fleet angle, fairlead geometry, and connection hardware should be reviewed together to avoid local crushing, excessive bending, or incompatible contact surfaces.
• Long-term partner-factory sourcing supports repeat supply, competitive pricing, and specification matching without implying that all rope types are manufactured in-house.
• Inspection and test documents can be arranged according to the order, with class or third-party involvement confirmed before quotation.

Custom Attributes

• Material: HMPE / UHMWPE → exact fiber producer, grade, and yarn specification are to be confirmed.
• Fiber Grade: HMPE / UHMWPE fiber according to the supplying factory documentation → exact grade and performance data must be confirmed for each order.
• Construction: 8-strand / 12-strand / covered rope → select according to strength, handling, abrasion exposure, winch compatibility, and inspection method.
• Diameter and MBL: Project-specific → do not infer HMPE MBL from nylon, polypropylene, or polyester/nylon tables.
• Elongation: Low-extension rope system → actual elongation curve and working-load behavior should be requested when dynamic response is critical.
• Termination: Eye splice → number of eyes, eye length, thimble, sleeve, and hardware interface must be stated in the purchase specification.
• Chafe Protection: Optional protective sleeve → position and length should match fairlead, bollard, tow hook, or deck-contact zones.
• Color and Marking: To be confirmed → identification stripe, tag, serial number, and length marking can follow project requirement.
• Inspection Documents: According to order scope → maker test certificate, third-party witnessing, or class documentation is not assumed by default.
• Supply Status: Sourced product → supplied through qualified long-term rope manufacturing partners with specification and pre-shipment checks.

How It Works

Towing load is applied through the tow hook, winch, bitt, or towing bracket → Eye splice transfers the load into the rope body → HMPE strands share the tensile load with low extension → Fairleads and chafe protection control the rope path and contact → Rope condition is inspected after operation and before reuse

Applications

Harbor tug assistance | Shipyard and dry-dock vessel movement | Ocean towage | Barge towing | Workboat towing | Escort tug operations | Emergency towing component supply | Replacement towline projects

Certifications & Advantages

Inspection and certification documents can be arranged according to the selected rope construction, test scope, material traceability, and project requirement. Class involvement is available upon request and remains subject to the supplying factory capability and the relevant class approval procedure.

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate — available upon request and subject to project confirmation.

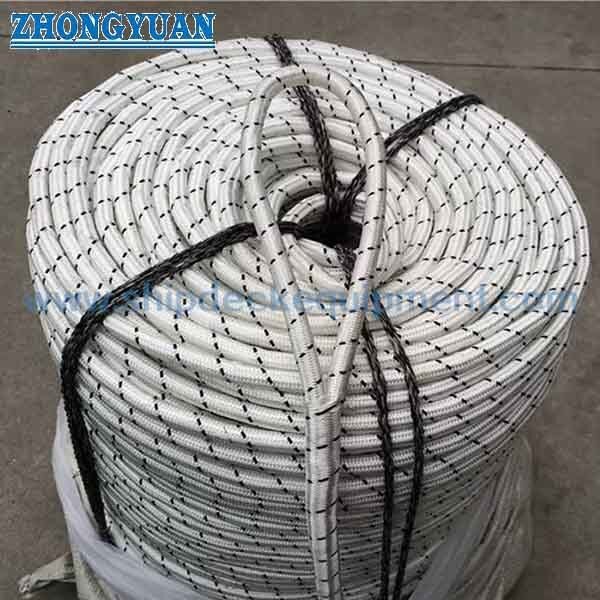

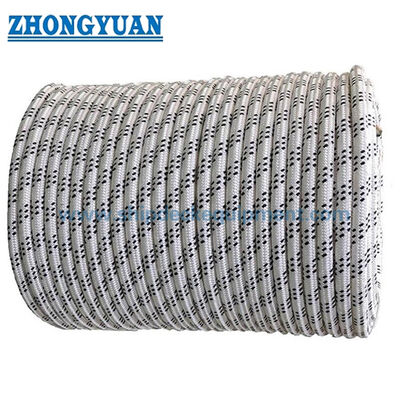

Drawing & Photos

FAQ

Q1: How does an HMPE towing rope differ from nylon or polyester towing rope?

A1: HMPE is selected for high strength-to-weight performance and low extension. Nylon provides more elastic energy absorption, while polyester generally offers more moderate extension and stable handling. The correct rope depends on towing dynamics, winch arrangement, chafe exposure, hardware, and the required MBL; material names should not be treated as interchangeable.

Q2: How should the required MBL be specified?

A2: MBL should be established from the towing operation, vessel bollard pull, dynamic loading, towline arrangement, connected fitting capacity, design factors, and the applicable owner, class, or project rules. MBL is a breaking-strength value and should not be relabeled as SWL or safe towing load.

Q3: Is every supplied rope delivered with class certification?

A3: No. Maker test reports, third-party inspection, and class certificates are arranged only when included in the agreed order scope.
