Product Overview

Flash butt welded offshore mooring chain is supplied for permanent or temporary position-mooring systems used by floating offshore units and offshore loading facilities. Typical project applications include FPSO and FSO mooring systems, floating production units, mobile offshore drilling units, single-point moorings, offshore buoys, and other floating offshore structures. Each chain order must be defined by nominal diameter, link configuration, grade, continuous length, end connection arrangement, specified test loads, design service, and classification requirement.

We supply the chain through qualified chain manufacturers and coordinate the technical and documentation scope; the page does not present the chain as in-house manufacture. The approved production route normally uses rolled alloy-steel bar, hot link forming, flash butt welding, and controlled heat treatment, followed by dimensional inspection, proof loading, sample break testing, mechanical testing, and nondestructive examination according to the selected class rule and approved manufacturing procedure. Long-term seawater service also requires project-specific review of corrosion allowance, fatigue, wear, out-of-plane bending, seabed interaction, cathodic protection, and inspection strategy.

Quick Specifications

• Product category: Offshore position-mooring chain supply → intended for chain segments within engineered offshore mooring systems, not for general cargo lifting.
• Nominal chain diameter: 34–200 mm → final available diameter depends on grade, link type, approved factory range, test-machine capacity, and project class requirement.
• Link configuration: Stud link or studless common link → end links, enlarged end links, connecting links, shackles, and special interfaces are supplied to approved drawings when included.
• Grade range: R3 / R3S / R4 / R4S / R5 as established reference grades → R6 and the supplied “RQ3” designation require confirmation against the selected class rule and factory approval.
• Manufacturing route: Rolled steel bar, hot forming, flash butt welding, and controlled heat treatment → welding and heat-treatment records are part of the approved manufacturing process.
• Testing scope: Proof load test, sample break load test, tensile and Charpy impact tests, dimensional inspection, visual inspection, and NDE → exact frequency and witnessing follow the selected class rule.
• Surface condition: Grit or shot blasting, with black paint or specified finish after acceptance → coating is not a substitute for project corrosion allowance, cathodic protection, or integrity management.
• Certification: Classification certification can be arranged through the approved manufacturer → certificate scope, survey attendance, traceability, and documentation must be agreed before order.

Main Technical Parameters

Materia Property

Mooring Chain Selection & Inquiry Guide

Step 1: Define the offshore application: FPSO, FSO, floating production unit, drilling unit, buoy, single-point mooring, temporary spread, or other floating structure; state design life, water depth, and chain segment location.

Step 2: Confirm nominal diameter, stud link or studless configuration, chain grade, required continuous length, number of chain lengths, and end link / accessory arrangement.

Step 3: Provide the project design basis or specified proof and break test loads. Break test load is a manufacturing acceptance value and must not be used as an operating SWL.

Step 4: Confirm corrosion allowance, coating requirement, cathodic-protection interface, seabed contact, wear zones, fatigue or out-of-plane bending assessment, and in-service inspection philosophy.

Step 5: Confirm classification society, applicable rule edition, approved manufacturer requirement, survey witnessing, NDE scope, marking, traceability, and documentation package.

Step 6: Provide quantity, delivery destination, required delivery time, packing / handling requirement, chain layout, interface drawings, and any approved vendor list or project specification.

Chain Configuration

Rolled alloy-steel bar | Hot-formed common links | Flash butt welded link closure | Stud link or studless geometry | Controlled heat treatment | End links / enlarged end links / connecting accessories to approved drawing | Traceable continuous chain lengths

Manufacturing, Testing & Supply Advantages

• Supply is coordinated through qualified chain factories, allowing the quotation to be aligned with approved diameter, grade, heat-treatment route, testing capacity, and classification scope.
• Flash butt welding closes the chain link itself; stud attachment, when used, is a separate detail and must follow the approved grade-specific construction and welding restrictions.
• Bar heating, flash-welding parameters, heat treatment, dimensional checks, and test results should remain traceable to the continuous chain length and certificate package.
• The complete chain length is proof loaded according to the applicable requirement, while break testing is performed on representative specimens at the prescribed sampling frequency.
• Visual inspection and NDE focus on link surfaces and the flash-weld region. MT, UT, or other approved methods, acceptance criteria, and survey witnessing are defined by the selected class rule.
• A higher material grade is not an automatic substitute for a lower grade. Manufacturer approval, material specification, link design, welding parameters, heat treatment, and tests are grade-specific.
• For permanent moorings, selection should address fatigue, corrosion loss, interlink wear, out-of-plane bending, seabed interaction, and integrity-management planning rather than tensile grade alone.
• Certificate wording and documentation are agreed before production, reducing the risk of mismatch between the purchase order, approved manufacturer scope, class survey plan, and final chain certificate.

Custom Attributes

• Supply Role: Offshore mooring chain trader and project supplier → chain manufacture, heat treatment, testing, and class survey are carried out by the approved chain factory.
• Reference Standard Basis: ISO 20438 and class-specific offshore mooring-chain requirements → final contract edition and class interpretation govern.
• Diameter Range: 34–200 mm → actual approved range depends on grade, link type, factory approval, and testing capacity.
• Link Type: Stud link / studless common link → project end links and accessories require approved interface drawings.
• Grade: R3 / R3S / R4 / R4S / R5 → R6 and supplied RQ3 naming remain subject to confirmation.
• Manufacturing Route: Hot forming + flash butt welding + heat treatment → process records should be included in the inspection dossier when required.
• Test Basis: Proof load + sample break load + mechanical testing + NDE → values and frequency follow the selected class rule and approved specification.
• Surface Finish: Blasted and black painted or as specified → corrosion allowance and cathodic protection remain system-design items.
• Documentation: Chain certificate, inspection and test reports, NDE reports, material traceability, markings, and manufacturing records → final list to be agreed in the purchase order.

How It Works

Environmental loads act on the floating unit → Mooring-line tension is transferred through each chain link → Chain geometry and the complete mooring system provide restoring force → End links and connectors transfer load to the anchor or mooring foundation → Inspection and integrity management monitor wear, corrosion, deformation, and fatigue throughout service

Applications

FPSO and FSO permanent moorings | Floating production units | Mobile offshore drilling units | Single-point mooring systems | Offshore loading systems | Offshore buoys | Floating offshore structures | Pre-laid mooring systems | Temporary offshore mooring spreads

Certifications & Documentation

Classification certification and survey documentation can be arranged according to project requirement, approved manufacturer scope, applicable rule edition, and class approval procedure. Certification is not assumed to be included unless it is stated in the quotation and purchase order.

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate.

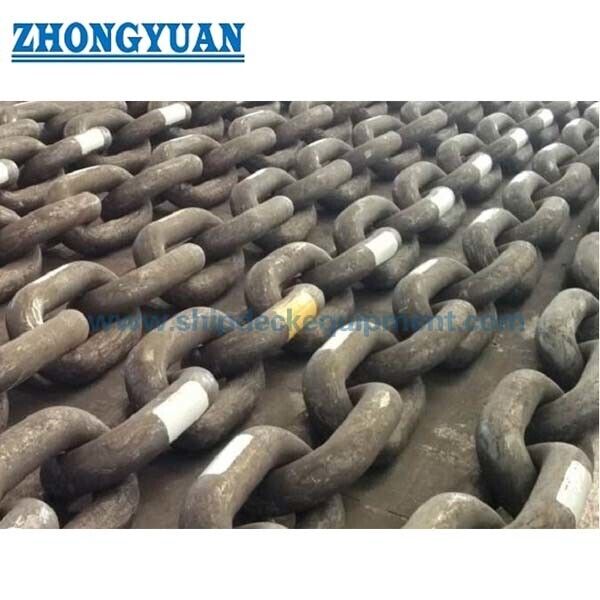

Drawing & Photos

FAQ

Q1: What is the main selection difference between stud link and studless offshore mooring chain?

A1: Studless chain is commonly considered for permanent mooring systems with a defined design life and installation plan. Stud link chain may be selected where handling stability, chain-wheel compatibility, or the approved project arrangement requires a studded geometry. The final choice must be made by the mooring designer and accepted by the selected classification society.

Q2: Can the published break load be treated as the chain operating capacity or SWL?

A2: No. Proof load and break test load are manufacturing and certification values. The allowable design tension is determined by the complete mooring-system analysis, limit-state criteria, design factors, fatigue assessment, corrosion allowance, chain condition, and applicable project standard.

Q3: What information is required for a class-certified quotation?

A3: Confirm the offshore unit type, design life, nominal diameter, link type, grade, continuous length, end-link and accessory arrangement, specified proof / break load basis, corrosion requirement, class society and rule edition, witnessing and NDE scope, document list, quantity, destination, and delivery schedule.
