Cylinder Type Tug Boat Rubber Fender Marine Rubber Fender
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Type: | CY | Applicable To: | All Kinds Ship And Dock Side |
|---|---|---|---|
| Certification: | CCS, BV, ABS And SGS | ||
| Highlight: | CY boat rubber fender,ABS boat rubber fender,rubber marine dock fenders |
||
Product Description

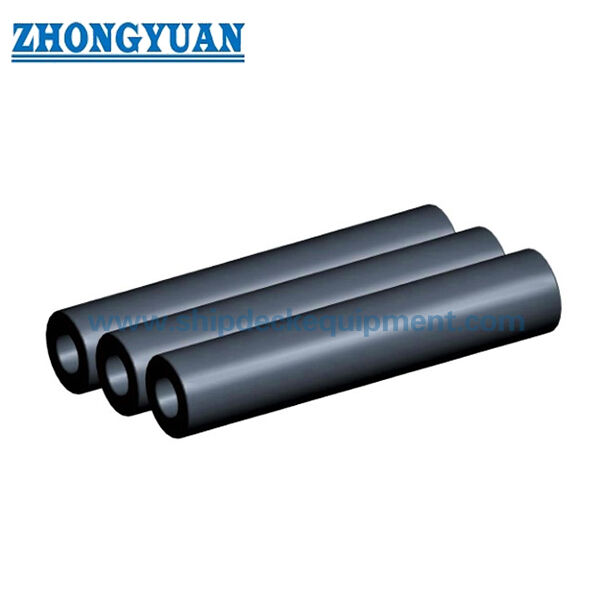

Cylinder Type Tug Boat Rubber Fender Marine Rubber Fender
Description:
CY type Rubber Fender are suitable for all kinds of ship and dock side. Production process is fully automatic winding the overall molding vulcanization and mechanical vehicle processing groove process. The workmanship makes the rubber fender has good & long-life performance, utility, easily installation. Our Rubber Fenders are made of high abrasion resistance rubber with good resilience properties for required applications. These fenders are easy to install and dismantle.
Application:
Type: CY
Applicable to all kinds ship and dock side.
The reaction force is large, and the energy absorption is moderate. Good wear resistance.
CCS, BV, ABS and SGS certification.
Main Technical Specifications:
1) Low reaction force, small face pressure, reasonable energy absorption.
2) Simple shape, easy to install and repair.
3) Not affected by the size of ships, docks, a wide range of uses.
4) The ship berthing cross-shake and vertical rocking adaptability.
5) Applicable to all kinds of ships, docks for suspension anti-flushing devices.
Main Technical Parameters:
| TYPE | OUTERDIA(D) | INNER DI A (d) | length of product | |
| CY150XL | 150 | 75 | 500-20000 | |
| CY200XL | 200 | 100 | ||
| CY300XL | 300 | 150 | ||
| CY400XL | 400 | 200 | ||
| CY500XL | 500 | 250 | ||
| CY600XL | 600 | 300 | ||
| CY700XL | 700 | 350 | ||
| CY800XL | 800 | 400 | ||
| CY900XL | 900 | 350 | ||
| CY1000XL | 1000 | 500 | ||
| CY11OOXL | 1100 | 550 | ||
| CY1200XL | 1200 | 600 | ||
| Main Technical Performance | ||||
| Type | Design compressive deflection | Performance | ||
| KN) Reaction Force |
Absorption Energy(KJ) |
Tolerance% | ||
| Standard Type | Standard Type | |||
| CY150X1000 | 50 | 44.1 | 1.5 | ±10 |
| CY200X1000 | 59.8 | 2.6 | ||
| CY250X1000 | 74.6 | 4.1 | ||
| CY300X1000 | 89.3 | 5.9 | ||
| CY400X1000 | 118.7 | 10.4 | ||
| CY500X1000 | 148.1 | 16.1 | ||
| CY600X1000 | 178.5 | 23.5 | ||
| CY700X1000 | 208 | 31.4 | ||
| CY800X1000 | 237.4 | 41.2 | ||
| CY900X1000 | 267.8 | 52 | ||
| CY1000X1000 | 297.2 | 63.8 | ||
| CY1100X1000 | 331 | 77.2 | ||
| CY 1200x1000 | 363 | 95.2 | ||
Drawing & Dimension of Cylinder Type Tug Boat Rubber Fender Marine Rubber Fender
