ISO 7061 Type B Aluminum Shore Gangway With Anti Slip Steps Marine Outfitting
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard：: | ISO 7061:2015 | Types:: | Type B Anti-slip Arc Steps Gangway; |
|---|---|---|---|
| Material:: | Aluminum | Step:: | Anti-slip Arc Steps; |
| Handrail Height:: | Not Less Than 1000 Mm Evenly Spaced; | Nominal Length:: | 2 M To 9 M In 0.5m Increments; Above 9 M In 1 M Increments; |
| Net Width:: | 600 Mm; | Usage Angle:: | 0-55°; |
| Design Load:: | 735 N On Every Step; | Surface Treatment:: | Anodic Oxidation Treatment; |
| Class Certificates:: | EU MED, EC Type Approval, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA. | ||
| High Light: | iso 7061 shore gangway,aluminum shore gangway,marine shore gangway |
||
Product Description
ISO 7061 Type B Aluminum Shore Gangway With Anti Slip Steps Marine Outfitting
Description:
ISO 7061 type B aluminum shore gangway with anti-slip steps is designed to be carried on board ships, to provide a lightweight, convenient and safe means of access from ship to shore, for use primarily by the ship’s crew. Anti-slip steps surface is designed directly as anti-slip arc step to position side stringers and support loading, the lower side of which is equipped with a guard board, with the maximum inclination degree of 55° from the horizontal. These gangways may also be used for access from ship to ship when conditions are favourable. The gangway body can be designed as one section, which can also be designed as two sections as required.
Main Technical Specifications:
- Standard: ISO 7061:2015;
- Types: Type B anti-slip arc steps gangway;
- Material: Aluminum;
- Step: anti-slip arc steps;
- Net Width: 600 mm;
- Handrail Height: not less than 1000 mm evenly spaced;
- Nominal Length: 2 m to 9 m in 0.5m increments; above 9 m in 1 m increments; Length is customized
- Usage Angle: 0-55°;
- Design Load: 735 N on every step;
- Surface Treatment: Anodic oxidation treatment;
- Class Certificates: EU MED, EC type approval, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| L (mm) | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 | 6500 | 7000 | 7500 | 8000 | 9000 | 10000 |
| Net Width (mm) | 600 | |||||||||||||
| Factor of safety | 2 on the 0,2 % proof stress of the aluminum alloy used | |||||||||||||
| Steps |
spaced at regular intervals of 300 mm to 400 mm longitudinally. a minimum height of 30 mm above the decking; hardwood steps shall have a minimum section width of 40 mm in contact with the decking |
|||||||||||||
| Stanchions | with a maximum permitted interval of 1 500 mm | |||||||||||||
|
Handrail and intermediate guides
|
Handrail and 2 intermediate guides a) continuous and adequately tensioned sisal, manila, polypropylene or plastics-covered wire rope, minimum rope diameter of 16 mm; b) continuous rigid aluminum solid or hollow section |
|||||||||||||
| Ladder length, L |
Ladder width |
Ladder frame height |
Distance between steps |
Ladder frame torsion resistance |
Flatness Hogging |
Flatness Sagging |
| L/1 000 | 土2,0 | 土2,0 | 土2,0 | 5 mm/10 m | 1,5L/1 000 | 1,0L/1 000 |

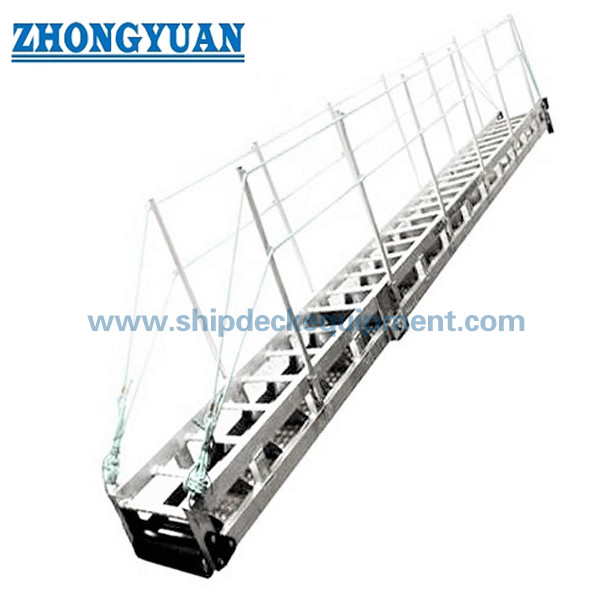

Drawing of ISO 7061 Type B Aluminum Shore Gangway With Anti Slip Steps Marine Outfitting
