ISO 7364 Pneumatic Motor Driven Marine Accommodation Ladder Winch Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Standard:: | ISO 7364:2016 | Type:: | Pneumatic Single Drum And Split Drum; |
|---|---|---|---|
| Factory Testing:: | Running Test Without Load, Drum Load Test, Static Test Under 1,5 Holding Load; | Working Load:: | 10KN, 16KN, 20KN |
| Speed(m/min):: | 9-20m/Min | Wire Rope: | 6*37-13.0-170-1; |
| Material:: | Mild Steel, | Control:: | Local Control |
| Classification Certificates:: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc. | ||
| High Light: | iso 7364 accommodation ladder winch,pneumatic motor accommodation ladder winch,marine accommodation ladder winch |
||
Product Description

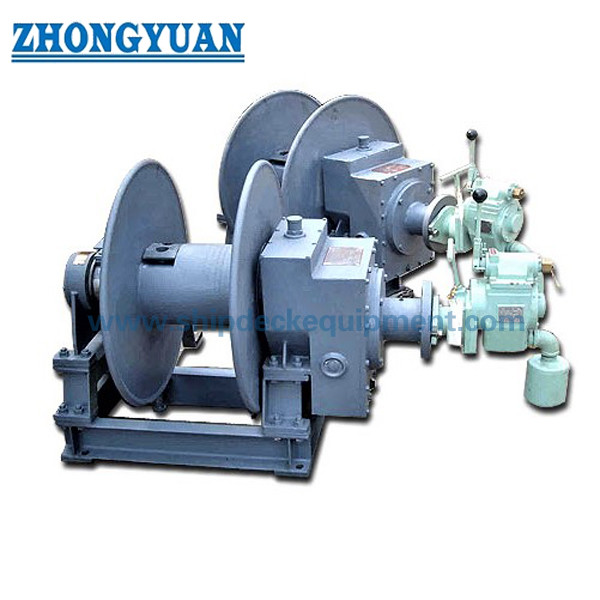

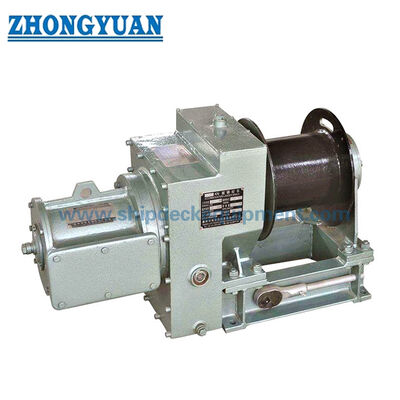

ISO 7364 Pneumatic Motor Driven Marine Accommodation Ladder Winch Ship Deck Equipment
Description:
ISO 7364 pneumatic motor driven marine accommodation ladder winch mainly used for lowing and hoisting the aluminum accommodation ladders. This winch is satisfied with latest international standard ISO7363, it is of compact structure equipped with explosive proof pneumatic motor, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case without compress air.
We can produce winches provided with hydraulic, pneumatic, electric or manual drive. Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment.
Main Technical Specification:
- Standard: ISO 7364:2016
- Working Load: 10, 16, 20KN;
- Type: Pneumatic Single Drum and split drum;
- Speed(m/min):9-20m/Min
- Factory Testing: Running test without load, Drum load test, Static test under 1,5 holding load;
- Wire Rope Specification: 6*37-13.0-170-1;
- Material: Mild Steel,
- Power: Pneumatic;
- Control: Local Control
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
Main Technical Parameters:
| NAME | UNIT | SPECIFICATION | |
| Air Motor | Type | / | TMYJ4.4-4 |
| Power | Kw | 4.4 | |
| Rated Revolution | rpm | 800 | |
| Working Pressure | Mpa | 0.59 | |
| Air Consumption | m3/min | 5.2 | |
| Duty Factor | min | 30 | |
| Total Efficiency | / | 0.858 | |
| Manual Transmission Ratio | / | 30.73 | |
| Air Transmission Ratio | / | 75.43 | |
| Wire Rope Size | / | 6*37-13-170-1 | |
| Wire Capacity | m | 40 | |
| Winding Wire Layers on Drum | / | 3 | |
| Hoisting Speed | m/min | 8 | |
| Support Load | KN | 30 | |
| Drum Load | KN | 10 | |
| Type | Overall and Mounting Dimensions | ||||
| LXBXH | C | C1 | E | n-ØA | |
| 10KN | 1030X340X570 | 470 | 235 | 300 | 6-Ø17 |
| 12KN | 1120X380X680 | 455 | 265 | 320 | 6-Ø17 |
| 16KN | 1130X380X680 | 530 | 265 | 320 | 6-Ø17 |
Drawing of ISO 7364 Pneumatic Motor Driven Marine Accommodation Ladder Winch Ship Deck Equipment
