ISO 7364 Split Drum Pneumatic Motor Driven Aluminum Pilot Ladder Winch Ship Deck Equipment

ISO 7364 Split Drum Pneumatic Motor Driven Aluminum Pilot Ladder Winch Ship Deck Equipment

Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information

Standard:: ISO 7364:2016 Type:: Pneumatic Split Drum;
Factory Testing:: Running Test Without Load, Drum Load Test, Static Test Under 1,5 Holding Load; Working Load:: 10KN, 16KN, 20KN
Speed(m/min):: 9-15m/Min Wire Rope: 6*37-13.0-170-1;
Material:: Mild Steel, Control:: Local Control
Classification Certificates:: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
Highlight:

iso 7364 pilot ladder winch

,

split drum pilot ladder winch

,

pneumatic motor driven pilot ladder winch

Product Description

ISO 7364 Split Drum Pneumatic Motor Driven Aluminum Pilot Ladder Winch Ship Deck Equipment



Description:

ISO 7364 split drum pneumatic motor driven aluminum pilot ladder winch mainly used for lowing and hoisting the aluminum pilot ladders. it is of compact structure equipped with explosive proof pneumatic motor, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case without compress air. This winch is satisfied with latest international standard ISO7363, Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment. We can produce winches provided with hydraulic, pneumatic, electric or manual drive.



Main Technical Specification:

  1. Standard: ISO 7364:2016
  2. Working Load: 10, 16, 20KN;
  3. Type: Pneumatic split drum;
  4. Speed(m/min):9-15m/Min
  5. Wire Rope Specification: 6*37-13.0-170-1;
  6. Material: Mild Steel,
  7. Factory Testing: Running test without load, Drum load test, Static test under 1,5 holding load;
  8. Control: Local Control
  9. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.



Main Technical Parameters:

Nominal
size

Drum

load(a)
kN

Holding

load (a)
kN

Winch load test procedure

Steel wire

rope diameter
actually selected

(d)
mm

Minimum rope

strength(a)
(5x holding load)

KN

Steel wire

rope diameter

(b,c)
mm

Single
drum
Split drum or
double drum
5 5 15 75 12 11 -
6 6,3 18 90 13 11 -
8 8 25 125 16 13 -
10 10 30 150 18 13 13
12 12,5 37,5 188 20 13 13
16 16 48 240 22 14(15) 14(15)
20 20 60 300 24 16(15) 16(15)
25 25 75 375 26 - 16
30 30 90 450 28 - 16
NOTE Choose the actual steel wire rope diameter of winches according to the following case that the breaking load of steel wire rope shall be not less than five times the actual holding load of accommodation ladder winches.
a For winches working with two ropes, the listed values arc the sum of the forces on each rope.
b In column 4, based on a holding load safety factor of five, all values shall be selected in winch load test.
C The rope diameter given in column 4 is used only for static load test of winches with one rope accordingly.
d The rope diameter in bracket s means that these values are included in national standard specifications.

NAME UNIT SPECIFICATION
Air Motor Type / SMF-5.5P-900S
Power Kw 4
Rated Revolution rpm 900
Working Pressure Mpa 0.59
Air Consumption m3/min 6
Duty Factor min 30
Total Efficiency / 0.858
Manual Transmission Ratio / 30.73
Air Transmission Ratio / 75.43
Wire Rope Size / 6*37-13-170-1
Wire Capacity m 50
Winding Wire Layers on Drum / 3
Hoisting Speed m/min 10
Support Load KN 48
Drum Load KN 16

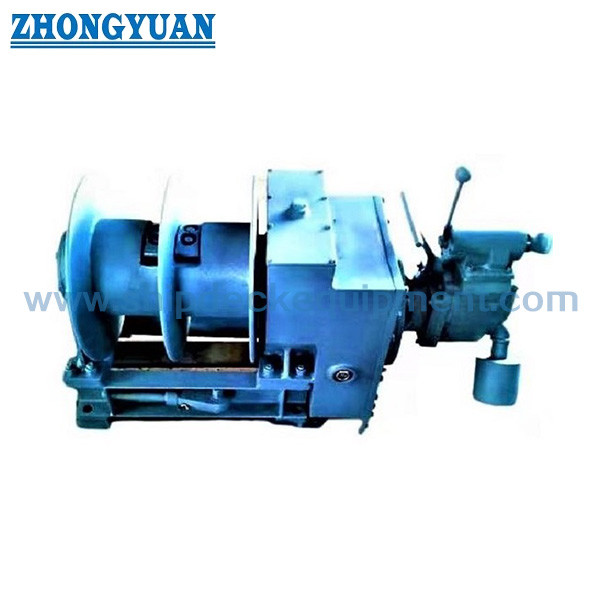

ISO 7364 Split Drum Pneumatic Motor Driven Aluminum Pilot Ladder Winch Ship Deck Equipment 0

Drawing of ISO 7364 Split Drum Pneumatic Motor Driven Aluminum Pilot Ladder Winch Ship Deck Equipment



ISO 7364 Split Drum Pneumatic Motor Driven Aluminum Pilot Ladder Winch Ship Deck Equipment 1
