JIS F2031 Roller Pawl Type Chain Cable Stopper Ship Mooring Equipment

JIS F2031 Roller Pawl Type Chain Cable Stopper Ship Mooring Equipment

Product Details:

Place of Origin: China
Brand Name: Zhongyuan
Certification: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number: Standard and Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: As per quotation
Packaging Details: Pallet or Customized
Delivery Time: As per offer
Payment Terms: TT, L/C, Etc.
Supply Ability: Satisfy clients needs
Get Best Price Contact Now

Detail Information
Technical Standard: JIS F2031-1998 Type: Roller Pawl Type
Chain Size: 70-132 Mm Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,
Surface Treatment: Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Customized Surface Treatment Available. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Others: Can Be Customized As Shipyard Request Weight401 To 2900kg;: 932 To 4840 Kg
Nominal Size:: 73 - 132

Product Description

JIS F2031 Roller Pawl Type Chain Cable Stopper



Description:

JIS F2031 Roller Pawl Type Chain Cable Stopper is mounted by welding on the foundation or on the forecastle deck.it can clamp the anchor chain when ship sails or drops anchor. It helps to reduce the working load of windlass, letting the windlass out of the pull from anchor



Main Technical Specification;

  1. Technical Standard: JIS F2031-1998
  2. Type: Roller pawl type
  3. Chain Size: 70-132mm
  4. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,
  5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
  6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
  7. Can be Customized



Main Technical Parameter:

NO. Diameter of apply Anchor Chain Side frame of body
B b b1 b2 b3 b4 b5 L l l1 l2 l3 d3 d4 h h1 h2 h3 h4
73

70

73

 980 118 400 376 114 79 153 660 241 90 292 94 88 141 125 422 292 146 153
78

76

78

 1040 126 425 399 121 84 162 700 254 95 312 100 94 150 133 450 312 156 164
84

81

84

 1110 136 454 426 130 89 174 760 279 103 328 106 100 160 143 483 336 164 176
90

87

90

 1190 146 484 454 139 96 186 810 295 110 360 110 107 171 153 515 360 180 189
95

92

95

 1250 154 508 476 146 101 195 860 317 116 380 118 113 181 162 545 380 190 200
102

97

102

 1320 165 540 506 155 108 207 920 337 124 408 125 121 195 175 584 408 204 214
107

105

107

 1390 173 569 533 162 115 219 981 364 131 432 131 129 207 185 617 432 216 226
114

111

114

 1460 184 598 560 171 122 228 1026 376 138 456 138 136 218 195 651 456 228 240
122

117

122

 1550 197 632 592 182 129 243 1100 408 149 488 146 144 231 208 695 488 244 256
132

127

132

 1660 213 674 632 195 139 261 1190 441 161 528 155 155 249 225 750 528 264 277

NO. Side frame of body Roller Pawl axle Roller axle Bush Washer Leg of weld Reference
r r1 r2 r3 r4 r5 t t1 t2 D d l6 d2 l7 t3 d1 t4 f Calculated mass(kg)
73 14 111 124 73 37 310 44 37 22 584 116 640 87 595 8 117 8 15 932
78 15 119 132 78 39 332 47 39 23 624 123 680 93 630 10 124 8 15 1120
84 17 126 143 84 42 357 50 42 25 672 131 720 99 665 10 132 8 17 1370
90 18 133 153 90 45 382 54 45 27 720 139 770 106 710 10 140 10 18 1660
95 20 141 161 95 46 404 57 48 28 760 146 810 112 740 10 147 10 19 1940
102 21 149 173 102 51 434 61 51 30 816 156 860 120 785 10 157 10 20 2340
107 23 156 184 108 54 460 65 54 32 864 163 900 128 825 10 164 15 21 2740
114 24 163 194 114 57 485 68 58 34 912 172 940 135 865 10 173 15 23 3190
122 25 172 207 122 61 518 74 61 37 976 182 995 143 910 10 183 15 25 3840
132 28 182 224 132 66 550 80 66 40 1056 194 1060 154 970 10 195 15 26 4840

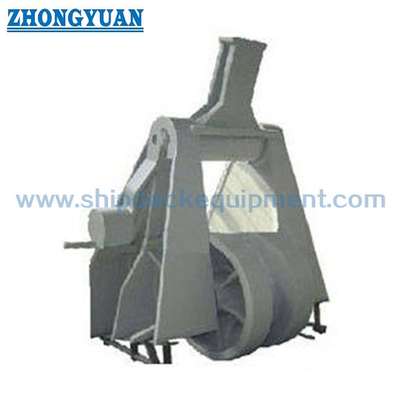

JIS F2031 Roller Pawl Type Chain Cable Stopper Ship Mooring Equipment 0

Drawings of JIS F2031 roller pawl type chain cable stopper

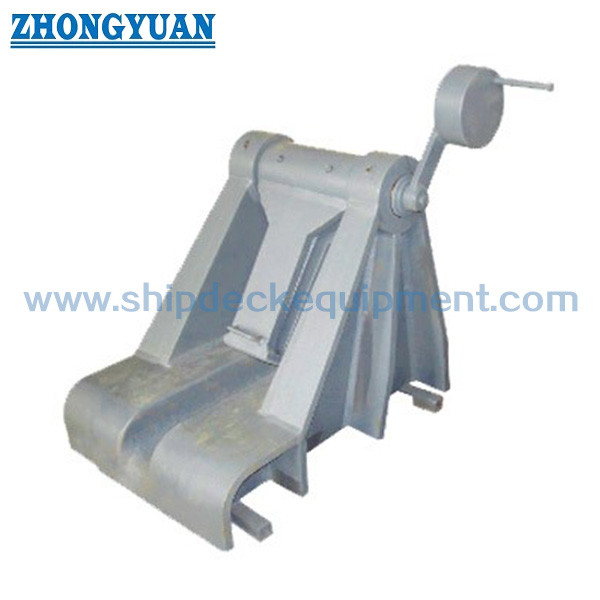

JIS F2031 Roller Pawl Type Chain Cable Stopper Ship Mooring Equipment 1

JIS F2031 Roller Pawl Type Chain Cable Stopper Ship Mooring Equipment 2
