13–56mm Steel Wire Rope Storage Reel with Brake | CB/T 3468-92 Type B for Ship Deck
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
| Document: | Marine Rope Reel Manual Dri...92.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Material: | 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel | Applicable Steel Wire Diameter: | 13.0~56mm |
|---|---|---|---|
| Drum Storage Capacity Of Steel Wire Length: | 120~300m | Foot Bolts Quantity: | 6~14 |
| Highlight: | Mooring CB/T 3468-92 steel wire reel,CB/T 3468-92 steel wire reel,CB/T 3468-92 Ship Deck Equipment reel |
||
Product Description

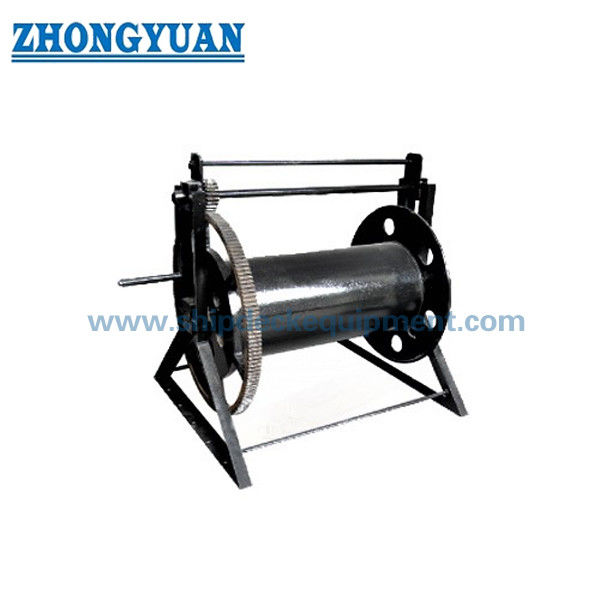

13–56mm Steel Wire Rope Storage Reel with Brake | CB/T 3468-92 Type B for Ship Deck
Product Overview
CB/T 3468-92 Type B steel wire rope storage reel is designed for safe storage and management of marine steel wire ropes.
Equipped with manual brake, worm gear reducer and hand wheel operation, it allows controlled winding and unwinding of wire rope.
The drum diameter is designed according to wire rope diameter to reduce bending stress and extend rope service life.
Suitable for onboard rope storage applications where controlled handling and protection of steel wire rope are required.
Quick Specifications
- Wire Rope Diameter: 13–56 mm → Defines rope compatibility
- Capacity: 120–300 m → Defines storage length
- Type: CB/T 3468-92 Type B → Marine standard compliance
- Drive: Manual hand wheel → Safe and simple operation
- Brake: Manual brake → Ensures controlled stopping
- Gear: Forged gear with hardened surface → Improves durability
- Drum Design: Diameter optimized → Reduces rope damage
- Structure: Weight-reduced gear wheel → Maintains strength while reducing weight
- Lubrication: All moving parts lubricated → Ensures smooth operation
- Installation: Bolted base → Easy installation
Main Technical Parameters
| Description | Type | No |
Wire Rope Diameter (mm) |
Drum Rope Capacity (m) |
| Type B Steel Wire Reel | B | B39 | 39 | 210 |
| B48 | 47.5 | 230 |
Selection Guide
Step 1 – Select Rope Diameter → 13–56 mm based on wire rope
Step 2 – Confirm Storage Length → 120–300 m requirement
Step 3 – Confirm Drum Diameter → Matched to rope to reduce bending stress
Step 4 – Confirm Operation Method → Manual hand wheel with brake
Step 5 – Confirm Installation → Bolted base arrangement
Step 6 – Confirm Coating Requirement → Shop primer or customized paint
Structure & Components
Drum | Worm gear reducer | Forged gear | Manual brake | Hand wheel | Shaft | Base frame
Custom Attributes
- Rope Diameter: 13–56 mm → Compatibility
- Capacity: 120–300 m → Storage
- Gear: Forged & hardened → High durability
- Lubrication: Full lubrication → Smooth operation
- Drum Design: Optimized → Protects wire rope
- Weight Design: Lightened gear → Reduced weight
- Installation: Bolted → Easy fixing
- Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Inquiry Guide
Please provide rope diameter, required capacity, installation condition, and paint requirement.
How It Works
The rope is wound onto the drum through manual rotation of the hand wheel. The worm gear mechanism provides torque control, while the brake ensures safe stopping and holding.
Applications
Ship deck rope storage | Steel wire rope management | Offshore equipment support
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; forged and hardened gear, optimized drum design, reduced rope wear, reliable manual operation.
Drawing & Photos
General arrangement drawing | Product photos
Ordering
MOQ: 1 Unit | Delivery Time: 30–60 Days | Please confirm paint requirement when ordering
