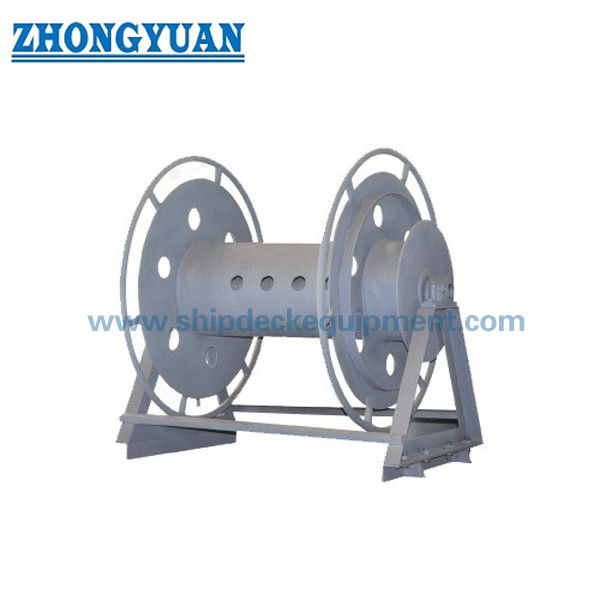

Manual Operate Bond Cable Reel CB*875-78
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan |
| Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
| Document: | Marine Rope Reel Manual Dri...92.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C, Etc. |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Model Type: | A28, B16, B22,C36,C44 | Cable Diameter: | 27.6~44mm |
|---|---|---|---|
| Drum Storage Capacity Of Steel Wire Length: | 150~230m | Foot Bolts Quantity: | 6~14 |
| Material: | 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel | ||
| Highlight: | Light Weight Bond Cable Reel |
||
Product Description
Manual Operate Bond Cable Reel CB*875-78
Description
CB*875-78 bond cable reel is used to store ship grounding cables.
Main Technical Specifications:
1. Applicable to Store bond cables;
2. Model Type: A28, B16, B22,C36,C44;
3. Cable Diameter:27.6~44mm;
4. Drum Storage Capacity of Steel Wire Length: 150~230m;
5. Foot Bolts Quantity: 6~14;
6. Material: 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel.
7. Smooth Surface without Burrs, Cracks, Sharp Corners etc.
8. Shaft Lubricated;
9. Sa2.5 Sandblasting and Anti-corrosive epoxy Painting;
11. Meet Customer’s Special Requirements;
Main Technical parameters:
| Type | Name | Model | Applicable Cable | Remark | |
| Cable Diameter (mm) |
Max. Length of Cable (L) m | ||||
| A |
Cable Reel with Electric Current Loop |
A28 | 27.6 | 150 |
CHF R Cable 3x25 50A below |
| B | Handle Type Cable Reel | B16 | 12.7 | 125 | |
| 16 | 100 | ||||
| B22 | 20.3 | 200 | |||
| 22.6 | 180 | ||||
| C | Hand Wheel Type Cable Reel | C36 | 28 | 220 | |
| 36 | 180 | ||||
| C44 | 38 | 230 | |||
| 44 | 200 | ||||
Drawing of Type A cable reel with electric current loop
Drawing of Type B handle type cable reel
Drawing of Type C hand wheel cable reel
