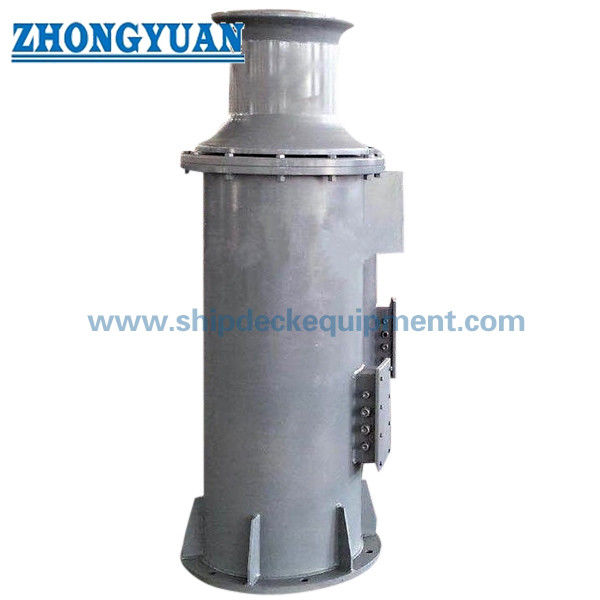

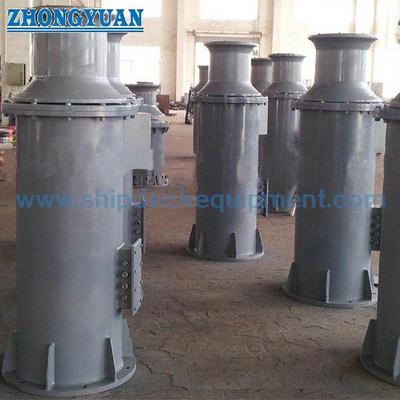

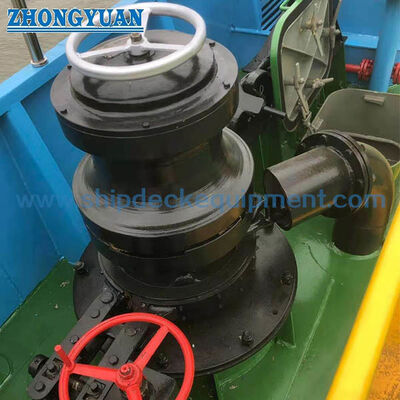

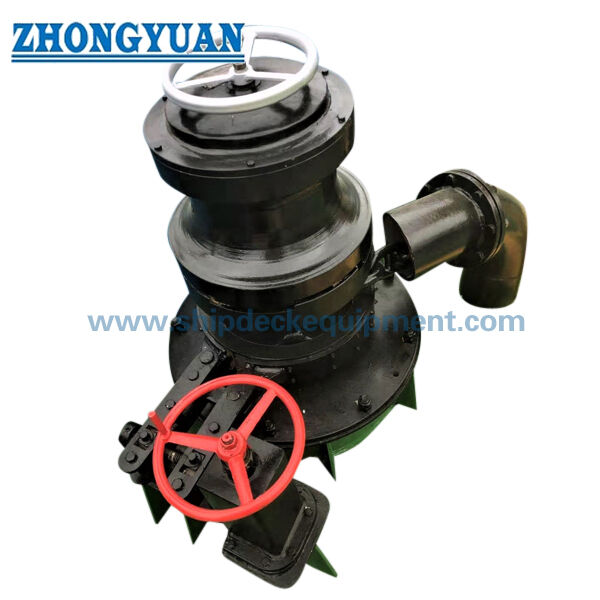

Deck Stand Vertical Electric Mooring Capstan for Barge Ship Deck Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Function: | Mooring & Hoisting Anchor | Working Load: | 5KN To 250KN |
|---|---|---|---|
| Warping Head Diameter: | 200-700 Mm | Warping Speed(m/min): | 9-18m/Min |
| Wire Rope Dia: | 11 - 46 (mm) | Material: | Stainless Steel (Polished), Mild Steel，Casting |
| Power: | Electric | Control: | Local Or Remote Control |
| Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc | ||
| Highlight: | 250KN 18m/Min Electric Mooring Capstan,18m/Min Electric Mooring Capstan,ship mooring capstan 18m/Min |
||
Product Description
12.5–38mm Deck Stand Vertical Electric Mooring Capstan | 6–70kN Ship Mooring & Anchor Handling Equipment
Product Overview
A deck stand vertical electric mooring capstan is designed for both rope mooring and anchor chain handling operations on ship decks.
It is driven by an electric motor through a gearbox, providing stable torque output and reliable performance under marine conditions.
The vertical deck-mounted structure is ideal for limited deck space and is optimized for 12.5–38 mm anchor chain range, ensuring matching working load and safe operation.
Quick Specifications
• Anchor Chain Size: 12.5–38 mm
• Rope Diameter: 25–50 mm
• Working Load: 6.6–69 kN
• Warping Head Diameter: 250–500 mm
• Warping Speed: 9–18 m/min
• Drive Type: Electric
• Control: Local / Remote
• Material: Carbon Steel / Stainless Steel
• Surface Treatment: Sa2.5 + Epoxy Coating
• Working Temperature: -40°C to +50°C
Main Technical Parameters
|
Chain Dia. (mm) |
Working Load (KN) | Nominal Speed (m/min) ≥ | Warping Load (KN) | Motor Power (KW) | ||
| AM2 | AM3 | Electric | Hydraulic | |||
| 12.5 | 6.6 | 14.6 | 9 | 5 | 2.2/0.75 | 2.2 |
| 14 | 8.3 | 17.2 | 9 | 6 | 2.2/0.75 | 3 |
| 16 | 10.9 | 20 | 9 | 8 | 2.2/0.75 | 4 |
| 17.5 | 13 | 14.6 | 9 | 10 | 3/1.3 | 4/5.5 |
| 19 | 15.3 | 17.2 | 9 | 10 | 4.3/1.7 | 5.5 |
| 20 | 17.9 | 20 | 9 | 15 | 4.3/1.7 | 5.5/7.5 |
| 22 | 20.6 | 23 | 9 | 15 | 6/2.5 | 7.5 |
| 24 | 24.5 | 27.4 | 9 | 20 | 8.5/3.5 | 7.5/11 |
| 26 | 28.7 | 32.1 | 9 | 20 | 8.5/3.5 | 11 |
| 28 | 33.3 | 37.2 | 9 | 25 | 8.5/3.5 | 11 |
| 30 | 38.3 | 42.8 | 9 | 30 | 11/11/7.5 | 15 |
| 32 | 43.5 | 48.6 | 9 | 30 | 11/11/7.5 | 15 |
| 34 | 49.1 | 54.9 | 9 | 40 | 16/16/11 | 15/8.5 |
| 36 | 55.1 | 61.6 | 9 | 40 | 16/16/11 | 18.5 |
| 38 | 61.4 | 68.9 | 9 | 50 | 16/16/11 | 18.5/22 |
Capstan Selection Guide
Step 1 – Select Anchor Chain Size (12.5–38 mm)
Step 2 – Match Working Load (6–70 kN)
Step 3 – Select Rope Diameter (25–50 mm)
Step 4 – Select Warping Speed (9–18 m/min)
Step 5 – Confirm Motor Power based on load
Step 6 – Select Control Type (Local / Remote)
Structure & Components
Structure & Components: Electric motor | Gearbox transmission system | Vertical shaft | Warping head | Brake system | Control panel | Deck stand base
Custom Attributes
Anchor Chain Size: 12.5–38 mm
Working Load: 6.6–69 kN
Rope Diameter: 25–50 mm
Drive Type: Electric
Control Type: Local / Remote
Mounting Type: Deck Stand Vertical
Material: Carbon Steel / Stainless Steel
Custom Configuration & Inquiry Guide
✔ Anchor Chain Size (mm)
✔ Working Load (kN)
✔ Rope Diameter (mm)
✔ Speed (m/min)
✔ Drive Type
✔ Control Type
✔ Installation Type
→ Send above information for selection, drawing and quotation.
How It Works
The electric motor drives the gearbox, rotating the vertical shaft and warping head to handle rope or anchor chain safely.
The brake system ensures controlled operation and safe load handling.
Applications
Applications: Ship mooring operations | Anchor chain handling | Offshore vessels | Barges and cargo ships | Port and harbor operations
Certifications & Advantages
Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS
Advantages: Matched load design | Stable electric drive | Compact vertical structure | Easy installation | Low maintenance
Drawing & Photos
• General arrangement drawing
• Structure drawing
• Installation layout
• Product photos
• Application photos
Ordering Information
MOQ: 1 Unit
Delivery Time: Based on project
Payment: T/T, L/C
Customization: Available
FAQ
Q1: How to select the correct capstan?
A: Based on chain size, working load, and operating conditions.
Q2: Can it be customized?
A: Yes, configuration and structure can be customized.
Q3: Is remote control available?
A: Yes, optional remote control can be provided.
