Casting Steel Bolted Type Mooring Kevel Ship Mooring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipmen |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate |
| Model Number: | Standard or Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Based on quotation |
| Packaging Details: | Export standard pallet or customized packing |
| Delivery Time: | Based on project requirements |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Customized production based on project requirements |
|
Detail Information |
|||
| Technical Standard: | GB 2026 | Rope Diameter: | ⌀35, ⌀50, ⌀70mm |
|---|---|---|---|
| Weight: | 1.33 To 11.2kg | Materials: | Casting Copper, Casting Bronze, Casting C-Mn Steel, Casting Stainless Steel, Nodular Cast Iron |
| Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Galvanized, Polished, Customized Surface Treatment Available | Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, Etc |
| Highlight: | Casting Steel Mooring Kevel,Ship Mooring Equipment,Bolted Type Mooring Kevel |
||
Product Description

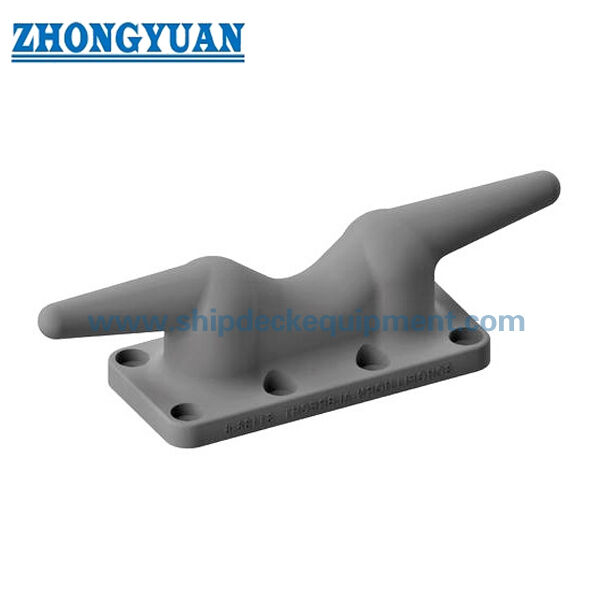

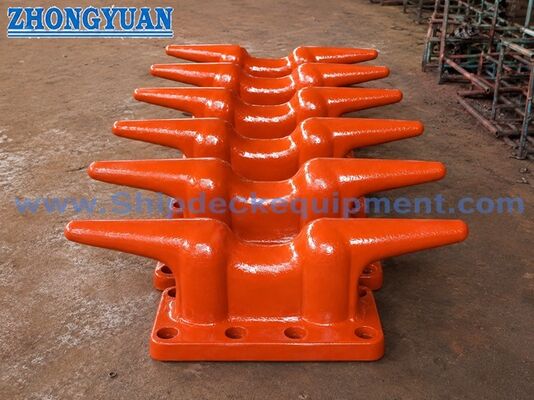

Casting Steel Bolted Type Mooringl Kevel Ship Mooring Equipment
Description:
Casting Steel bolted type mooring kevel is used in workboat berths and marines around the world. They are created with the same care,modern design methods and choice of materials as their larger cousins. Cast iron bollard and cast steel bollard arewidely used around the world.
Main Technical Specification:
1. Technical Standard: GB 2026
2. Rope Diameter: ⌀35, ⌀50, ⌀70mm
3. Weight: 1.33 to 11.2kg
4. Materials: Casting Copper, Casting Bronze, Casting C-Mn Steel, Casting Stainless Steel, Nodular Cast Iron
5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
7. Can be Customized
Main Technical Parameter:
| Maximum Diameter of Hemp Rope |
L | L1 | L2 | A | A0 | B | B1 | B2 | B3 | H | H1 | H2 | H3 | δ | r | r1 | r2 | r3 | Weight Kg |
Material |
| 35 | 200 | 120 | 71 | 56 | 88 | 88 | 56 | 32 | 30 | 50 | 41 | 16 | 9 | 7 | 16 | 12 | 8 | 9 | 1.33 | Cast copper |
| 50 | 330 | 200 | 114 | 90 | 150 | 140 | 90 | 50 | 46 | 76 | 63 | 23 | 10 | 8 | 25 | 20 | 12 | 15 | 3.57 | |
| 75 | 440 | 250 | 160 | 110 | 190 | 170 | 110 | 64 | 60 | 95 | 80 | 27 | 11 | 9 | 30 | 25 | 16 | 18 | 8.45 | |
| 30 | 200 | 120 | 65 | 56 | 88 | 88 | 56 | 32 | 30 | 53 | 44 | 19 | 12 | 10 | 16 | 12 | 8 | 9 | 1.7 | Cast steel |
| 50 | 330 | 200 | 106 | 90 | 150 | 140 | 90 | 50 | 46 | 80 | 67 | 27 | 14 | 12 | 25 | 20 | 12 | 15 | 5.9 | |
| 75 | 440 | 250 | 150 | 110 | 190 | 170 | 110 | 64 | 60 | 100 | 85 | 32 | 16 | 14 | 30 | 25 | 16 | 18 | 11.2 |
Drawing of Casting Steel Stainless Steel Bolted Type Mooringl Kevel Ship Mooring Equipment
