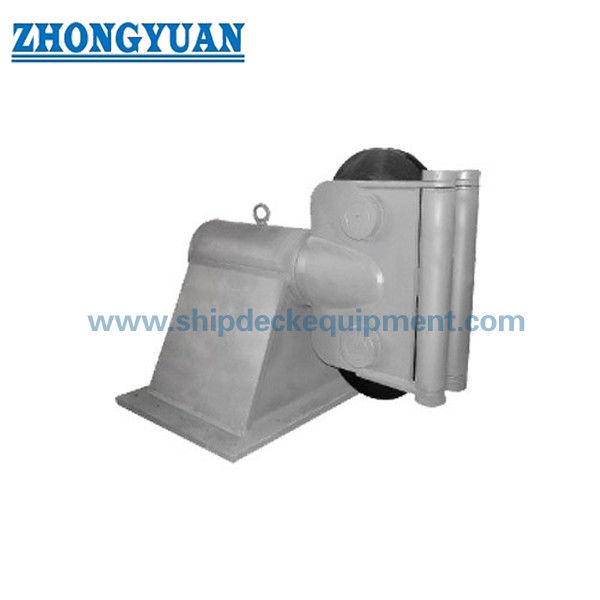

20–76mm 360° Swivel Head Fairlead | Rotating Casting Steel Fairlead for Ship Mooring & Towing
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhongyuan Marine Equipment |
| Certification: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number: | Standard and Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | As per quotation |
| Packaging Details: | Pallet or Customized |
| Delivery Time: | As per offer |
| Payment Terms: | TT, L/C |
| Supply Ability: | Satisfy clients needs |
|
Detail Information |
|||
| Model Type: | 360 Degree Swivel Fairlead | Max. Rope Diameter: | 20mm~76mm |
|---|---|---|---|
| Breaking Strength: | 32~200MT | Rotation Angle: | Sheave 90°warp, Swivel Head±90° |
| Materials: | C-Mn Steel, Mild Steel, Stainless Steel | Surface Treatment: | Sandblasting To S2.5 + One Layer Of Epoxy Shop Primer, Polished Stainless Steel, Customized Surface Treatment Available. |
| Classification Certificates: | CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA | ||
| Highlight: | 360 Degree Swivel Head Fairlead,Swivel Head Fairlead,360 Degree Ship Towing Equipment |
||
Product Description
20–76mm 360° Swivel Head Fairlead | Rotating Casting Steel Fairlead for Ship Mooring & Towing
Product Overview
360-degree swivel head fairlead is designed for guiding and redirecting mooring and towing ropes with flexible orientation.
The swivel head allows rotation to accommodate changing rope lead angles, reducing friction and improving rope alignment.
It is widely used on tugboats, offshore platforms, engineering vessels and mooring systems requiring dynamic rope direction control.
Quick Specifications
Rope Diameter: 20–76 mm → Defines applicable rope size
Breaking Strength: 32–200 MT → Indicates structural capacity
Rotation: Sheave 90° + Swivel Head ±90° → Multi-direction rope guiding
Structure: Swivel head + sheave → Dynamic rope alignment
Material: C-Mn Steel / Casting Steel → High strength
Surface: Sa2.5 + epoxy coating → Corrosion protection
Application: Mooring & towing → Dynamic rope control
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate
Main Technical Parameters
| Wire Dia. (mm) | A | B | H | Φ |
| 20 | 400 | 425 | 350 | 250 |
| 25 | 400 | 425 | 360 | 250 |
| 32 | 600 | 600 | 376 | 320 |
| 38 | 760 | 760 | 489 | 400 |
| 44 | 880 | 880 | 580 | 500 |
| 52 | 1120 | 1250 | 700 | 600 |
| 60 | 1120 | 1350 | 720 | 620 |
| 68 | 1210 | 1450 | 780 | 680 |
| 76 | 1250 | 1500 | 870 | 780 |
Selection Guide
Step 1 – Select rope diameter → Based on wire size
Step 2 – Confirm load requirement → Based on breaking strength
Breaking strength represents the structural capacity of the fairlead and should be properly matched with the rope’s breaking load for safe selection.
Step 3 – Confirm rotation requirement → Swivel angle needed
Step 4 – Confirm installation location → Deck or structure
Step 5 – Confirm certification requirement
Structure
Swivel Head | Sheave | Bracket | Pin Shaft | Base
Why Swivel Head Design?
Allows rope to follow changing direction → Reduces side load
Improves rope alignment → Prevents twisting and uneven tension
Reduces friction → Extends rope service life
Swivel mechanism is designed to reduce side load on the sheave and prevent uneven wear of the rope.
Custom Attributes
360° swivel capability → Flexible rope direction
Heavy-duty structure → Suitable for towing loads
Smooth sheave surface → Protects rope
High-strength materials → Long service life
Stable base mounting → Secure installation
Inquiry Guide
Please provide rope diameter, load requirement, swivel angle, installation condition and certification requirement.
How It Works
The rope passes over the sheave while the swivel head rotates to align with the rope direction, reducing side forces and ensuring smooth operation.
Applications
Tugboats | Offshore platforms | Mooring systems | Towing operations
Certifications & Advantages
Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate → Ensures compliance with major classification societies

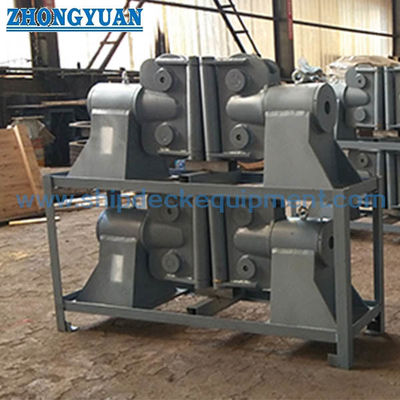

Drawing & Photos
General arrangement drawings and product photos available
Ordering
MOQ: 1 Unit | Delivery: 30–60 days | Customization available
FAQ
Q1: Why use swivel fairlead?
A: To accommodate changing rope direction and reduce side load.
Q2: How to select size?
A: Based on rope diameter and breaking strength.
Q3: Can it rotate fully?
A: Swivel head allows ±90° rotation depending on design.
